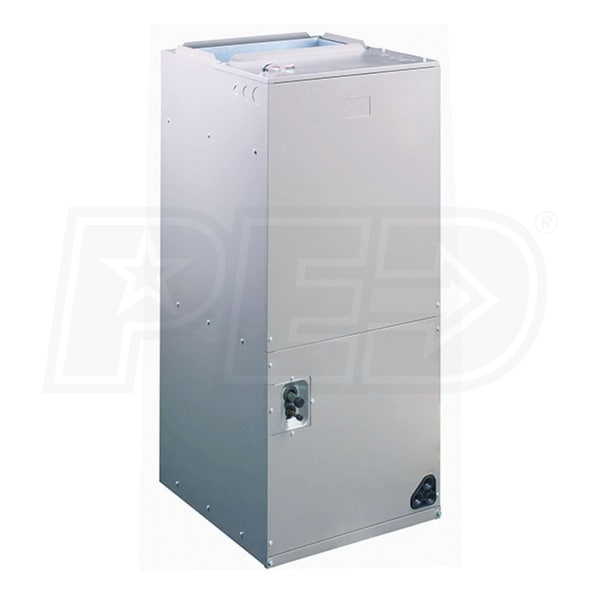

Ameristar M4AH4 - 3 Ton - Air Handler - Multi-Position - PSC Motor

Model:

M4AH4036A1000A

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Ameristar M4AH4 - 3 Ton - Air Handler - Multi-Position - PSC Motor
Ameristar M4AH4 - 3 Ton - Air Handler - Multi-Position - PSC Motor
Model: M4AH4036A1000A
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Ameristar specializes in providing homeowners with superior comfort at an incredible value. Unfortunately, the best Ameristar condenser can't heat or cool your home on its own. That's where the M4AH3 air handler comes in. Ameristar's exceptional evaporator coil design comes together with a three speed blower to provide your central HVAC system with efficient heat transfer and effective air distribution. With a design that makes it easy to install and easy to service, the M4AH4036A1000A doesn't just bring comfort to your home, but convenience as well.
  • Energy Efficient Coil Design
  • The M4AH4036A1000A's coil is designed with aluminum fins and grooved copper tubing to maximize the coil's surface area and heat transfer efficiency.
  • Adaptable to Your Application
  • Ameristar air handlers can be installed in upflow, downflow, or horizontal airflow applications, making them a perfect fit for nearly any home.
  • Insulated Cabinet
  • The Ameristar M4AH4036A1000A is protected by a rust-resistant galvanized steel cabinet. A glass cotton insulation layer lines the cabinet, preventing heat loss and sound leakage to ensure quiet, efficient comfort.
  • Convenient Access
  • Installation and maintenance are a breeze with Ameristar air handlers. The blower and coil are mounted on slide decks to facilitate servicing, and the front panels are removable to enhance accessibility.

Specifications

M4AH4036A1000A
specs product image PID-30441
General Information
Product Line
M4AH4
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Cooling Capacity
36000 BTU
Maximum Air Flow
1446 CFM
Minimum Air Flow
988 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1.63 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
46 1/2 Inches
Product Width
19 5/8 Inches
Product Depth
21 5/8 Inches
Product Weight
141 Pounds
Shipping Height
47 19/24 Inches
Shipping Width
22 29/48 Inches
Shipping Length
25 17/24 Inches
Shipping Weight
156 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
