Features
- Dehumidify and Cool
- Dry Mode demonstrates the ARU24RLF's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
- Quiet Operating Mode
- The ARU24RLF may be set in a quiet operating mode. This operating mode limits airflow slightly to reduce fan noise from the unit, allowing you to enjoy supremely quiet comfort.
- Condensate Protection
- There is a condensate pump in the ARU24RLF. This pump removes condensation build up from your system, protecting it from potential damage and keeping it running efficiently.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the ARU24RLF concealed duct mini split indoor unit capable of cooling, drying, and heating operations. A concealed duct indoor unit installs easily in ductwork, and it has no visible profile in your home. This unit also enjoys low operating sound levels in any mode, providing comfort that doesn't disrupt your home at any level. When it comes to heating and cooling a space discretely and efficiently, it's hard to beat the ARU24RLF.
Product Note
This product requires a compatible Fujitsu mini split outdoor condenser and the following accessories for indoor unit installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
ARU24RLF
Overview
Product Category
Mini Split System Components
General Information
Type
Concealed Duct
Product Line
Halcyon HFI
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
783 CFM
Minimum Air Flow
607 CFM
Minimum Sound Level
29 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
35 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 13/16 Inches
Product Width
43 5/16 Inches
Product Depth
24 7/16 Inches
Product Weight
55 Pounds
Shipping Width
52 15/16 Inches
Shipping Height
10 13/16 Inches
Shipping Depth
30 3/8 Inches
Shipping Weight
68 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(1)
Fujitsu ARU24RLF Reviews & Ratings
How-To Articles
How to Pick the Perfect Mini Split Concealed Duct Unit
If you want a seemingly invisible form of zoned air conditioning, the mini-spli...
eComfort Boosts Comfort and Energy Savings at Historic Home
Owning a historic home can be very rewarding. But those rewards come with respo...
How to Pick the Perfect Mini Split Suspended Indoor Unit
A ceiling-suspended mini split is the perfect ductless solution for large open ...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

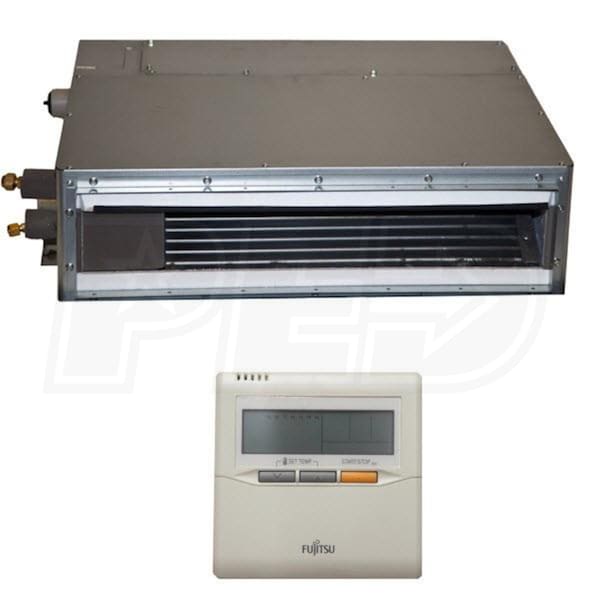

Fujitsu - 24k BTU - Concealed Duct Unit - For Multi-Zone
