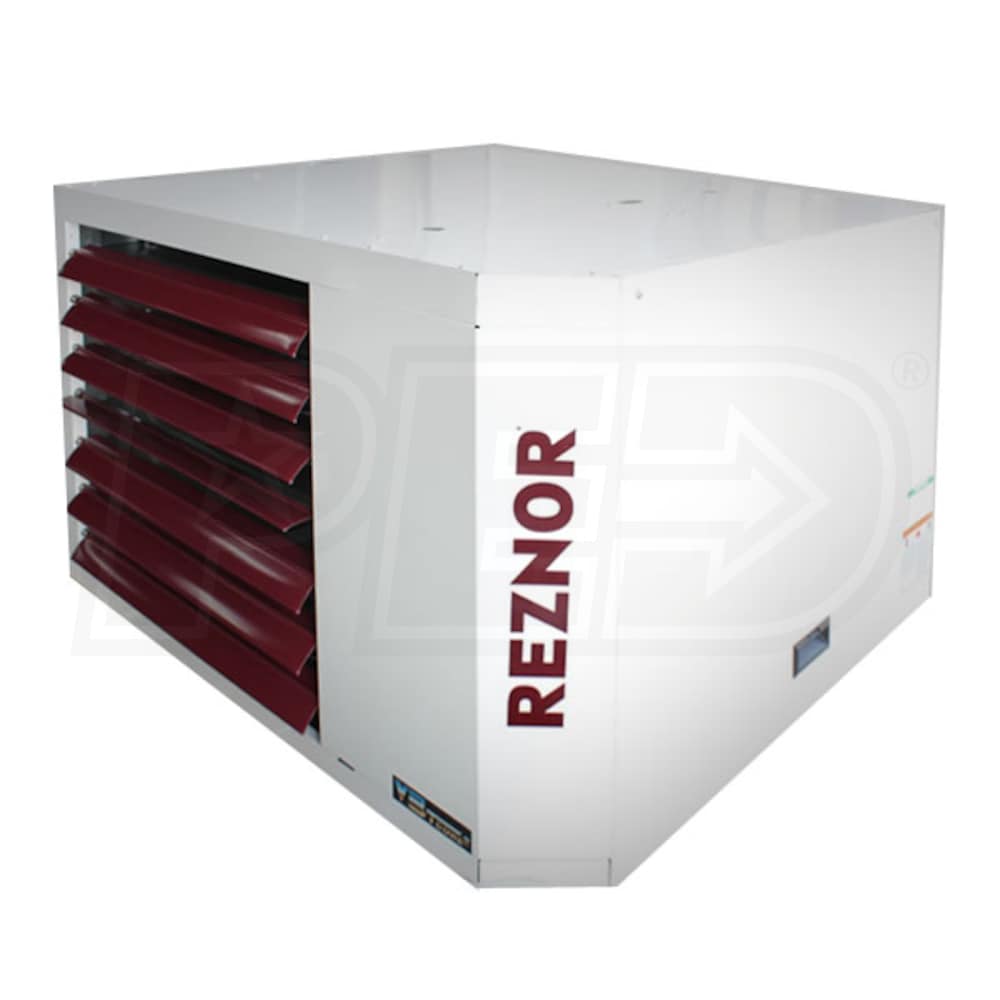

Reznor UDAP-250 Power Vented Gas Fired Unit Heater, NG, Aluminized Heat Exchanger - 250,000 BTU
Model:
UDAP-250
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
2
$16.00
In-Stock
$38.00
In-Stock
Features
- Reznor UDAP-250 Features
- Commercial/industrial certification
- Multi-try direct spark ignition with 100% lockout
- Vibration isolated fan and venter motors
- 2-pt and 4-pt suspension points
- External gas connection
Reznor UDAP-250 Gas Fired Unit Heater is a 115 volt, gas fired unit heater designed to provide efficient heating. Reznor UDAP-250 uses a single burner combustion system to provide a 208,000 BTU/hr. output with an 82-83% thermal efficiency. UDAP-250 provides a 50-60 F rise range. UDAP models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UDAP-250 can be suspended from either 2 or 4 suspension points or ceiling mounted with an optional hanger kit. UDAP-250 provides improved efficiency and easier installation over previous Reznor models.
Product Note
The image may not reflect actual product features. The Reznor UDAP-250 comes with seven horizontal louvers.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
UDAP-250
General Information
Product Line
UDAP
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
208000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
250000 BTU
Thermal Efficiency
83 %
Maximum Air Flow
3202 CFM
Minimum Air Flow
3202 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
5 Inches
Flue Connection Size
5 Inches
Gas Connection Size
3/4 Inch
Gas Piping Diameter
3/4 Inch
Product Height
26 1/8 Inches
Product Width
38 Inches
Product Depth
42 Inches
Product Weight
215 Pounds
Shipping Weight
257 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(47)
Reznor UDAP-250 Reviews & Ratings
Customer Rating
4.85
(47 Ratings)
98% recommend this product
5
(42)
(42)4(4)
(4)3(0)
(0)2(1)
(1)1(0)
(0)
One of the most reliable names in unit heaters, Reznor really shines with the UDAP series, its power vented gas fired unit heaters. The UDAP-250 can be suspended from suspension points or be ceiling mounted (requires optional kit). Its reliable heating technology will keep you warm throughout the winter and, while built with industrial strength, its aesthetic design won't detract from your workshop's appearance. The heat exchanger comes with a 10 year warranty, so you can be confident your space will stay comfortable for many years to come.
