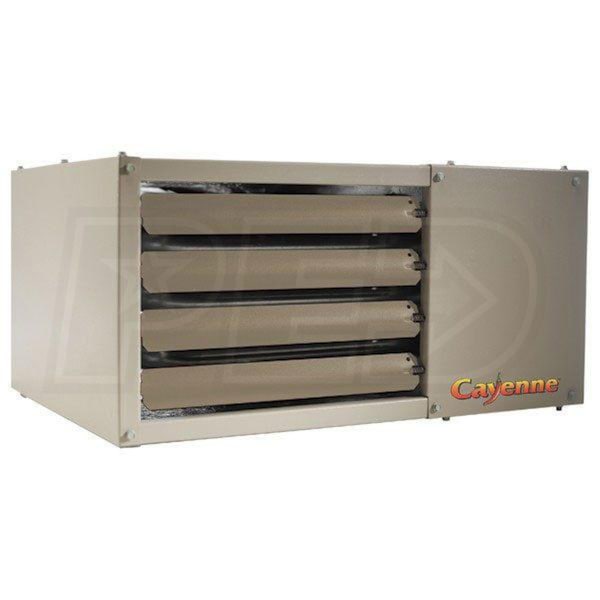

ADP FSAN60 Low Profile Unit Heater, Standard Combustion, NG - 60,000 BTU
Model:
FSAN-60
+
Share This Product
Features
- Power exhaust system
- Allows vertical or horizontal venting up to 25/40 feet (respectively)
- Direct drive propeller fans
- Are dynamically balanced for quiet and smooth operation
- Easy to clean tubular heat exchangers
- Made of aluminized steel, provide resistance to corrosion and oxidation
- Flexibility
- ADP provides solutions for all your residential and light commercial heating needs
- Quality
- Every unit heater is run tested prior to shipping
- Service
- ADP unit heaters are made for seamless installation and easy access
- Energy
- Natural gas and propane models available to meet your needs
- Residential, low profile units
- Great for garages & shops
- Wiring junction box is located inside of unit
- Self-diagnostic board with LED display improves troubleshooting
- 1 clearance from ceiling for easy installation"
- Product Includes
- A completely assembled heater
- Installation instructions
- Warranty certificate
- 2 Mounting brackets
- Flue transition
Introducing the FSA Series by ADP. These compact unit heaters provide solutions for all of your residential heating needs through ease of installation and service, high efficiencies, as well as high quality and lasting dependability. Low profile unit heaters such as FSA are also ideal for small greenhouses, aircraft hangers, parking structures and repair garages. ADP's dedication for perfect quality products, extremely advanced designs, unique processes, propriety testing technologies and a trouble-free customer experience are integrated into the manufacturing process. A satisfactory supply of air is required for proper combustion and ventilation, and must be devoid of the following substances in order to ensure the quality and dependability of the heat exchanger: chlorine, carbon tetrachloride, cleaning solvent, halogen refrigerants, acids, cements and glues, printing inks, fluorides, paint removers, varnishes, or any other corrosives.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
FSAN-60

General Information
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Additional Model Numbers
FSAN60, FSAN-60
Performance
Heating Capacity
48000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
60000 BTU
Thermal Efficiency
80 %
Air Throw
40 Feet
Maximum Air Flow
830 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
18 Inches
Product Width
25 Inches
Product Depth
25 Inches
Product Weight
87 Pounds
Warranty Information
Heat Exchanger Warranty
10 Years
