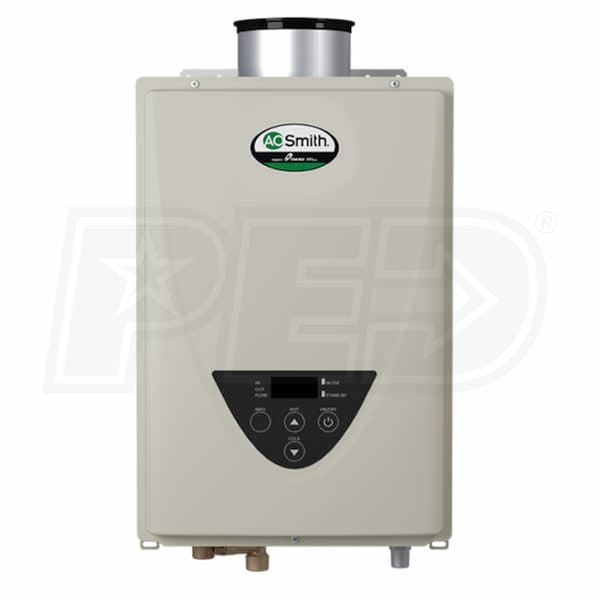

A.O. Smith ATI-310C - Residential 190,000 BTU - Natural Gas Tankless Water Heater - Concentric Vent
Model:
ATI-310C-N
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
3
Model: ScaleRx34
$150.00
In-Stock
Model: 44443WPR
$113.00
In-Stock
Features
Fuel
Natural Gas
Location
Indoor
# of Showers
2.5
UEF
0.82
Energy Star Certification
Yes
A.O. Smith ATI-310C - Residential 190,000 BTU - Natural Gas Tankless Water Heater - Concentric Vent
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Concentric Vent System
- The ATI-310C-N model features a concentric direct vent system. By combining the intake and exhaust vents into a single vent, this system helps reduce space and simplify installation by only requiring one wall penetration for venting.
- Heavy Duty Heat Exchanger
- The primary heat exchanger is built out of copper, offering better heat transfer than stainless steel and designed to be more resilient against corrosion. A.O. Smith water heaters are built to last and save you money in the process.
- Multiple Safety Features
- ATI models come with a long list of safety features standard. These include: built in freeze protection, manual reset hi limit, an overheat cutoff fuse, inlet and outlet thermistors to monitor temperatures, and a built-in flame sensor.
- Ultra Low-NOx Emissions
- The ATI-310C-N is designed to qualify for the most stringent Low-NOx standards. These standards coincide with SCAQMD rules and other air quality management districts.
- Space Saving Design
- A.O. Smith tankless heaters take up less space than their conventional counterparts. The convenient wall mount design means they can fit in nearly any home layout and offer additional flexibility.
- Ultra Low-NOx Emissions
A.O. Smith continues to lead the way in residential water heating with close to 70 years of innovative hot water solutions. The ATI-310C-N features the latest in efficient water heating technology along with a concentric vent design to fit almost any hot water need. Switching on when a hot water tap is opened, a built in temperature sensor helps to maintain hot water within a one degree set point during use, and the system automatically shuts off when the tap is closed saving you energy. The ATI line utilizes efficient water heating technology, providing higher than average Uniform Energy Factors and meeting Low NOx emissions requirements.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
ATI-310C-N
Overview
Product Category
Water Heater - Tankless
UPC
671657102227
General Information
Type
Tankless Water Heater
Product Line
ProLine
Product Category
Water Heater - Tankless
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Copper
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Non-Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Concentric Vent
Venting Category
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
III
Storage Type
Tankless
Application
Residential
Mount Type
Wall
Installation Location
Indoor
Maximum Altitude
10100 Feet
Includes Pump
No
Gas Conversion Kit
Included
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
190000 BTU
Minimum Input Capacity
15000 BTU
Flow Rate at 40F Temperature Rise
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.9 GPM
Flow Rate at 50F Temperature Rise
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.2 GPM
Flow Rate at 60F Temperature Rise
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.3 GPM
Flow Rate at 70F Temperature Rise
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.5 GPM
Uniform Energy Factor
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.82
Flow Rate at 77F Temperature Rise
4.0 GPM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
20 1/2 Inches
Product Width
13 3/4 Inches
Product Depth
10 1/2 Inches
Product Weight
51 Pounds
Shipping Weight
51 Pounds
Intake Diameter
3 Inches
Exhaust Diameter
5 Inches
Certifications
CSA Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ANSI Certified
Yes
UPC Listed
Yes
AHRI Reference Number
8703515
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years
Reviews
(6)
A.O. Smith ATI-310C-N Reviews & Ratings
Works great
By Patrick B
Remer, Minnesota
Purchased 10/26/2018 |
Review Posted 11/27/2018
Replacing an older tankless. Works much better than competitor unit. No cold water sandwich to speak of. Quick starting of flame. Should have switch a long time ago. Much quieter as well. Wish it had more than 2 re-circulation settings.
Patrick B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Hot water slow to come.
By Richard J
Lockport, New York
Purchased 05/09/2018 |
Review Posted 06/23/2018
I am not real happy with how long it takes hot water to reach even the closest faucet.Maybe all makes are like this but it doesn't make it any easier to have to wait 10 to 15 seconds to get hot water.
Richard J Does Not Recommend This
Was this review helpful?
Expert Response
While it may seem like a long time it’s approximately 5 seconds longer than getting water from a standard tank water heater. There are circulating pumps that can be installed with timers or using an Alexa plug to turn it on and off that will take away that waiting time.
Ken D.
eComfort Product Expert
Rating Breakdown
4/5
4/5
4/5
4/5
As Good as Advertised
By Chris M.
West Virginia
Purchased 04/13/2017 |
Review Posted 12/26/2017
I had zero problems with the easy installation.The unit has performed perfectly since the intial start up.The price is easily offset by the money saved on energy cost.So, far it has met all expectations.
Chris M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
This is best product ever
By Tommy B.
Dunbar, West Virginia
Purchased 11/15/2017 |
Review Posted 12/06/2017
The product is great and I would recommend this product to anyone
Tommy B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Love It
By Dion M.
Portola Valley, California
Purchased 08/28/2017 |
Review Posted 09/19/2017
I was moving my water heater and installing tankless to get longer life appliance and endless hot water. I wanted recirculating pump and high gpm tankless. This was easy to install with solid core pvc venting (get the concentric vent) and the valve kit. Just make sure you have large enough gas line--max 30 feet run 3/4 inch with no other appliances off of it. I wound up installing 1-1/4 gas line in my setup.
Dion M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Works Great
By Tom B.
Moose Lake, Minnesota
Purchased 06/11/2017 |
Review Posted 07/03/2017
The installation went well and the unit is very quiet - working great.
Tom B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
