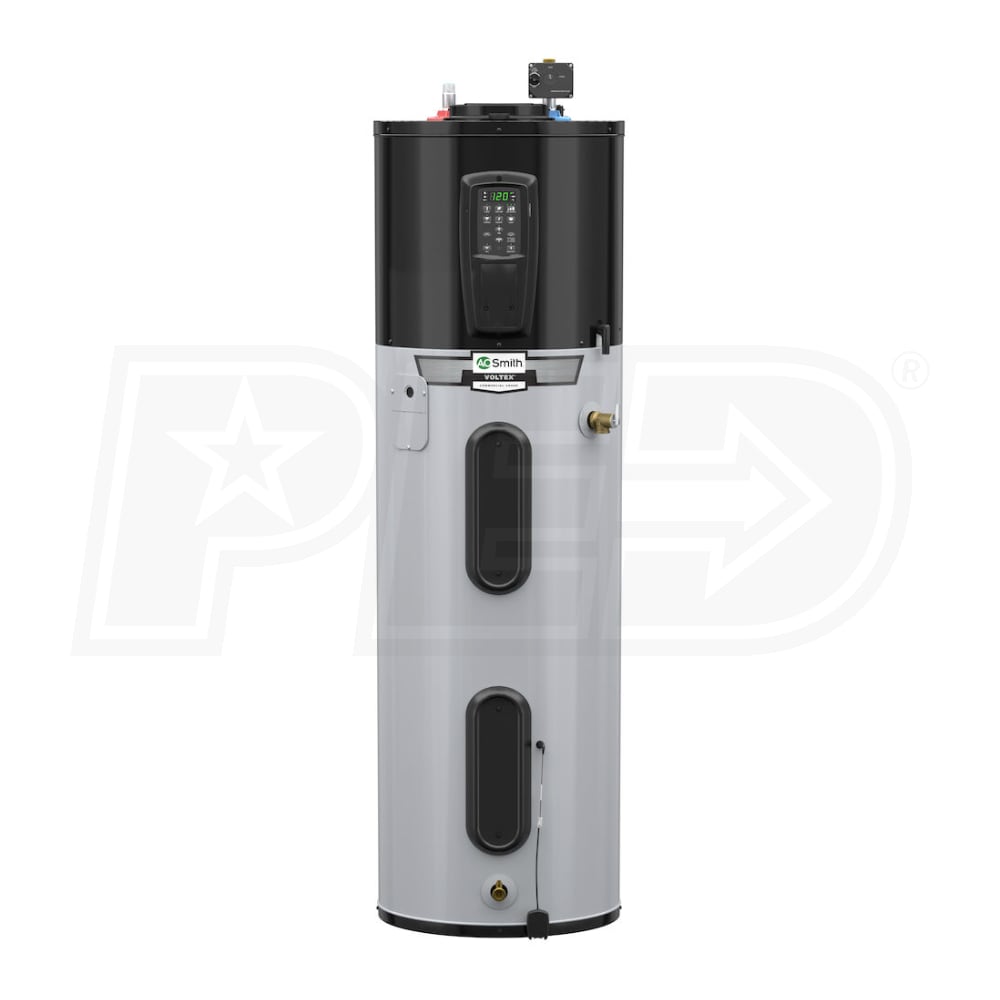

A.O. Smith HPTA Voltex® Max - 5 Gallon Capacity - Residential Smart Hybrid Electric Heat Pump Water Heater
Model:
HPTA-50
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
4
Model: ScaleRx34
$150.00
In-Stock
Features
- Hot Water+
- The A.O. Smith Voltex® Max has three Hot Water+ levels to choose from and can deliver up to 40% more hot water than a standard heat pump
- Smart Modes
- Vacation Mode minimizes energy consumption and is ideal for when the unit is not used for a period of time.
- Hot Water+ Mode can be operated with Hybrid, Heat Pump or Electric Mode to allow the user to increase performance.
- Guest Mode delivers maximum performance and capacity for higher than normal usage.
- Electric Mode allows the water heater to function as a conventional electric unit which can be helpful during periods of hot water demand.
- iComm® Connectivity
- Featuring iComm® Smart Connectivity, the A.O. Smith Voltex® Max gives you the ability to conveniently monitor and control the water heater through an app.

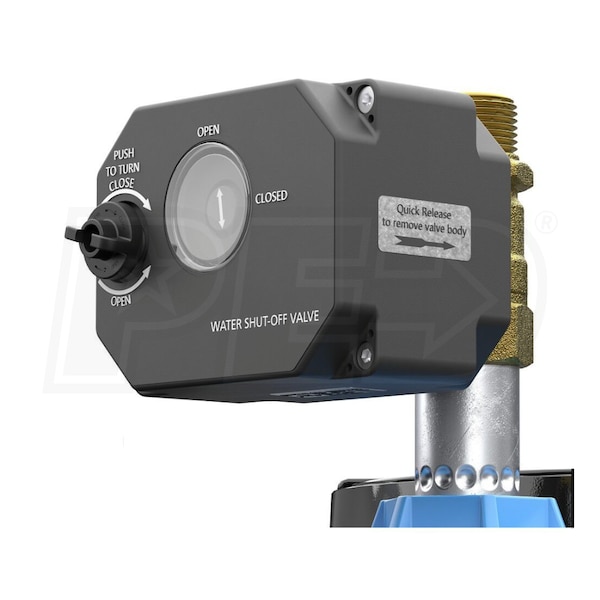

- Leak Protection
- With smart sensor leak detection and an automatic water shutoff, the A.O. Smith Voltex® Max provides the homeowners with peace of mind.
- Smart Anode
- Adapting to local water conditions, the smart anode in the Voltex® Max helps to extend the life of the water heater. Leak protection technology regulates the depletion of the anode rod, extending rod and tank life.
- Advanced Tank Protection
- The A.O. Smith Voltex® Max features a CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning to protect the tank and extend the life of the water heater.
- Flexible Design
- The A.O. Smith Voltex® Max has water connections on the top of the unit with no clearance required on the sides. This design allows installation in tighter spaces possible and makes installation simpler.
A.O. Smith continues to lead the way in residential and commercial water heating with decades of innovative hot water solutions. The A.O. Smith Voltex® Max can deliver up to 40% more hot water with Hot Water+ using smart valve technology. Ideal for your homes basement, utility room or garage, the Voltex® Max can dehumidify and cool the ambient air while the compressor transfers heat to the water. With iComm® Smart Connectivity built in, you can set up alerts to notify you of your water heaters operations and possible issues. The energy efficient and quiet A.O. Smith Voltex® Max has a flexible design that is preferred by contractors. With additional features like leak detection and automatic water shutoff, you can feel confident in your purchase of an A.O. Smith Voltex® Max.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
HPTA-50
General Information
Type
Hybrid Electric Water Heater
Product Line
Voltex Max
Product Category
Water Heater - Tank
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Storage Type
Tank
Application
Residential
Mount Type
Floor
Capacity
46 Gallons
UPC
671657282158
Additional Model Numbers
HPTA-55, HPTA-50
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
65 Gallons
Uniform Energy Factor
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
3.68
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Current Draw
23.6 Amps
Dimensions
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
63 Inches
Product Width
22 Inches
Product Depth
22 Inches
Product Weight
196 Pounds
Shipping Weight
196 Pounds
Certifications
UL Listed
Yes
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
214091847
