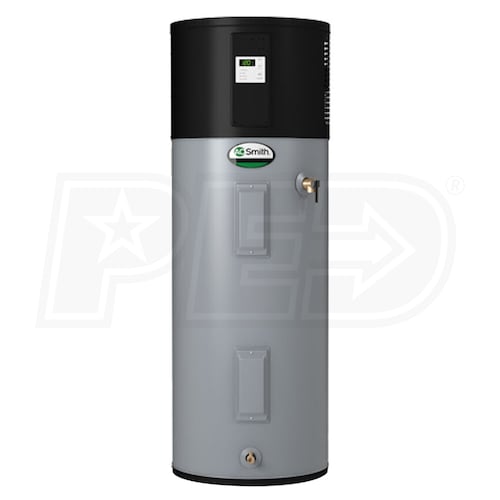

A.O. Smith FPTU-66 - 66 Gallon Capacity - Residential Heat Pump Water Heater
Model:
FPTU-66
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
5
$29.00
In-Stock
Model: ScaleRx34
$150.00
In-Stock
$159.00
In-Stock
$43.00
In-Stock
$344.87
In-Stock
Features

A.O. Smith FPTU-66 - 66 Gallon Capacity - Residential Heat Pump Water Heater
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Efficient Electric Hot Water
- The A.O. Smith Voltex line heats water with a high efficiency electric heat pump rather than conventional electric methods. This provides efficient hot water while also helping to dehumidify and cool the ambient air around the unit.
- Multiple Operating Modes
- The FPTU-66 comes with 3 different operating modes: Efficiency, Hybrid, and Electric, to meet any and all hot water needs. Hybrid mode automatically adjusts between the compressor and heating element. Vacation mode reduces costs for up to 99 days.
- Coreguard Anode Rod
- The stainless steel anode rod core helps extend the life of the heater by protecting it from the corrosive effects of hot water. Coreguard technology helps to extend the life more than that of a standard rod.

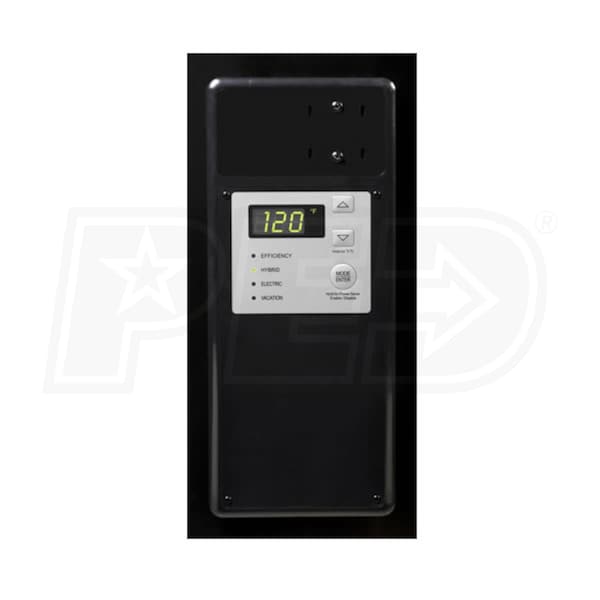

- User-Friendly Electronic Interface
- A built-in easy to read controller on the unit gives you easy access to temperature settings, operating mode, and multiple diagnostics to make sure your unit is running exactly how you want it.
A.O. Smith continues to lead the way in residential and commercial water heating with close to 70 years of innovative hot water solutions. The FPTU-66 features A.O. Smith's latest high efficiency electric water heating technology. By using an electric heat pump rather than resistive heating elements the FHPT line offers money saving efficiency while also dehumidifying and cooling ambient air. A 66 gallon tank and multiple operating modes allows the unit to fit nearly any domestic hot water need. Additional quality of life features such as backup electric elements, and a Coreguard anode rod keep the FPTU-66 running reliably and efficiently even in periods of high demand.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
FPTU-66

Overview
Product Category
Water Heater - Tank
UPC
671657246327
General Information
Type
Hybrid Electric Water Heater
Product Line
Voltex
Product Category
Water Heater - Tank
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Storage Type
Tank
Application
Residential
Mount Type
Floor
Capacity
66 Gallons
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
80 Gallons
Energy Factor
Energy Factor
Energy Factor (EF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater. Learn More
3.17
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Current Draw
18.75 Amps
Dimensions
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
61 Inches
Product Width
27 Inches
Product Depth
27 Inches
Product Weight
248 Pounds
Shipping Weight
289 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8177891
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
Reviews
(3)
A.O. Smith Tank FPTU-66 Reviews & Ratings

I love this hybrid heater
By Barry I.
Plainfield, Vermont
Purchased 01/07/2017 |
Review Posted 07/19/2018
This water heater was very easy to install. It's been running in the heat pump mode since I installed it. You can hear the fan running, but it's more from the air movement perspective. I do like how it doubles as a dehumidifier. So if you're like I am with an older home that has a damp basement, I no longer need to run my dehumidifier. So I'm not sure if I'm getting free hot water or free dehumidifying, but feels great to not be paying for both of them. I've only had it running for a month, so I'm looking forward to my next electric bill. I marked the value as 5 stars because I did get a $600 rebate from my state efficiency program. If I had to pay full price without the rebate I would have given 4-stars as the return on investment would have been longer.
Barry I. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Great Product. Well Made
By Roxanne S.
Madisonville, Tennessee
Purchased 08/11/2017 |
Review Posted 09/22/2017
From the moment I saw this heat pump water heater I knew it was a great product. I have a large, mostly unfinished basement and these water heaters are ideal for my space. I am new to using them so cannot speak to the efficiency overall. By maintaining the units as suggested in the use and care guide, I am confident they will live up to my expectations. I gave the performance rating an excellent and will update that rating at some future date when I have had a chance to "live" with these for a while.
Roxanne S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, High Quality, I'd Buy It Again

Very Impressed. Good Looking.
By Jeffrey Newell
Alton, Missouri
Purchased 07/05/2017 |
Review Posted 08/16/2017
So far so good, only two weeks into new install. It takes a little getting used to the sound, but it is pretty unintrusive. I purchased a hybrid due to the need for a dehumidifier in the equipment room and boy does it remove the water. It also puts out a noticeable amount of cool air. The connections are a little weird as to positioning of the control panel, electrical, and plumbing connections all being a little scattered. Nevertheless I was able to accommodate the non-standard connections as well as an extra(condensate drain) connection with little problems. I used 18" stainless braided hot water heater connections as well as shark bite tubing and fittings. With two people I have absolutely no issues with capacity. I have not seen a utility bill yet. It recovers very fast. I also installed a whole house surge protector(Leviton) as we have a plethora of surges. We are extremely rural. The controls are easy to use. It looks really nice as well, so much nicer than my old electric with fiberglass blanket.. And it seems to only run to replenish heat after usage, I have not noticed it once running just to re-heat the existing tank leading me to believe it has good insulation. I went with A.O. Smith because of the revues, and due to the fact that our existing dual electric setup was A.O. Smith pro and they were still going great after 17 years of use in an area known for killing water heaters before 15 due to hard water. It is heavy, but I loaded and unloaded by myself using my small trailer and a refrigerator dolly. I also installed a 3+ gallon expansion tank and check valve to increase efficiency. Ed Begley would be proud.
I would definitely recommend the surge protector and the expansion tank. They added another $300 to the project, but it is worth the safety factor. I really like to do things once if at all possible. I would also recommend the larger tank models for more than 3 people. This 66 gallon model seems to recover very quickly.
With eComfort free shipping, and my geographically odd position of two weeks to everywhere, this really worked out well for me. I could not find a lower price anywhere. So I am not sure how they do free shipping.
Just be aware that you need 180 degrees clear to make all of the connections as none of them are on top of the unit.
There was a straight electric(Marathon) with a lifetime warranty that I was looking at due to it's efficiency, but the revues had multiple tank failures, and for near the same cost I decided to take the plunge and go hybrid. So far I am very impressed.
I would definitely recommend the surge protector and the expansion tank. They added another $300 to the project, but it is worth the safety factor. I really like to do things once if at all possible. I would also recommend the larger tank models for more than 3 people. This 66 gallon model seems to recover very quickly.
With eComfort free shipping, and my geographically odd position of two weeks to everywhere, this really worked out well for me. I could not find a lower price anywhere. So I am not sure how they do free shipping.
Just be aware that you need 180 degrees clear to make all of the connections as none of them are on top of the unit.
There was a straight electric(Marathon) with a lifetime warranty that I was looking at due to it's efficiency, but the revues had multiple tank failures, and for near the same cost I decided to take the plunge and go hybrid. So far I am very impressed.
Jeffrey Newell Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Fast, I'd Buy It Again
