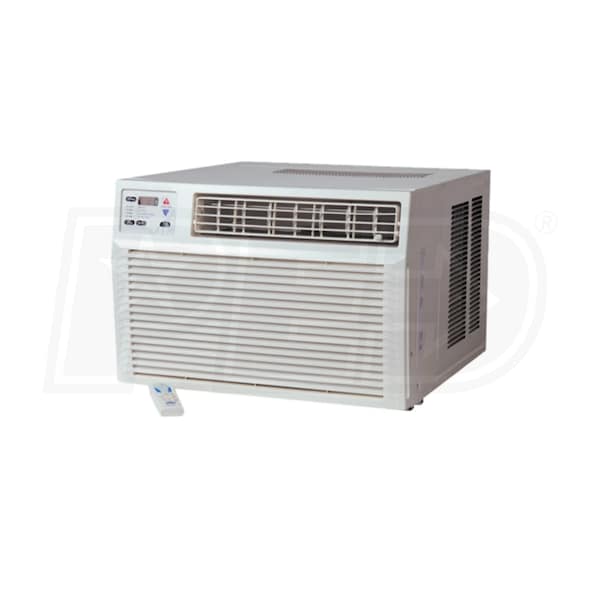

Amana AH12 - 12,000 BTU - Window/Wall Heat Pump - 3.5 kW Electric Heat - 208/230V
Model:
AH123G35AX
+
Share This Product
Features
- Ready for Wall or Window Installation
- The AH12 includes a wall case and window kit for either type of installation. A slide-out chassis allows for simple installation and service accessibility.
- Heating and Cooling
- Unlike most through-the-wall air conditioners, the AH12 is a heat pump that provides both heating and cooling operation. The AH12 also features electric heating for lower heat applications.
- Three Speed Fan
- Adjust the settings to cater to your needs by choosing between 3 separate fan speeds to find the best air output and noise levels.
- Wireless Remote Included
- There's no need to get up and walk across the room to change the temperature or settings. The AH12 comes with a wireless remote to easily switch between modes and adjust the set temperature.
- Multi-Directional Airflow
- The AH12 features multi-directional airflow to allow for heating or cooling to any part of the room. The AH12 also features an automatic swing mode so you won't have to adjust the air direction each time.
- Slide-Out Filter
- The AH12 includes an easily accessible front slide-out filter that can be cleaned and used throughout the life of the heat pump.
- Hydrophilic Coated Coils
- The AH12's evaporator and condenser coils feature a hydrophilic coating for increased airflow, heat exchange and higher efficiency.
Looking for complete room comfort without breaking the bank on a central air system? The Amana AH12 is a powerful 12,000 BTU through-the-wall heat pump that features high-efficiency operation with an array of convenient features. With both heating and cooling capabilities, the AH12 will keep your room comfortable no matter the season.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
AH123G35AX
Overview
Product Category
Air Conditioner - Room-Window
General Information
Type
Through-the-Wall Heat Pump
Product Line
AH
Product Category
Air Conditioner - Room-Window
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Remote Control
Included
Blower Motor Type
3-Speed
Programmability
No
Electric Heat
Yes
Interface
Electronic Control Panel
Color
White
Installation Type
Through-the-Wall/Window
Performance
Cooling Capacity
11200 BTU
Heating Capacity
9900 BTU
Electric Heat Capacity
3.6 kW
Moisture Removal
2.5 Pints/Hour
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.9
Cooling Power Input
1170 Watts
Heating Power Input
1150 Watts
Electrical Data
Plug Type
NEMA 6-20P
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Current Draw
5.3 Amps
Maximum Load
16 Amps
Dimensions
Product Height
15 3/8 Inches
Product Width
22 5/8 Inches
Product Depth
26 3/4 Inches
Product Weight
116 Pounds
Shipping Weight
116 Pounds
Power Cord Length
4 Feet
Certifications
UL Listed
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(2)
Amana AH123G35AX Reviews & Ratings
Window heat Pump
By James W.
Grovetown, Georgia
Purchased 09/17/2019 |
Review Posted 10/01/2019
I've had the unit for about 2 mo.(got unit in AUG) I live in Georgia and have not used the reverse cycle heat yet. A/C works great I'm using the unit in a 960SQFT all electric Mobile Home, Aug was 95-98 for 25 days in the month, electric bill was $120, Sept was $117. Looking forward to heat cycle to compare with last years bill.
James W. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Durable, Easy To Use, Quiet, High Quality
Cons:
Expensive
Great unit reasonable price exceed expectations
By Dennis S.
St. Louis, Missouri
Purchased 07/01/2019 |
Review Posted 08/07/2019
I have a 48 by 28 shop behind our house it is insulated but have a double door and single garage door that are insulated also and this unit mounted through the back wall we'll keep the shop air conditioned in the summer and heated in the winter sometimes I just keep it at 40 degrees in the winter if we're on vacation or something same thing in the summer I'll just keep it at 80 degrees maintains that well barely runs it's an amazing product this is my second one identical unit under a different name previous lasted 10 years rubber bushing went out in the fan on the outside and tore up the fan bearing would highly recommend it
Dennis S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
