Amana AH183G35AX
Amana AH183G35AX
Hover to zoom
1 Of 5

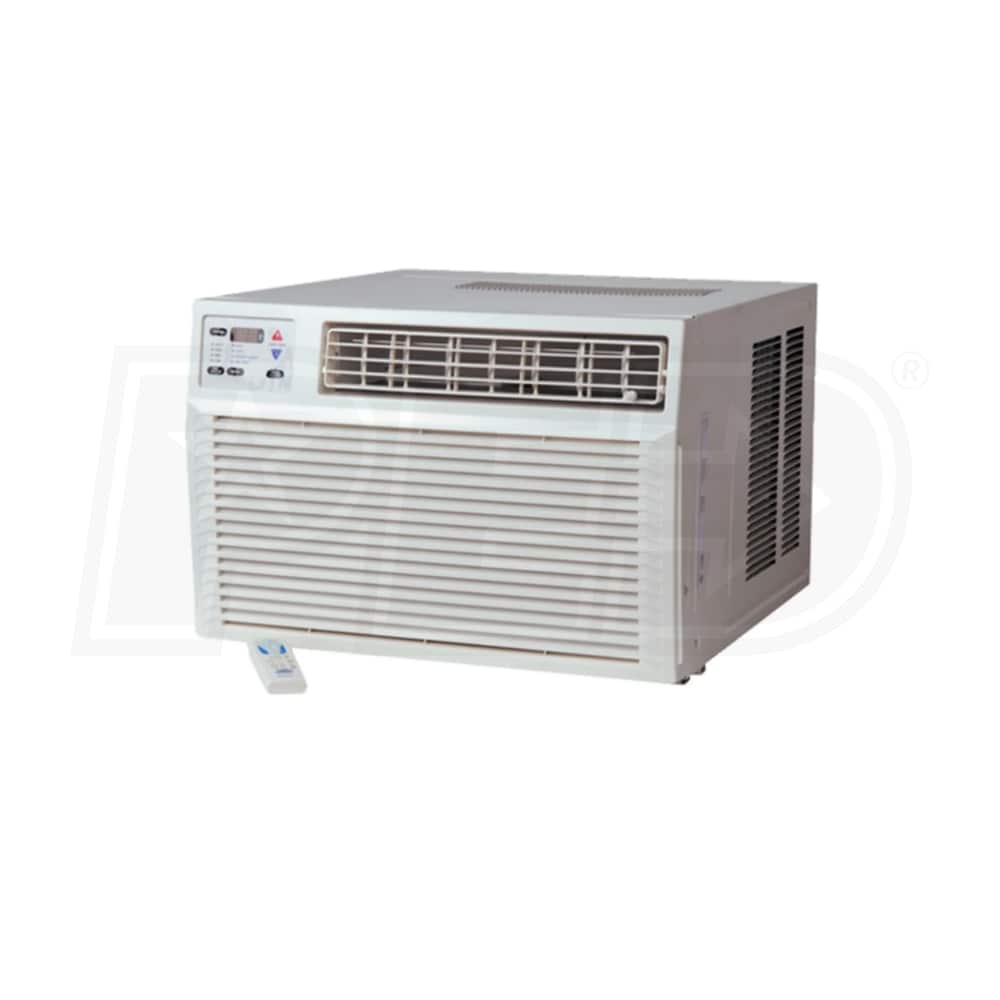

Amana AH18 - 18,000 BTU - Window/Wall Heat Pump - 3.7 kW Electric Heat - 208/230V

Model:

AH183G35AX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Amana AH18 - 18,000 BTU - Window/Wall Heat Pump - 3.7 kW Electric Heat - 208/230V
Amana AH18 - 18,000 BTU - Window/Wall Heat Pump - 3.7 kW Electric Heat - 208/230V
Model: AH183G35AX
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Plug Type (NEMA 6-20P): This appliance uses NEMA 6-20P standard size power plug. It's designed for a 240V 20A household power supply. Please verify that your home's power supply is compatible with this appliance before purchase.
    Looking for complete room comfort without breaking the bank on a central air system? The Amana AH18 is a powerful 18,000 BTU through-the-wall heat pump that features high-efficiency operation with an array of convenient features. With both heating and cooling capabilities, the AH18 will keep your room comfortable no matter the season.
  • Ready for Wall or Window Installation
  • The AH18 includes a wall case and window kit for either type of installation. A slide-out chassis allows for simple installation and service accessibility.
  • Heating and Cooling
  • Unlike most through-the-wall air conditioners, the AH18 is a heat pump that provides both heating and cooling operation. The AH18 also features electric heating for lower heat applications.
  • Three Speed Fan
  • Adjust the settings to cater to your needs by choosing between 3 separate fan speeds to find the best air output and noise levels.
  • Wireless Remote Included
  • There's no need to get up and walk across the room to change the temperature or settings. The AH18 comes with a wireless remote to easily switch between modes and adjust the set temperature.
  • Multi-Directional Airflow
  • The AH18 features multi-directional airflow to allow for heating or cooling to any part of the room. The AH18 also features an automatic swing mode so you won't have to adjust the air direction each time.
  • Slide-Out Filter
  • The AH18 includes an easily accessible front slide-out filter that can be cleaned and used throughout the life of the heat pump.
  • Hydrophilic Coated Coils
  • The AH18's evaporator and condenser coils feature a hydrophilic coating for increased airflow, heat exchange and higher efficiency.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

AH183G35AX
specs product image PID-99500
Overview
Product Category
Air Conditioner - Room-Window
UPC
663051504974
General Information
Type
Through-the-Wall Heat Pump
Product Line
AH
Product Category
Air Conditioner - Room-Window
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Remote Control
Included
Blower Motor Type
3-Speed
Programmability
No
Electric Heat
Yes
Interface
Electronic Control Panel
Color
White
Installation Type
Through-the-Wall/Window
Performance
Cooling Capacity
17300 BTU
Heating Capacity
14300 BTU
Electric Heat Capacity
3.7 kW
Moisture Removal
4.1 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.9
Cooling Power Input
1750 Watts
Heating Power Input
1520 Watts
Electrical Data
Plug Type
NEMA 6-20P
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Current Draw
7.8 Amps
Maximum Load
16 Amps
Dimensions
Product Height
16 7/8 Inches
Product Width
26 Inches
Product Depth
32 1/2 Inches
Product Weight
143 Pounds
Shipping Weight
162 Pounds
Power Cord Length
4 Feet
Certifications
UL Listed
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
