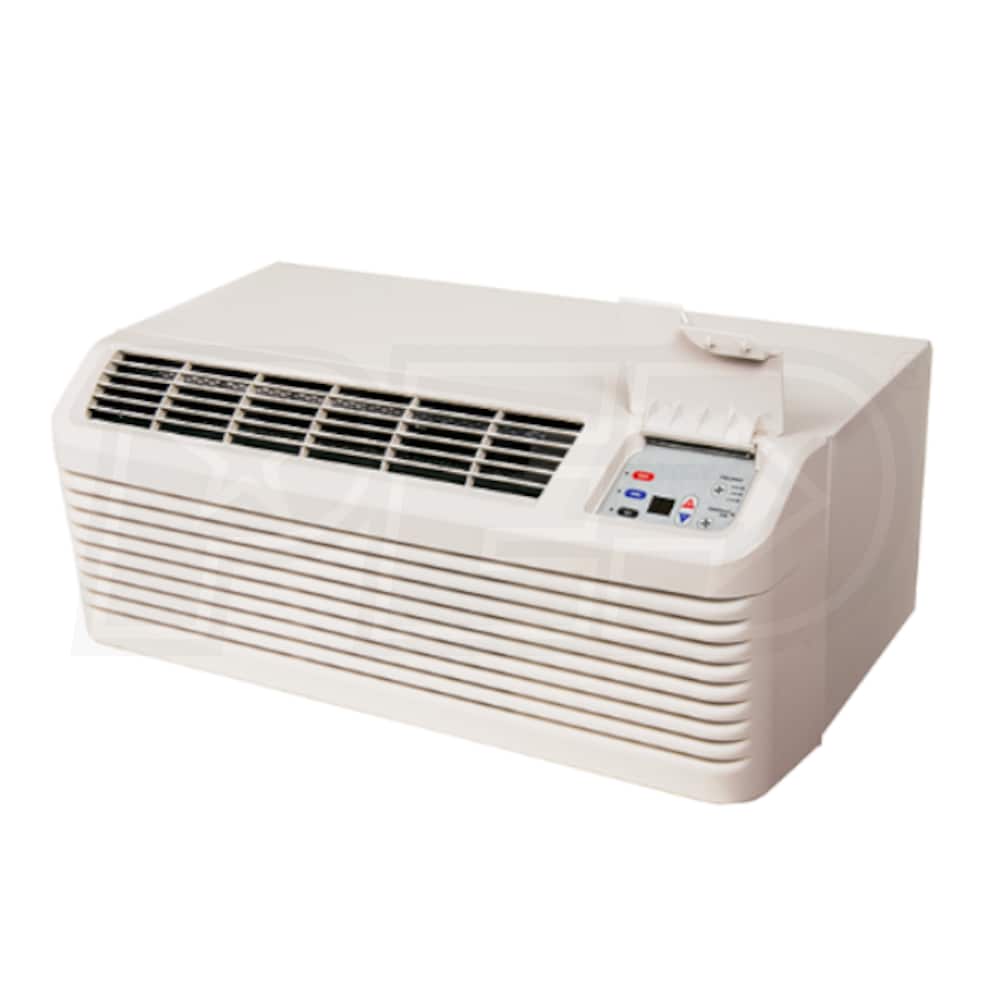

Amana 15k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.5 kW Electric Heat - 208-230 Volt

Model:

PTH153G35AXXX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Amana 15k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.5 kW Electric Heat - 208-230 Volt
Amana 15k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.5 kW Electric Heat - 208-230 Volt
Model: PTH153G35AXXX
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Plug Type (NEMA 6-20P): This appliance uses NEMA 6-20P standard size power plug. It's designed for a 240V 20A household power supply. Please verify that your home's power supply is compatible with this appliance before purchase.
    The Amana PTH073E35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTH series is a durable, reliable and efficient unit that will never disappoint.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PTH153G35AXXX
specs product image PID-58424
Overview
Product Category
PTAC Unit
UPC
663051494732
General Information
Type
PTAC
Product Line
PTH
Product Category
PTAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Performance
Cooling BTU
15000
Cooling Capacity
14700 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
4.4 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.7
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Plug Type
NEMA 6-20P
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9.7 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
126 Pounds
Shipping Weight
143 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
