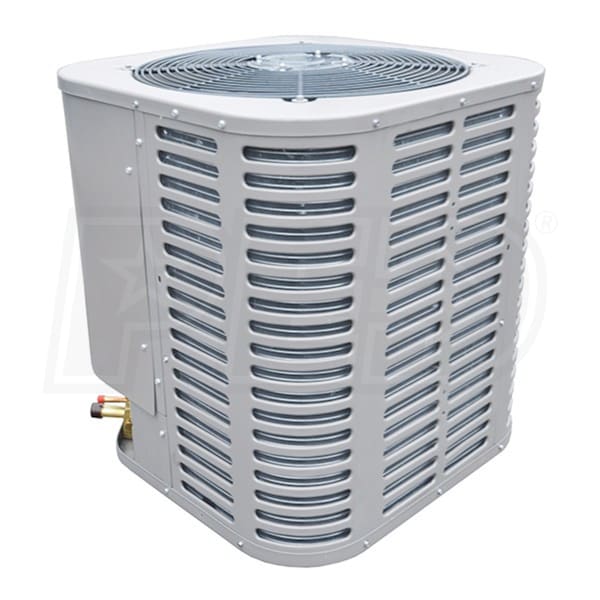

Ameristar M4AC3 - 2 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-410A Refrigerant

Model:

M4AC3024B1000N

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Ameristar M4AC3 - 2 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-410A Refrigerant
Ameristar M4AC3 - 2 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-410A Refrigerant
Model: M4AC3024B1000N
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Ameristar specializes in providing homeowners with superior comfort at an incredible value. Their M4AC3 air conditioner is the perfect choice for homeowners looking to stay cool without breaking the bank. The design prioritizes reliability and efficiency without sacrificing on the size or sound fronts. The result is an unobtrusive air conditioner that fits nearly anywhere and operates quietly and efficiently. With the M4AC3024B1000N, your home can count on affordable comfort for years to come.
  • Scroll Compressor
  • Ameristar uses a scroll compressor in the M4AC3024B1000N. Scroll compressors are more reliable and more efficient than older designs, with the added benefit of producing less operational noise.
  • Durable Design
  • A galvanized steel cabinet with four grille panels protects your equipment from environmental hazards while maintaining excellent airflow. The entire casing is treated with weather-resistant paint and then salt-spray tested to ensure corrosion resistance.
  • Efficient Cooling Coil
  • The M4AC3024B1000N's condenser coil features a design that maximizes heat transfer and airflow, allowing it to provide even, efficient cooling in temperatures as high as 115 degrees Fahrenheit.
  • Product Note
    The US Department of Energy regulates minimum efficiency standardsfor central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.

Specifications

M4AC3024B1000N
specs product image PID-58456
General Information
Type
Outdoor Condenser
Product Line
M4AC3
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Cooling Capacity
24000 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Nominal SEER Learn More
Nominal SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
13.0
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.3 Amps
Recommended Breaker Size
25 Amps
Dimensions
Product Height
24 15/16 Inches
Product Width
21 7/8 Inches
Product Depth
21 7/8 Inches
Product Weight
126 Pounds
Shipping Height
26 1/4 Inches
Shipping Width
22 43/48 Inches
Shipping Length
22 43/48 Inches
Shipping Weight
132 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
