Features
- USA Made
- All ST thermal expansion tanks are made in the USA at facilities certified for maintaining high-quality standards.
- Heavy Duty Tank
- From the deep drawn steel dome with rigid polypropylene liner to the welded air charge fitting, this thermal expansion tank is constructed from top to bottom for maximum strength and corrosion resistance.
- Eliminates Wasted Energy
- Expanded water caused by thermal expansion is collected by the ST tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
- Protection for Your System
- ST thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
- Adaptable
- Multiple tanks can be installed to accommodate large systems.

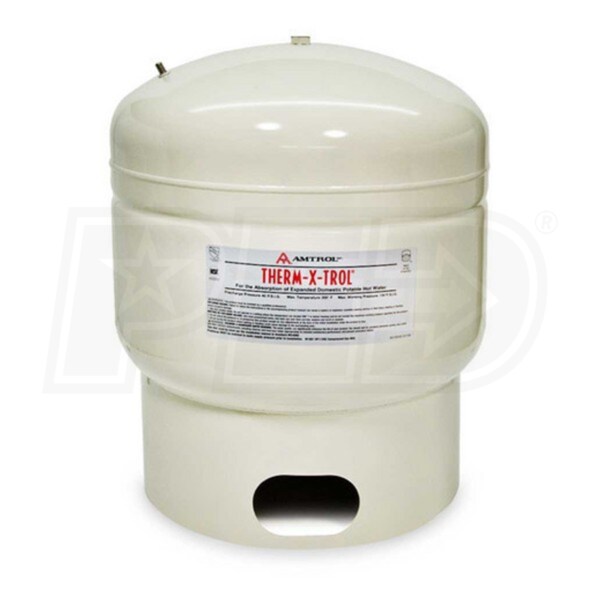

In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST vertical thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-25V is ideal for large residential and light commercial applications.
Specifications
ST-25V

Overview
Product Category
Water Heater - Expansion Tanks
UPC
642031395689
General Information
Product Line
Therm-X-Trol
Product Category
Water Heater - Expansion Tanks
Connection Type
NPT
Color
Tan
Capacity
10.3 Gallons
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
150 PSI
Dimensions
Maximum Acceptance Volume
10.3 Gallons
Connection Size
3/4 Inch
Product Diameter
15 3/8 Inches
Product Height
19 1/4 Inches
Shipping Height
19 Inches
Shipping Width
15 Inches
Shipping Length
15 Inches
Certifications
Country of Origin
United States
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(1)
Amtrol ST-25V Reviews & Ratings

Great Product but ....
By Ronald P.
Mechanicsburg, Pennsylvania
Purchased 02/26/2020 |
Review Posted 03/20/2020
Comes with a "Turbulator" --- a small piece of square-ish plastic with two very different ends. . The instruction set does not tell you which "end" of the Turblator goes into the expansion tank.
