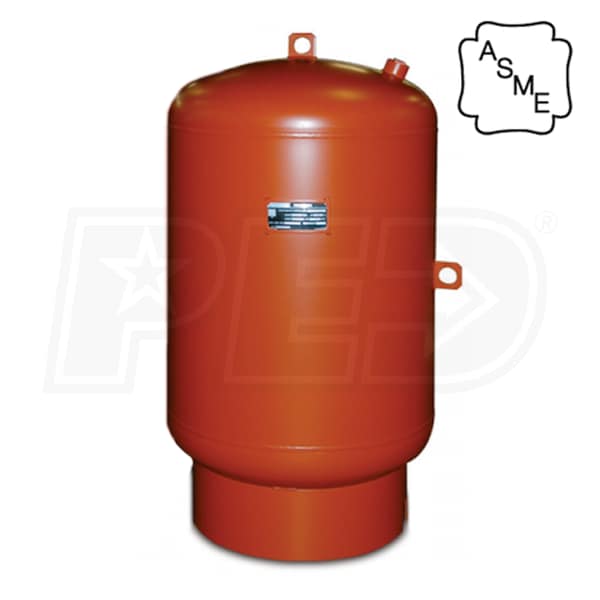

Amtrol Therm-X-Trol® - 14 Gallon - Vertical Thermal Expansion Tank - ASME Certified
Model:
ST-30VC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- USA Made, ASME Certified
- All ST-C thermal expansion tanks are made in US facilities and meet ASME Section VIII, Division 1 standards.
- Heavy Duty Tank
- Amtrol's diaphragm design features an ASME approved steel shell for increased strength, while its reduced diameter and weight allow for easy handling and installation.
- Eliminates Wasted Energy
- Expanded water collected by the Therm-X-Trol® tank returns the water back to your system, preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
- Protection for Your System
- Therm-X-Trol® thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
- Antimicrobial Protection
- The Therm-X-Trol® tank features an antimicrobial inner lining that neutralizes bacteria in your water system on contact. This safe, silver-ion technology targets only active microorganisms.
- Fresh Water Turbulator™
- The Therm-X-Trol's® Fresh Water Turbulator™ agitates the incoming water stream, creating a water-jet scrubbing action that prevents sediment buildup and extends the life of your tank.
In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed hot water systems. Today, they are continuing to roll out efficient and reliable tanks to improve your system. The Therm-X-Trol® vertical thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, this expansion tank is able to then return the water to the system when hot water is used. The Therm-X-Trol® also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the Therm-X-Trol® is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-30VC is ideal for large residential and commercial applications.
Product Note
This product must be shipped freight due to shipping restrictions on pre-charged expansion tanks.
Specifications
ST-30VC
General Information
Product Line
Therm-X-Trol
Casing
Steel
Flange Material
Stainless Steel
Connection Type
NPT
Color
Red
UPC
642031437570
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
150 PSI
Dimensions
Storage Volume
14 Gallons
Maximum Acceptance Volume
8.96 Gallons
Connection Size
3/4 Inch
Product Diameter
16 1/4 Inches
Product Height
19 5/16 Inches
Shipping Height
22 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Certifications
Country of Origin
United States
ASME Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
