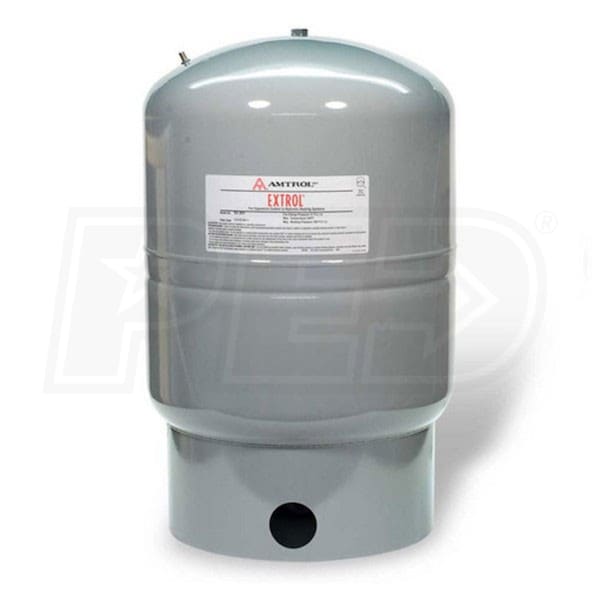

Amtrol Extrol - 14 Gallon - Vertical Boiler System Expansion Tank

Model:

SX-30V

Write A Review
$261.35
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Today, March 27th
Shipping to43085
synchrony card logo
$44 / Month
Suggested monthly payments with 6 month financing.
Amtrol Extrol - 14 Gallon - Vertical Boiler System Expansion Tank
Amtrol Extrol - 14 Gallon - Vertical Boiler System Expansion Tank
Model: SX-30V
$261.35
Features
Specifications
Reviews
How-To Articles
Manuals

Features

    In 1954, Amtrol invented the first expansion tank to control pressure build-up and energy consumption in heating and chilled water systems. More than 50 years later the SX is still the one of the world?s leading floor-standing expansion tanks and is proudly made in the USA! The SX vertical boiler system expansion tank collects expanded water as system temperatures rise, reducing potentially dangerous pressure build-up. Equipped with a 100 percent tested sealed air cushion, water-tight reservoir, air stem for pre-charge adjustment, and a deep drawn steel tank, the SX is reliable and built to last. The SX-30V is ideal for large residential and light commercial applications and can be used with high output boilers.
  • USA Made
  • All SX thermal expansion tanks are made in the USA.
  • Heavy Duty Tank
  • From the deep drawn steel tank to the water-tight reservoir for expanded water, this thermal expansion tank is constructed for maximum strength and efficient energy consumption.
  • Eliminates Wasted Energy
  • Expanded water caused by thermal expansion is collected by the SX tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
  • Protection for Your System
  • SX thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.

Specifications

SX-30V
specs product image PID-45584
Overview
Product Category
Boiler Accessories
UPC
642031118967
General Information
Product Line
Extrol
Product Category
Boiler Accessories
Connection Type
NPT
Performance
Maximum Operating Temperature
240 F
Maximum Operating Pressure
100 PSI
Dimensions
Storage Volume
14 Gallons
Maximum Acceptance Volume
11.3 Gallons
Connection Size
1 Inch
Product Diameter
15 Inches
Product Height
25 Inches
Shipping Width
15 Inches
Shipping Height
24 Inches
Shipping Length
15 Inches
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
