Aspen Mini Orange - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Model:
ASP-MO-UNI
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Designed for Versatile Installation
- Aspen Mini Split Condensate Pump Kits like the ASP-MO-UNI are not only designed to be truly silent systems, but also to focus on reliability with an anti-siphon device to keep air from seeping into your pump and causing priming issues.
- Performance that Packs a Punch
- The ASP-MO-UNI has a max flow rate of 3 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
- Plug & Play
- The ASP-MO-UNI is a no hassle, low maintenance unit that's ready to go right out of the box. Just hook up the pump and you're set.
- Universal Voltage
- The Aspen ASP-MO-UNI Mini Orange is compatible with all voltages allowing for an easy integration into your existing components.

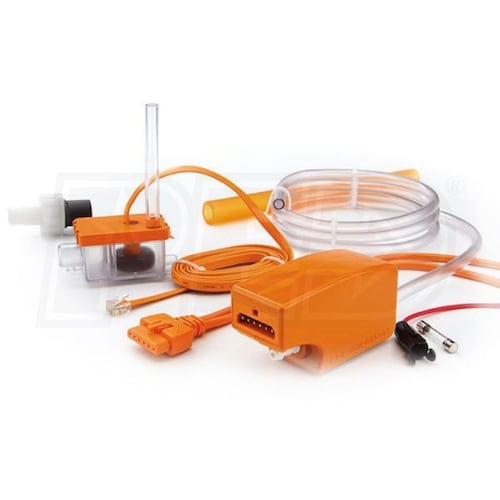

- Product Includes
- (1) 1.5m Plug & play power cable
- (1) Standard Reservoir
- (1) Optional Submersible Reservoir
- (1) 150mm Vinyl breather tube 6mm ID
- (1) Anti siphon device
- (1) 1.5m Suction Tube 6mm ID
- (1) 220mm Orange inlet hose 14mm ID
- (1) Drain connector kit
- (1) Fixing kit
- (1) Install manual
A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option and more power is needed. If you're using high wall split systems, you may need an alternative way to expel water that has been removed by the cooling system. Aspen's ASP-MO-UNI Mini Lime Condensate Pump is the world's best selling mini pump. It is a compact and discrete condensate pump, designed for great performance, plug and play installation and easy maintenance. Aspen's ASP-MO-UNI is perfect for smaller commercial and domestic units.
Product Note
The Aspen ASP-MO-UNI is suitable for use with small commercial or domestic ducted, floor standing and high wall mounted mini split systems. The ASP-MO-UNI is designed for above ceiling, inside conduit or inside evaporator installation.
Specifications
ASP-MO-UNI
Overview
Product Category
Mini Split Accessories
UPC
021449839099
General Information
Type
Condensate Pump
Product Line
Mini Orange
Product Category
Mini Split Accessories
Application
Standard
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
54000 BTU
Suction Lift
6.56 Feet
Maximum Head
32.81 Feet
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
21 dB
Condensate Removal Rate
3 GPH
Electrical Data
Current Draw
0.1 Amps
Dimensions
Product Height
1 1/3 Inches
Product Width
1 13/24 Inches
Product Depth
3 7/48 Inches
Product Weight
0.55 Pounds
Certifications
Country of Origin
UK
CSA Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
