Aspen Mini White - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Model:
ASP-MW-UNI
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
2
Model: WS-1
$75.00
In-Stock
$36.75
In-Stock
Features
- Designed for Versatile Installation
- Aspen Mini Split Condensate Pump Kits like the ASP-MW-UNI are designed to not only be the ultra-quick fix for your air conditioning set up, but also to focus on reliability with an anti-siphon device to keep air from causing priming issues.
- Performance that Packs a Punch
- The ASP-MW-UNI has a max flow rate of 3 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
- Universal Voltage
- The Aspen ASP-MW-UNI Mini White is compatible with all voltages allowing for an easy integration into your existing components.

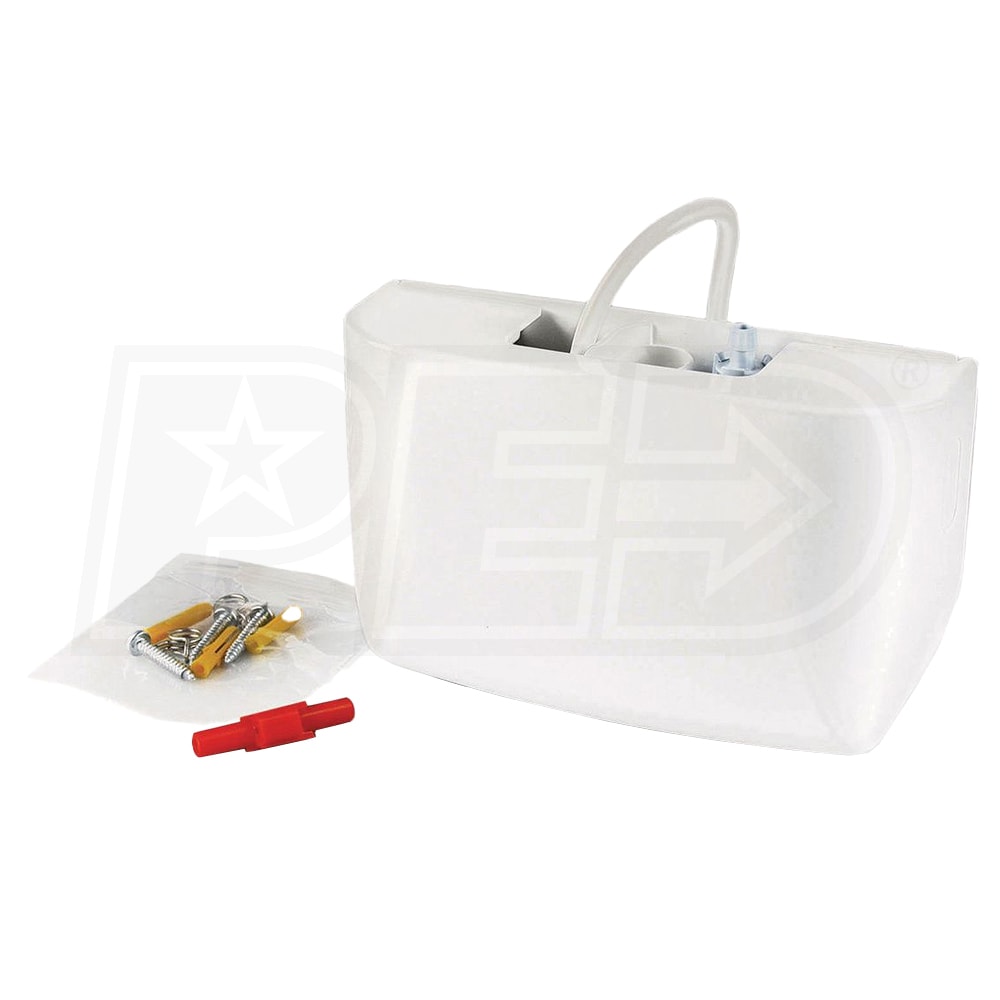

- Product Includes
- (1) Anti siphon device
- (1) Drain connector kit
- (1) Fixing kit
- (1) Install manual
A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option. If you're using a high wall system, ducted or free-standing units, you may need an ultra-quick alternative to expel water that has been removed by the cooling system. Aspen's ASP-MW-230 Mini White Condensate Pump is a compact and discrete pump, designed for great performance and easy maintenance. Aspen's ASP-MW-230 is perfect for applications where easy access to the reservoir for future maintenance is key. Plus, this unit is so small and quiet, you'll never even know it's there.
Product Note
The Aspen ASP-MW-UNI is suitable for use with domestic high wall mounted mini split systems. The ASP-MO-UNI is a compact condensate pump designed for installation below the wall mounted unit, where easy access for maintenance is key.
Requires 1/4" ID X 3/8" OD Tubing
Specifications
ASP-MW-UNI

Overview
Product Category
Mini Split Accessories
UPC
10021449839393
General Information
Type
Condensate Pump
Product Line
Mini White
Product Category
Mini Split Accessories
Application
Surface
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
54000 BTU
Maximum Head
32.81 Feet
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
21 dB
Condensate Removal Rate
3 GPH
Electrical Data
Current Draw
0.1 Amps
Dimensions
Product Height
4 25/48 Inches
Product Width
7 2/12 Inches
Product Depth
2 2/12 Inches
Product Weight
1.01 Pounds
Certifications
Country of Origin
UK
CSA Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(1)
Aspen ASP-MW-UNI Reviews & Ratings

working great
By Jesus G.
anthony, Texas
Purchased 06/17/2020 |
Review Posted 07/09/2020
Was a little tight to find the right spot for the pick up in my older unit but it fit. Working great at this time.
