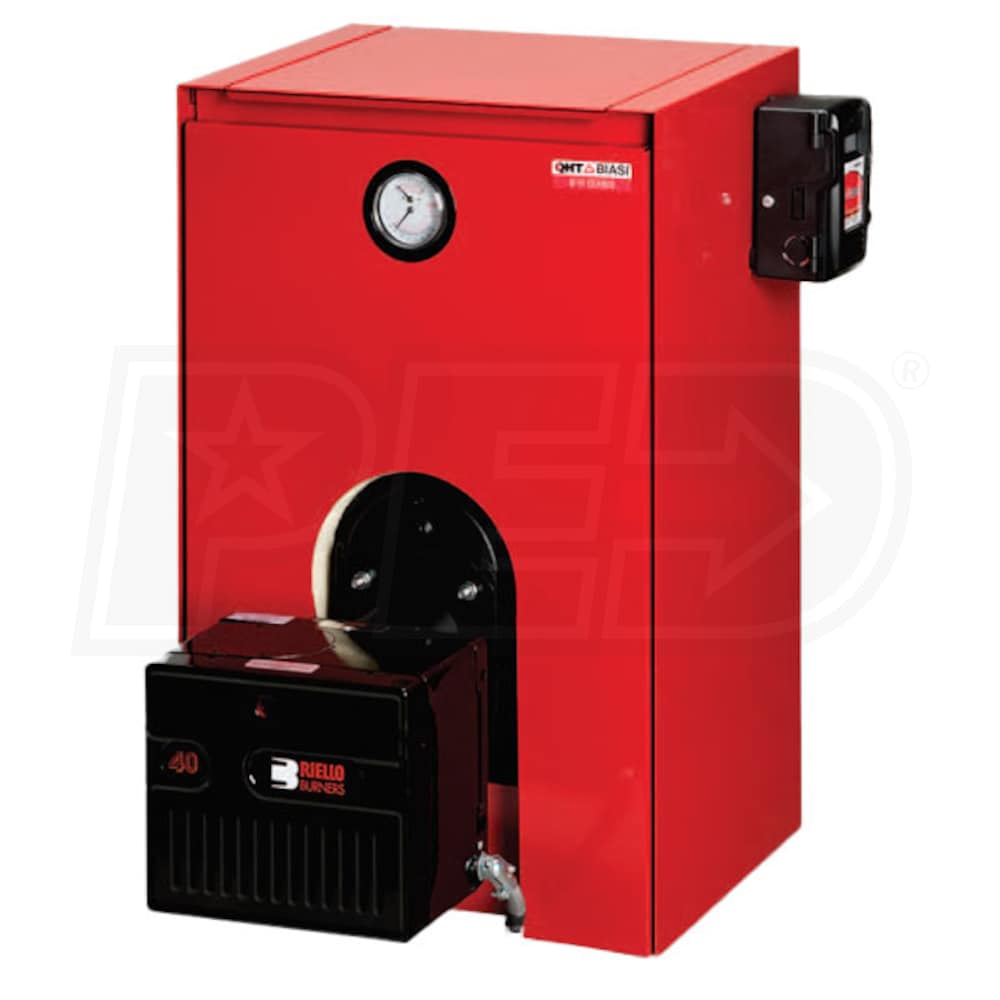

Biasi B-4 - 94K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent
Model:
B10/4-OIL
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 3 Pass Heat Exchanger
- A 3-pass boiler design is the most efficient way to get the maximum amount of heat from the fuel. There is three times as much interior surface area compared to a single pass boiler which in return, leads to being more fuel efficient.
- Durability
- This boiler is made out of GG20 cast-iron to ensure longevity of your boiler. This cast-iron also has superior heat retention which helps get the most out of your fuel.
- Big Things Come in Small Packages
- Biasi engineers pride themselves on how compact their boilers are. With it's small compact size and low water content, the B-10 boiler can fit just about anywhere you would like.
- (1) Biasi B10/4 - 94,000 BTU - Hot Water Boiler - NG - 86.8 % AFUE - Direct Vent (B10/4-KD)
- (1) Biasi B-10 - .95 GPH - Riello 40 Burner F3 (R40-F3-B3/4)
- (1) Biasi B-10 Boiler Control Kit with Hydrostat 3250 (B/10 KIT HYDRO 3250)
Developed for the high fuel cost environments of northern Europe, the Biasi B-10 boiler has proven to be a fuel efficient and reliable heating option. These same great boilers are now available here in North America. With an innovative three pass heat exchanger design, the Biasi B-10 boiler can save up to 40% over older single pass style models. With a high quality GG20 heat exchanger, and certifications from the ASME and UL, you can be sure the B-10 will be a safe, long lasting heating solution for your home.
Product Includes
Specifications
Product Includes
- (1) Biasi B10/4 - 94,000 BTU - Hot Water Boiler - NG - 86.8 % AFUE - Direct Vent (B10/4-KD)
- (1) Biasi B-10 - .95 GPH - Riello 40 Burner F3 (R40-F3-B3/4)
- (1) Biasi B-10 Boiler Control Kit with Hydrostat 3250 (B/10 KIT HYDRO 3250)
B10/4-OIL
General Information
Product Line
B-10
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Knockdown
Burner Model
Riello R40
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Input Rate
0.78 GPH
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
94000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
82000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
29 3/4 Inches
Product Width
18 3/4 Inches
Product Depth
28 19/48 Inches
Product Weight
332 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
ASME Certified
Yes
IBR Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
B10/4-KD
Dimensions
Product Height
29 3/4 Inches
Product Width
18 3/4 Inches
Product Depth
19 1/2 Inches
Product Weight
307 Pounds
R40-F3-B3/4
Dimensions
Product Height
8 1/2 Inches
Product Width
9 5/24 Inches
Product Depth
8 43/48 Inches
Product Weight
25 Pounds
Flange Connection
3.9 Inches
