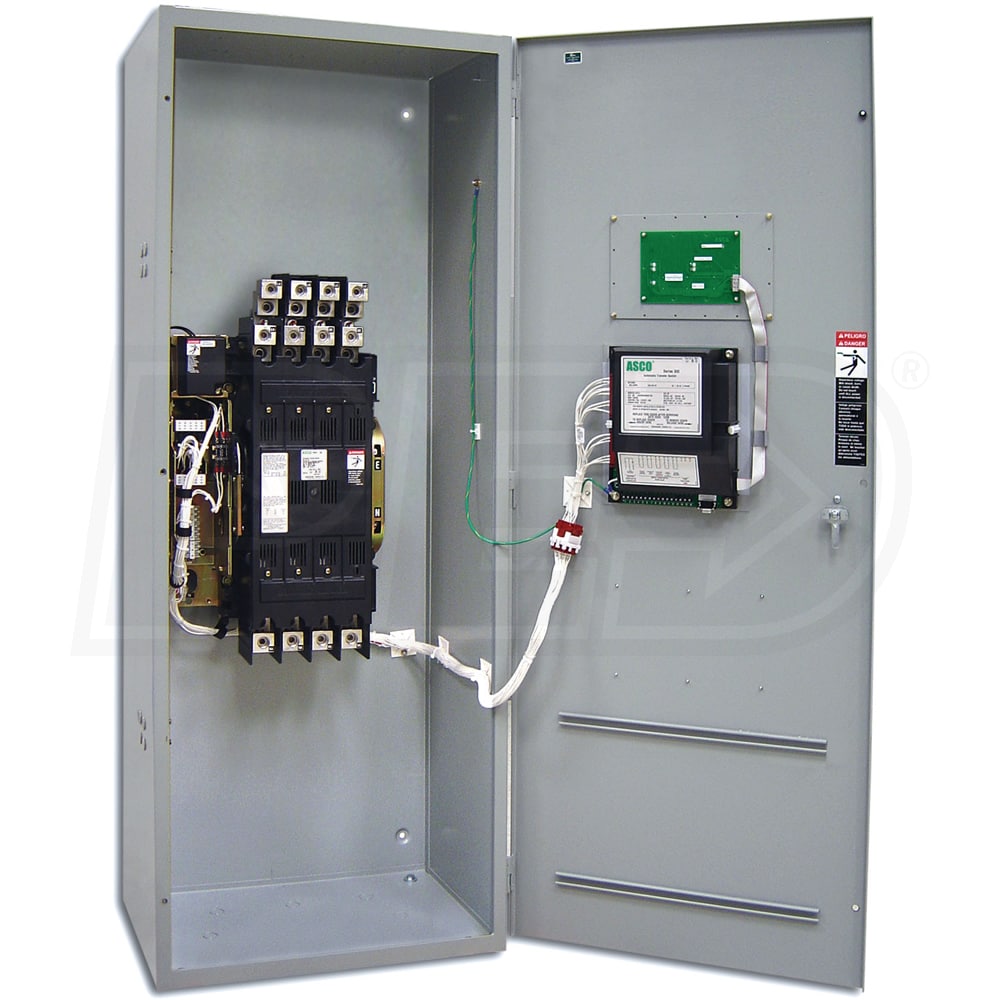

Briggs & Stratton By ASCO Series 285 - 400-Amp Automatic Transfer Switch (120/240V Single Phase)
Model:
071111
+
Share This Product
Features
- 400-Amp 285 Series By ASCO Automatic Transfer Switch (120/240V Single-Phase)
- Compatible with Briggs & Stratton Liquid Cooled generators
- NEMA 3R Outdoor Rated Enclosure
- Approved for indoor or outdoor installations
- Standard Installation
- Requires a sub-panel for overload protection
- True Double-Throw Contacts w/ Inherent Mechanical Interlocking
- Prevents connection of generator and utility source for maximum safety
- Terminals For Connection of Neutral and Ground Conductors
- Allows for easier installation
- Convenient Control Interface w/ Symbols & Visual Indicators
- Makes it easy to see transfer switch and power source status
- Built-In Auxiliary Contacts For Switch Position Indication
- Provides immediate indication when the switch positions changes
- Additional Features:
- Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
- Listed to UL 1008 for optional standby systems
- Please See Spec Sheet For Additional Compliance & Safety Standards
- 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
071111
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Consumer Warranty
3 Years
UPC
011675711115
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
