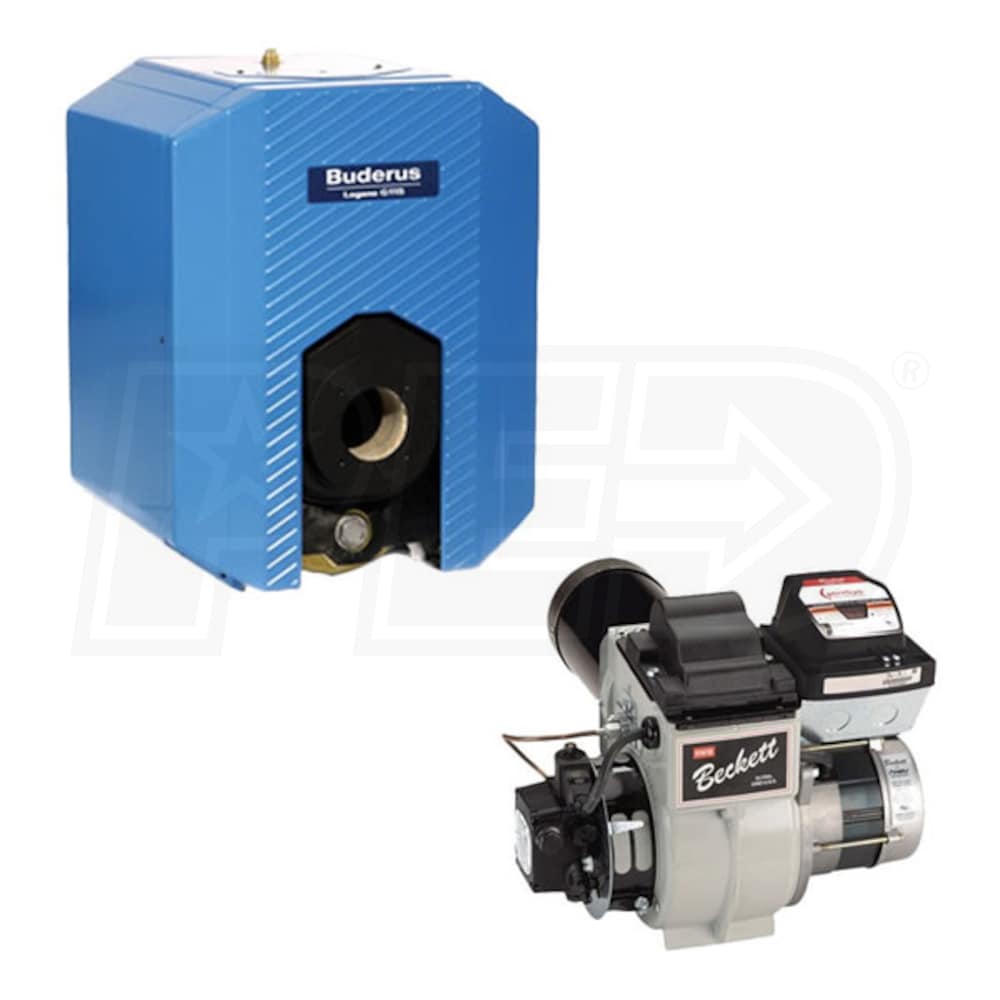

Buderus G115WS/5 - 136K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner
Model:
G115WS/5-AFG
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Ideal for New Installations or Renovations
- The G115WS boiler is ideal for both new construction and renovations of aged housing. Two ETL approved venting options ensure that proper venting can be achieved in old or new construction.
- Auto Adjusting Boiler Temperature
- Conventional boilers typically operate at a set temperature at all times. The G115WS, however, changes its internal water temperature to suit outdoor conditions. This dramatically increases efficiencies and boiler life.
- Included Leveling Legs
- Included with the G115WS boiler are a set of adjustable legs, allowing the boiler to remain level even on inclined surfaces.
- Flexible Cast Iron
- The heat exchanger of the Buderus G115WS boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.

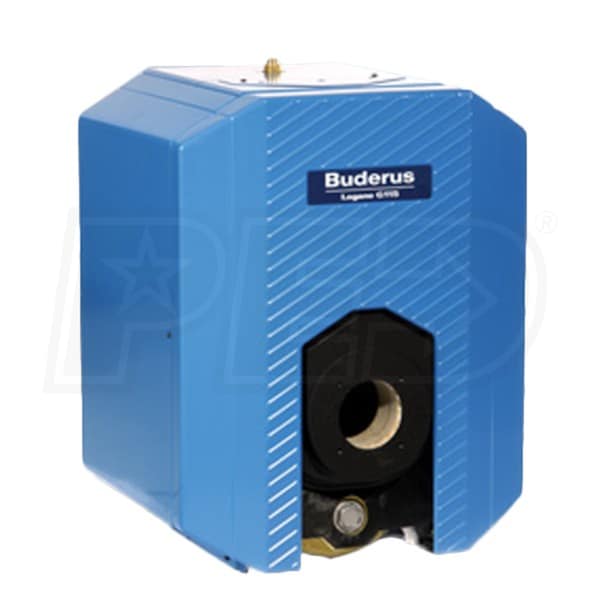

- (1) Buderus G115WS/5 - 136K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney or Direct Vent - Burner Sold Separately (G115WS/5)

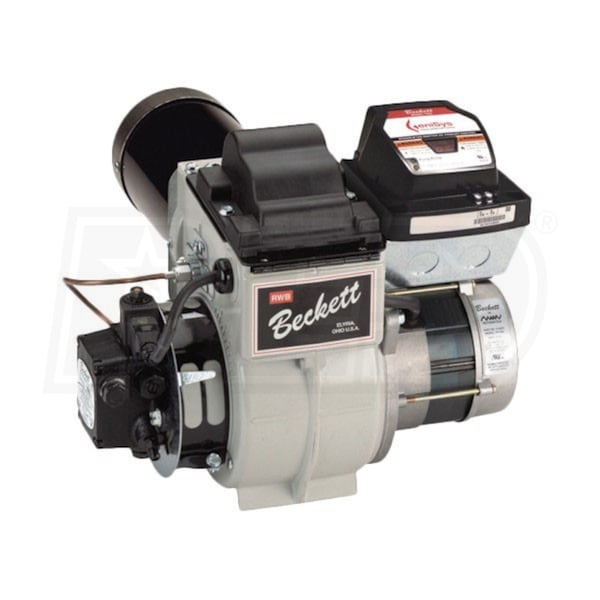

- (1) Buderus Oil Burner Kit for G115WS/5 - Beckett AFG - 1.15 GPH - Chimney Vent (7738004858)
The Buderus G115WS is an advanced oil boiler capable of impressive efficiencies. The stainless steel burner has the capability to pre-mix fuel and oxygenated air before combustion, resulting in a cleanly burning flame that emits remarkably low emissions. The G115WS has the ability to automatically adjust boiler heat to meet temperature demand using an outdoor reset control, both increasing efficiency and dramatically increasing the life of the boiler. An insulating enclosure and patented flexible cast iron rounds of a boiler package that will last you for years to come.
Product Includes
Specifications
Product Includes
- (1) Buderus G115WS/5 - 136K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney or Direct Vent - Burner Sold Separately (G115WS/5)
- (1) Buderus Oil Burner Kit for G115WS/5 - Beckett AFG - 1.15 GPH - Chimney Vent (7738004858)
G115WS/5-AFG
Overview
Product Category
Boiler
General Information
Product Line
G115WS
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Packaged
Includes Pump
Yes
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Input Rate
1.1 GPH
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
136000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
119000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
12.9 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Certifications
IBR Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
G115WS/5
General Information
Product Line
G115WS
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney or Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Input Rate
1.1 GPH
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
136000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
119000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
12.9 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Product Height
30 3/8 Inches
Product Width
23 2/3 Inches
Product Depth
33 2/3 Inches
Product Weight
476 Pounds
Certifications
IBR Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
Overview
Product Category
Boiler
7738004858
General Information
Product Line
G115WS
Product Category
Boiler
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
161000 BTU
Input Rate
1.15 GPH
Dimensions
Product Weight
10 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Boiler
