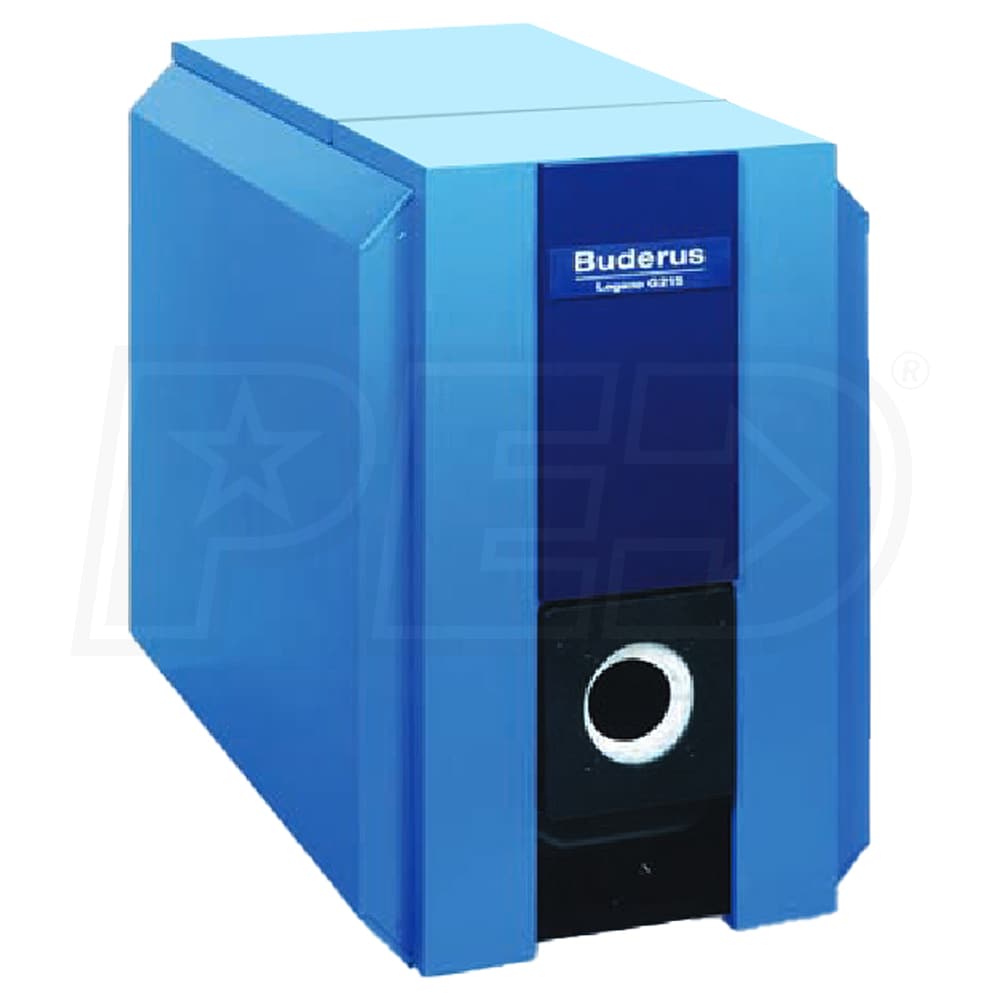

Buderus G215/3 - 134K BTU - 86.3% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately

Model:

G215/3

Write A Review
$2,903.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Buderus G215/3 - 134K BTU - 86.3% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately
Buderus G215/3 - 134K BTU - 86.3% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately
Model: G215/3
$2,903.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 22
Backflow Preventer
$159.00
In-Stock
$2,055.00
Only 1 In-Stock
$225.00
In-Stock
$1,729.00
Factory-Direct
Connection Type
$278.00
Only 4 In-Stock
$2,201.73
In-Stock
Connection Type
$273.00
Only 4 In-Stock
$1,939.00
Factory-Direct
$1,787.00
$56.00
Factory-Direct
$52.00
Factory-Direct
$1,268.00
Factory-Direct
$128.00
Factory-Direct
$101.00
Factory-Direct
$159.00
Factory-Direct
$237.95
$1,631.76
Factory-Direct

Features

    The Buderus G215 oil boiler is a complete home oil heating solution that works equally well in both new construction and renovations of existing buildings. The three pass heat exchanger extracts every last possible BTU of heat energy out of the oil supply, resulting in higher efficiencies across the board. The flexible cast iron included in the boiler's construction, giving the boiler fantastic resistance to thermal shock. Combined with its installation versatility and optimal connection placements, the G215 is a boiler package that will last your home for many years to come.
  • Three-Pass Heat Exchanger
  • The three-pass heat exchanger included with the G215 allows the water to be heated three separate times, allowing a higher water temperature to be maintained throughout the system while improving heating efficiency.
  • Fully Thermally Insulated
  • The G215 boiler is encased by three inches of thermal insulation, keeping generated heat inside the boiler during downtime and preventing heat loss during uptime.
  • Ideal for New Installations or Renovations
  • The G215 boiler is ideal for both new construction and renovations of aged housing due to its adaptive heat exchanger and optimal connection placement.
  • Flexible Cast Iron
  • The heat exchanger of the Buderus G215 boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.
  • Product Note
    The boiler has an optional Logamatic R2107 that can be purchased separately as an accessory and be mounted onto the top of the boiler.

Specifications

G215/3
specs product image PID-37459
Overview
Product Category
Boiler
General Information
Product Line
G215
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Semi-Packaged
Burner Model
Sold Separately
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
86.3 %
Input Rate
1.1 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
134000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
117000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
34 1/2 Inches
Product Width
23 1/2 Inches
Product Depth
26 1/4 Inches
Product Weight
400 Pounds
Certifications
IBR Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
