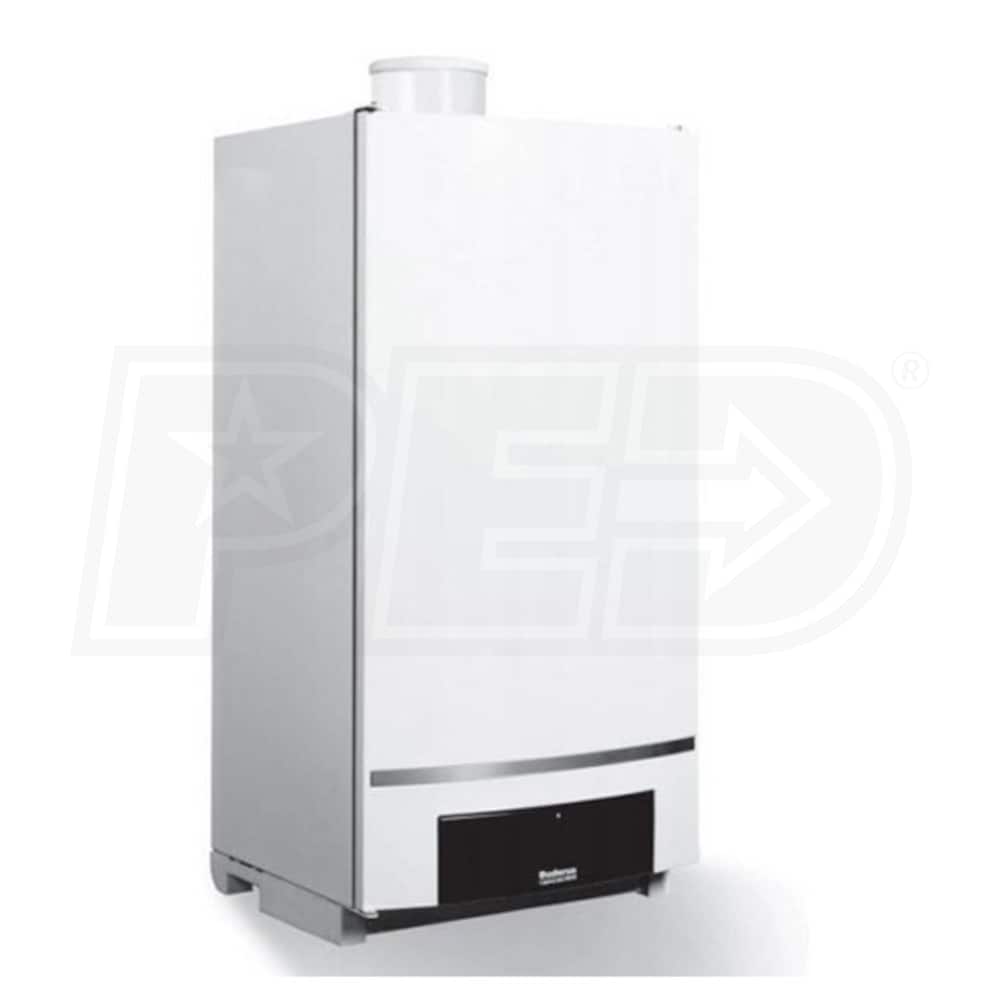

Buderus GB162-100 - 298K BTU - 96.1% AFUE - Hot Water Gas Boiler - Direct Vent
Model:
GB162-100
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Ultra-High Efficiency
- The GB162's state of the art condensing technology allows the boiler to achieve an AFUE of 96%. This incredible efficiency level brings your heating bills as low as possible.
- Included AM10 Outdoor Reset
- The GB162 line of boilers includes an AM10 outdoor reset control for optimal efficiency during temperate months.
- Prefabricated Low-Loss Header
- The GB162 comes with an internal low-loss header pre-installed. It ensures proper fluid flow rate throughout the unit, extending operation lifetime and bringing installation time down to an absolute minimum.
- Small Size and Low Installation Clearances
- Low installation clearances on all sides, wall mounting configuration, and small footprint translate into a boiler that can be installed almost anywhere.
The GB162 is Buderus's pinnacle offering of high efficiency condensing technology. Advanced modulation algorithims work together with modern condensing technology to produce astoundingly high efficiency levels. The small size of the GB162 combined with its minimal installation clearances give you a notable amount of installation flexibility. Also included with the boiler is a low-loss header, an internal manifold that guarantees proper fluid flow through the inside of the boiler at all times.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
GB162-100
Overview
Product Category
Boiler
General Information
Product Line
GB162
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Packaged
Includes Pump
No
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
96.1 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
333000 BTU
Minimum Input Capacity
69000 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
298000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
259000 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1 Inch
Flue Connection Size
4 Inches
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
51 29/48 Inches
Product Width
20 1/2 Inches
Product Depth
18 7/24 Inches
Product Weight
189 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
