Burnham 100240-02
Burnham 100240-02
Hover to zoom
1 Of 5

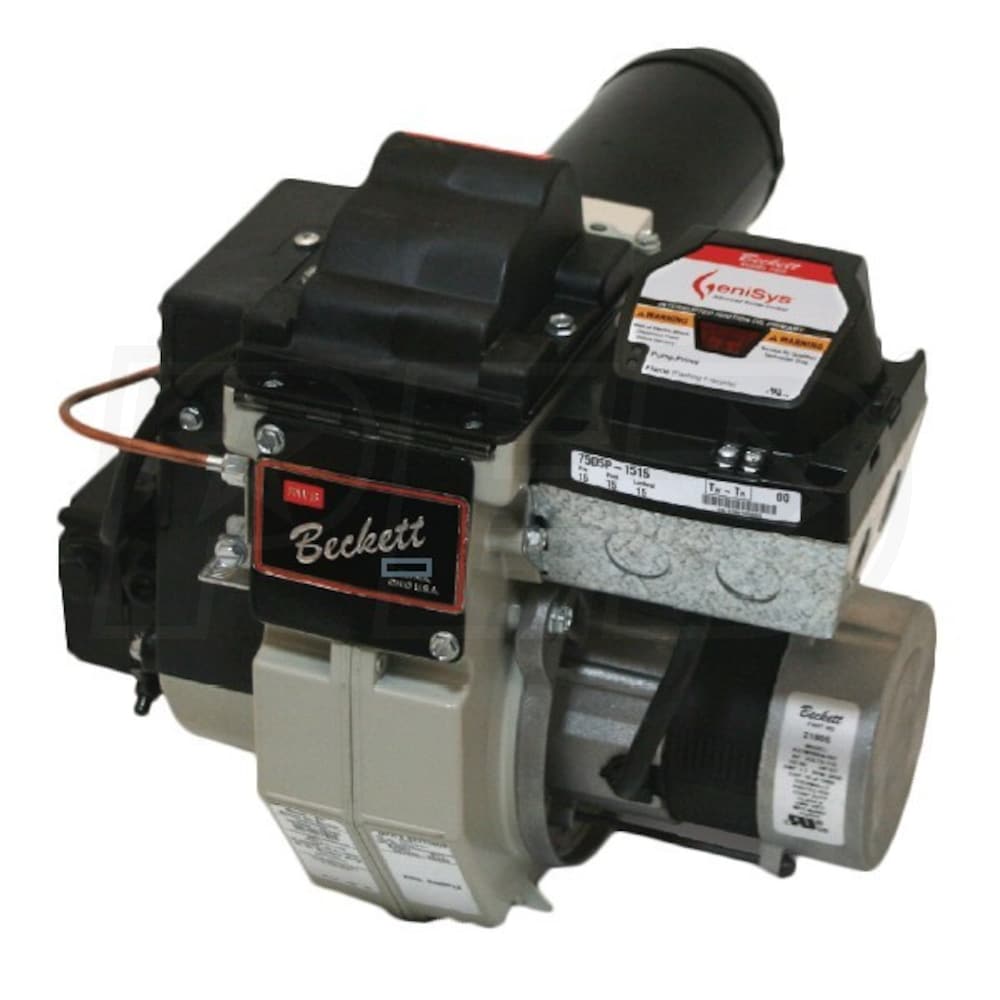

Burnham MPO-IQ - 1.05 GPH - Beckett NX Oil Burner - Direct Vented

Model:

100240-02

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Burnham MPO-IQ - 1.05 GPH - Beckett NX Oil Burner - Direct Vented
Burnham MPO-IQ - 1.05 GPH - Beckett NX Oil Burner - Direct Vented
Model: 100240-02
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Beckett has over 75 years of experience crafting oil burners for residential applications. Their NX oil burner is renowned for its whisper quiet operation and advanced design. This premium burner offers many advantages over traditional burners. The NX's air tube regulates flow for an ideal mix of fuel and air across an impressive air adjustment range. This provides clean, efficient oil burning for a vast array of applications. Additionally, Beckett located the NX's air intake above the oil pump to prevent lint and dust from accumulating near the burner. Despite the advanced design, the NX is no more difficult to service than a traditional oil burner. The result of Beckett's deliberate selection of components is a premium burner that is serviced with industry standard parts. Beckett's longevity in the oil burner market is no mistake; it is a result of their commitment to providing efficient, durable, cost-effective oil burning solutions for boilers like the MPO-IQ147 from Burnham.

    Product Features


    This NX burner is equipped to draw outside combustion air, making it suitable for use in direct vent applications.

    Product Compatible With
    • Burnham MPO-IQ147 Hot Water Boilers
    Product Note

    MPO-IQ direct venting requires a Beckett NX oil burner, a direct vent kit, and flex oil vent piping.

California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

100240-02
specs product image PID-37913
General Information
Product Line
MPO-IQ
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Performance
Input Rate
1.05 GPH
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
12 1/2 Inches
Product Width
15 Inches
Product Depth
9 1/4 Inches
Product Weight
30 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
