Features
- HydraStone Lining
- A 1/2" thick HydraStone lining protects the steel tank of all Alliance SL models. This lining deoxygenates the water along the edges of the tank, making it non-corrosive.
- Burnham Control Compatible
- Alliance SL indirect-fired water heaters are designed to work with Burnham's proprietary controls systems, IQ and Sage2.1. These systems can prioritize the Alliance SL over space heating and modify the water temperature for ideal recovery rates.
- Cold Water Diffuser
- A cold water diffuser in the tank prevents cold water from being introduced to hot water. This improves the output of the water heater.
- Product Includes
- (1) Burnham AL50SL Indirect-Fired Water Heater
- (1) Burnham 101379-01 TPI Control
Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient products on the market today. The Alliance SL is Burnham's foray into indirect-fired water heating. Using your boiler as a heat source means that the recovery rate of Alliance SL models is superior to that of standard direct-fired or electric water heaters. In addition to efficiency, the Alliance SL is also designed for simplicity. All connections are easily accessible at the top of the tank, where the heat exchanger is mounted. By mounting the heat exchanger here, it may be serviced without draining the tank. Easy to install, easy to service, and energy efficient, the AL50SL is the perfect water heating solution for any application.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
AL50SL
Overview
Product Category
Water Heater - Indirect-Fired
General Information
Type
Indirect Water Heater
Product Line
Alliance SL
Product Category
Water Heater - Indirect-Fired
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Application
Residential
Connection Type
Union
Material
Hydrastone-Lined
Capacity
50 Gallons
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
225 Gallons
Continuous Recovery Rate
171 Gallons
Dimensions
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Diameter
26 Inches
Product Height
40 3/4 Inches
Shipping Weight
248 Pounds
Certifications
Country of Origin
United States
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
10 Years
Reviews
(1)
Burnham AL50SL Reviews & Ratings
Product Q&A
(3)
Product Questions
Answered by Ken, the eComfort Product Expert
How do I flush out the tank?
Hector R.
from New York
May 08, 2016
How much boiler water flow do I need for a Burnham alliance SL 50? Or what size circulator do I need?
Matt
from Wisconsin
February 24, 2016
Please explain "indirect fired." Does it need to be connected to a existing boiler?
Fernando
from District of Columbia
September 13, 2015
How-To Articles
What Size Tankless Water Heater Do I Need
Size matters when it comes to your tankless water heater. In fact, it is t...
Signs You Need a New Water Heater
You’ve heard the stories. A 60-gallon hot water heater tank ruptures, flo...
An Intro to Indirect Water Heaters
If you heat your home with a boiler, you have the opportunity to get the most e...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

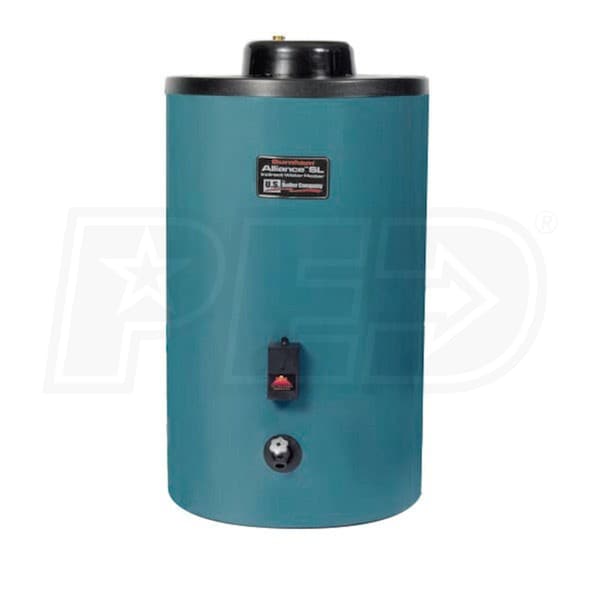

Burnham AL50SL - 50 Gallon - Indirect Water Heater
