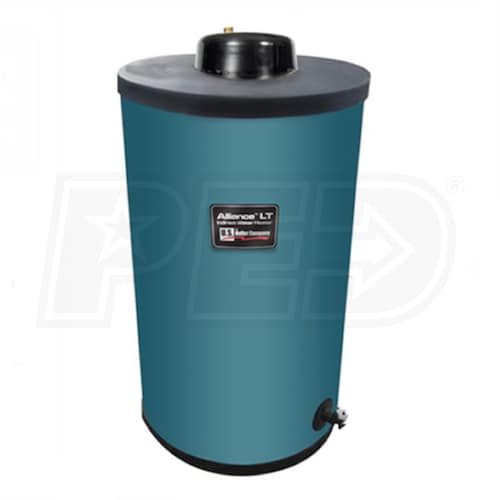

Burnham AL80LT - 80 Gallon - Indirect Water Heater

Model:

AL80LT

Write A Review
$1,914.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$319 / Month
Suggested monthly payments with 6 month financing.
Burnham AL80LT - 80 Gallon - Indirect Water Heater
Burnham AL80LT - 80 Gallon - Indirect Water Heater
Model: AL80LT
$1,914.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient products on the market today. The Alliance LT is Burnham's foray into indirect-fired water heating. Using your boiler as a heat source means that the recovery rate of Alliance LT models is superior to that of standard direct-fired or electric water heaters. In addition to efficiency, the Alliance LT is also designed for simplicity. All connections are easily accessible at the top of the tank, where the heat exchanger is mounted. By mounting the heat exchanger here, it may be serviced without draining the tank. Easy to install, easy to service, and energy efficient, the AL80LT is the perfect water heating solution for any application.
  • Thermoplastic Lining
  • The double-bonded thermoplastic tank liner of the AL80LT can handle even the most aggressive water conditions. It replenishes and rebalances the antioxidant levels in the tank, preventing rust and corrosion.
  • Burnham Control Compatible
  • Alliance LT indirect-fired water heaters are designed to work with Burnham's proprietary controls systems, IQ and Sage2.3. These systems can prioritize the Alliance LT over space heating and modify the water temperature for ideal recovery rates.
  • Minimal Maintenance
  • With the seamless, no-weld construction of the AL80LT, there is no need for an anode rod, reducing maintenance.
  • Cold Water Diffuser
  • A cold water diffuser in the tank prevents cold water from being introduced to hot water. This improves the output of the water heater.
  • Product Includes
  • (1) Burnham AL80LT Indirect Water Heater
  • (1) TPI Thermostat Control Module
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

AL80LT
specs product image PID-96118
Overview
Product Category
Water Heater - Indirect-Fired
UPC
672616779092
General Information
Type
Indirect Water Heater
Product Line
Alliance LT
Product Category
Water Heater - Indirect-Fired
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Application
Residential
Connection Type
Union
Material
Thermoplastic-Lined
Capacity
80 Gallons
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
260 Gallons
Continuous Recovery Rate
840 Gallons
Dimensions
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Diameter
28 Inches
Product Height
53 1/2 Inches
Shipping Weight
125 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
10 Years
