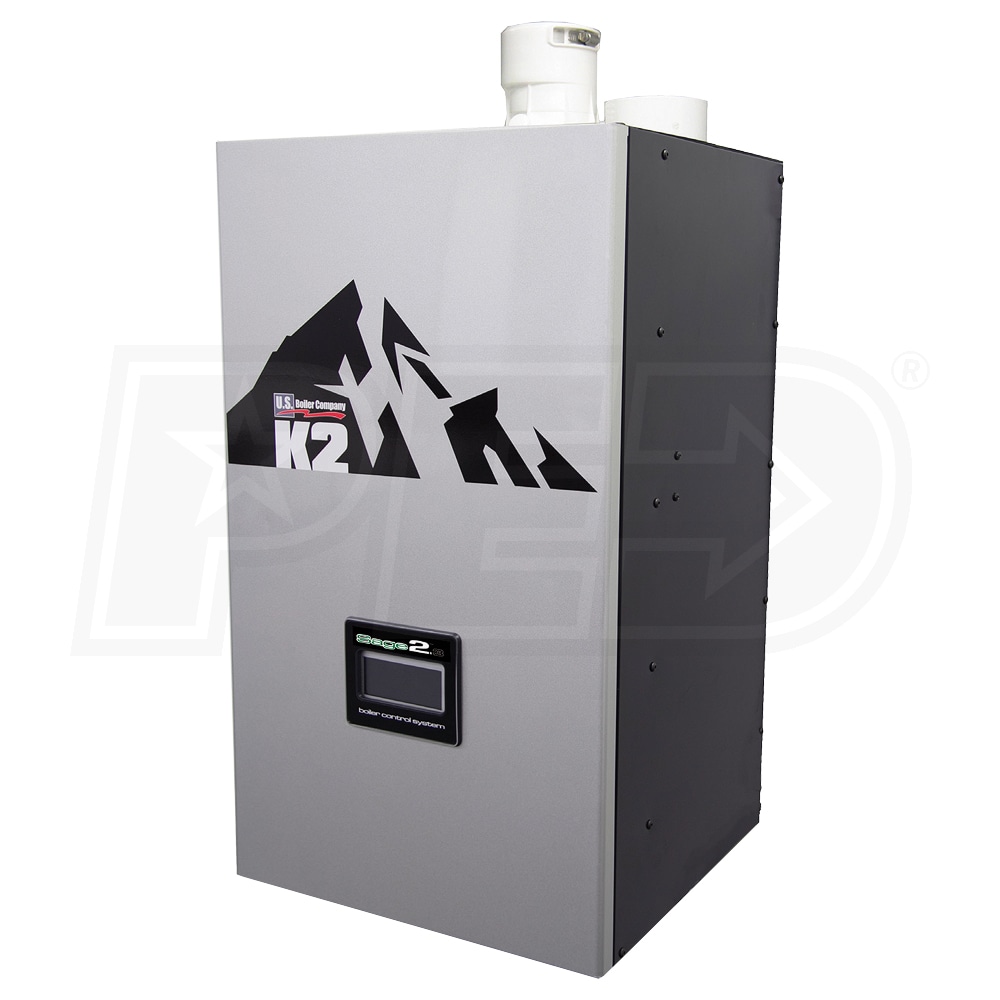

Burnham K2 - 112K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent
Model:
K2WT-120B-6G00
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- High Efficiency
- The K2 condensing boiler offers efficiency up to 95% AFUE, helping homeowners save on energy bills and reducing their carbon footprint.
- Versatility
- With a wide range of inputs and outputs available, the K2 can meet the heating demands of homes of various sizes and configurations.
- Revolutionary Control System
- The K2 features an advanced control system that helps optimize the boiler's performance while providing a simple and intuitive user interface.
- Durability
- Constructed with high-quality materials, the K2 is designed to withstand extreme weather conditions, ensuring reliable performance and longevity.
- Low Emissions
- The K2's low NOx design makes it environmentally friendly and compliant with the most stringent emission standards.
- Easy Installation and Maintenance
- The K2 is lightweight and compact, making it easy to install in tight spaces. Maintenance is also made simpler with easy access to all key components.
- Product Includes
- (1) Burnham K2 Hot Water Boiler
- (1) Wall Mounting Kit
- (1) Pre-Installed Boiler Loop Circulator
- (1) Universal Exhaust Vent Termination Kit
- (1) Miscellaneous Parts Kit
The Burnham K2 is a cost-effective condensing boiler that offers a range of features including easy setup, maintenance, and operation. The Sage2.3™ Control System enables high efficiency with a 10:1 turndown ratio, resulting in 95% AFUE for all sizes. The simplified design includes a hinged inner door for easy access to components and simplified venting options. The K2 is proudly built and tested in Lancaster, Pennsylvania.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
K2WT-120B-6G00
General Information
Product Line
K2
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Stainless Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural or Propane Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
UPC
672616760144
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
120 BTU
Minimum Input Capacity
12 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
112 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
97 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Turndown Ratio
10:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
29 Inches
Product Width
17 Inches
Product Depth
20 5/24 Inches
Product Weight
105 Pounds
Shipping Weight
105 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
No
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
9850400
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
