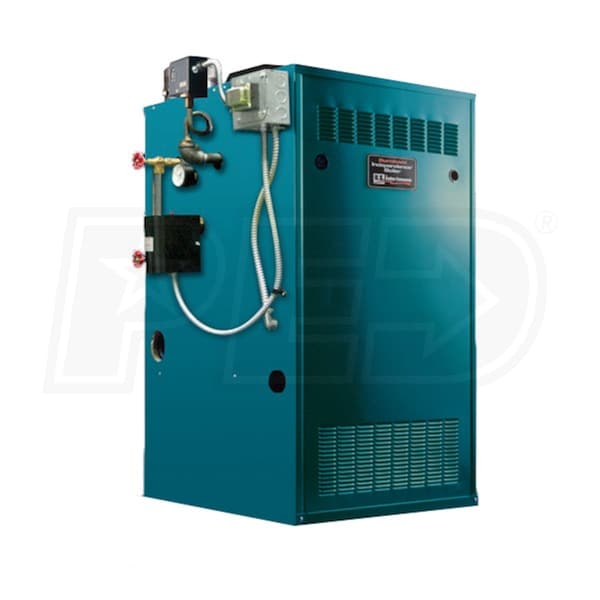

Burnham IN11 - 216K BTU - 82.5% Thermal Efficiency - Steam Gas Boiler - Chimney Vent - Trim and Damper Sold Separately
Model:
KIN11LNI-LL2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
2
These accessories are required to properly setup/install this product.
Model: 111146-01
$717.00
Factory-Direct
Model: 8116326
$271.59
Features
- Low Profile Venting
- The KIN11LNI-LL2's draft hood is smaller than natural draft boilers, and is shifted to the rear of the unit to save space. The Independence's low profile provides flexibility and makes it an ideal replacement boiler for all sorts of installations.
- Durable Construction
- Cast-iron construction of the boiler sections and stainless steel burners contribute to the incredible longevity of Independence models. The heat exchanger is also made of cast iron, which allows it to accept lower return water temperatures.
- Product Includes
- (1) Burnham KIN11LNI-LL2 Steam Boiler
- (1) Instruction Envelope
Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The Independence line brings reliability and simplicity to the forefront. Burnham's Independence boilers are an efficient, low profile solution for your hydronic heating needs. The large water volume of Independence boilers means that they are suited for a variety of applications. The KIN11LNI-LL2 has an insulated jacket that covers the gas valves and burner to improve not just heat retention and efficiency but safety as well. High quality Honeywell controls are also concealed within the jacket. If you are looking for a well-rounded, dependable steam boiler, you don't need to look further than the Independence.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
KIN11LNI-LL2
Overview
Product Category
Boiler
General Information
Product Line
Independence
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Knockdown
Gas Conversion Kit
Available
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
349000 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
288000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
216000 BTU
Efficiency Type
Thermal Efficiency
Efficiency
82.5 %
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Flue Connection Size
9 Inches
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
45 Inches
Product Width
40 1/2 Inches
Product Depth
25 Inches
Shipping Weight
885 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
AHRI Reference Number
2121937
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
9 Years
Reviews
(2)
Burnham KIN11LNI-LL2 Reviews & Ratings
Steam Gas Boiler Best Investment
By Terrance B.
Cumberland, Maryland
Purchased 10/03/2016 |
Review Posted 11/01/2016
Everything about this Boiler was right on. Everything was labeled correctly, And the instruction booklet made the piping allot easier than I was thinking.
Terrance B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
A great boiler
By Gio S.
New York City, New York
Review Posted 09/03/2016
I use the IN11 for a typical 6-fam 3-fl walk-up typical of Bay Ridge, Brooklyn. 5,000 sq.ft. living space.
Check the dimensions. Mine appears twice the length of the photo. Mine is
This is a high-efficiency unit that has streamlined my gas consumption. It's very easy to install and maintain. Sit it down on some flat 4" solid blocks, and assure a good fresh air intake method.
Just drain a half-gallon or so of dirty water every couple of weeks to keep things clean inside, and don't forget the water auto-feed!
Check the dimensions. Mine appears twice the length of the photo. Mine is
This is a high-efficiency unit that has streamlined my gas consumption. It's very easy to install and maintain. Sit it down on some flat 4" solid blocks, and assure a good fresh air intake method.
Just drain a half-gallon or so of dirty water every couple of weeks to keep things clean inside, and don't forget the water auto-feed!
Gio S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
