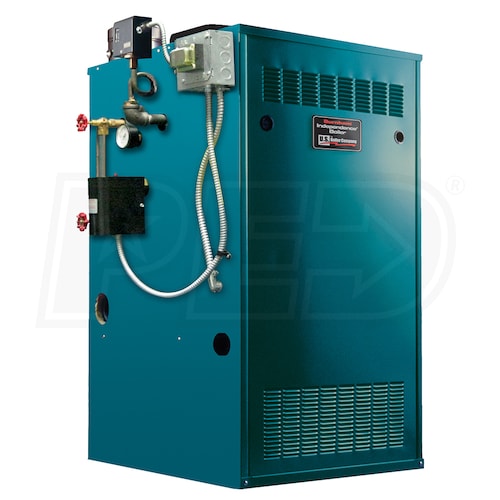

Burnham Independence Series - 144K BTU - 82.1% AFUE - Steam Gas Boiler - Chimney Vent - Semi-Packaged - Trim Sold Separately
Model:
SIN6LNI-LE2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- High Efficiency
- The Independence Series Gas Fired Water Boiler is designed for high efficiency with an AFUE rating of up to 84%. This means that it can provide more heat for less fuel consumption, resulting in lower energy costs.
- Durability
- This boiler is constructed with a cast iron heat exchanger which provides durability and resistance against thermal shock. Additionally, it has a low mass design that reduces the risk of thermal stress and mechanical failure.
- Easy Installation
- Featuring a compact design, the Independence Series Gas Fired Water Boiler can be easily installed in tight spaces. It comes fully assembled and wired and requires no special tools for installation.
- Versatility
- This boiler is ideal for use in both residential and commercial applications. It can be connected to multiple heating zones and can operate with both natural gas and propane, giving users flexibility in their heating choices.
- Product Includes
- (1) Burnham Independence Series Steam Boiler
- (1) Vent Damper
- (1) Instruction Envelope
The Burnham Independence Series has been the standard bearer in the industry of gas-fired boilers for many years. Its design, which includes a durable cast iron heat exchanger, sturdy steel base, and top-notch boiler controls, has proven to be reliable and beneficial for homeowners. Heating professionals nationwide trust the Independence Series to deliver comfortable, low maintenance warmth, which makes it a worthwhile investment for all homeowners.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
SIN6LNI-LE2
General Information
Product Line
Independence
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Semi-Packaged
Gas Conversion Kit
Available
UPC
672616027568
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
82.1 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
175 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
144 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
108 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
1/2 Inch
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
40 1/4 Inches
Product Width
24 1/4 Inches
Product Depth
35 3/4 Inches
Shipping Weight
555 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
No
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2101404
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
