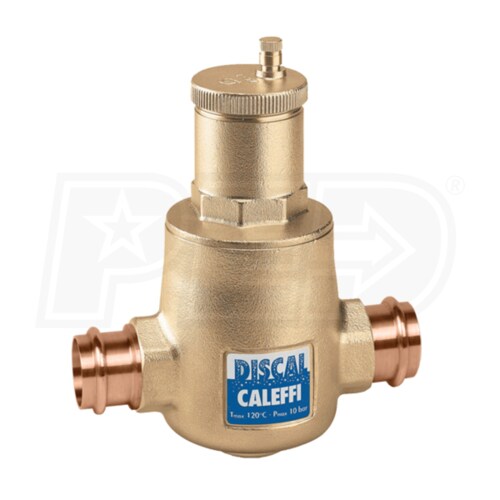

Caleffi DISCAL® Air Separator with 1/2" Bottom Thread - 1-1/4" Integral Press Connections
Model:
551067A
+
Share This Product
Features
- Anti-Rotation & Anti-Vibration Float
- The Caleffi DISCAL® creates space between the float and air vent wall to prevent float hang-up due to debris or variations in the separator's orientation.
- Anti-Corrosion Coalescing Mesh
- The DISCAL® is constructed with glass-filled nylon mesh, which is more resistant to dissolved oxygen and acidic fluids than plated metals.
- Corrosion Resistant
- With all components being 100% corrosion resistant, the DISCAL® ensures proper system effectiveness throughout the long-lasting life of the separator.
- High Capacity
- The DISCAL's® highly effective automatic air elimination is due in part to its large-diameter chamber. The chamber slows fluids dramatically, combining with a concentric, sharp-edged mesh design to cause micro-bubbles to collect and coalesce.
- Stainless Steel Float Linkages
- Featuring robust stainless steel float linkages, the DISCAL® keeps a reliable float alignment even during turbulent conditions.
The Caleffi DISCAL® air separator continuously removes air contained in hydronic heating and cooling systems. The special internal shape of the separator body allows for low head loss while removing air down to micro-bubble levels. The DISCAL® features anti-corrosion and turbulence resistant components to ensure your heating or cooling system runs effectively and efficiently.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
551067A
Overview
Product Category
Boiler Accessories
UPC
8016615551198
General Information
Type
Air Separator
Product Line
Discal
Product Category
Boiler Accessories
Connection Type
Press
Material
Brass
Performance
CV Value
56
Maximum Flow Rate
15 GPM
Minimum Operating Temperature
32 F
Maximum Operating Temperature
250 F
Dimensions
Connection Size
1 1/4 Inches
Product Height
7 1/2 Inches
Product Width
7 1/2 Inches
Product Depth
7 1/2 Inches
Product Weight
5 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
