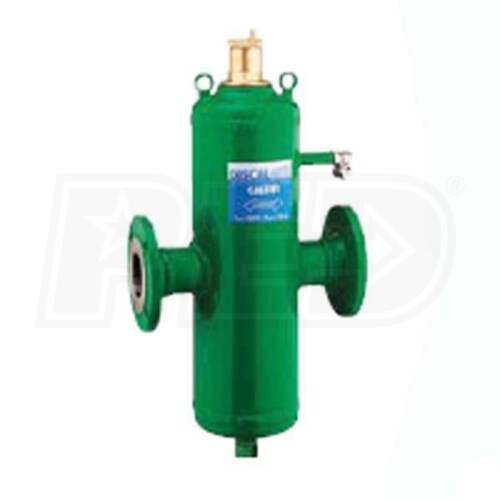

Caleffi Air & Dirt Separator - 3" Flange Connections - ASME & CRN Certified

Model:

NA546080A

Write A Review
$4,685.81
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$59 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Caleffi Air & Dirt Separator - 3
Caleffi Air & Dirt Separator - 3" Flange Connections - ASME & CRN Certified
Model: NA546080A
$4,685.81
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The Caleffi Air & Dirt Separator cleanses and purifies hot or chilled systems. Both microparticles and microbubbles pose a long term risk to the health and effectiveness of water systems. The Caleffi Air & Dirt Separator controls this issue by automatically dispersing microbubbles and forcing microparticles to the bottom of the unit where they can be safely discharged even while the system is operating. The beauty of the Caleffi Air & Dirt Separator is in that you do not need separate units, creating a simple and effective system. The Caleffi Air & Dirt Separator has a Flow Capacity of 95 GPM and a CV of 95.
  • Caleffi NA546080A Features
  • Stainless steel interior
  • Collects dirt particles as small as 5 microns
  • Connection Type: Flange
  • Connection Size: 3 Inches
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

NA546080A
specs product image PID-24439
Overview
Product Category
Boiler Accessories
General Information
Type
Air and Dirt Separator
Product Category
Boiler Accessories
Separator Type
No
Connection Type
Flanged
Material
Steel
Performance
CV Value
95
Maximum Flow Rate
95 GPM
Minimum Operating Temperature
32 F
Maximum Operating Temperature
250 F
Dimensions
Connection Size
3 Inches
Product Weight
73 Pounds
Shipping Weight
83 Pounds
Certifications
Certifications
ASME and CRN
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
