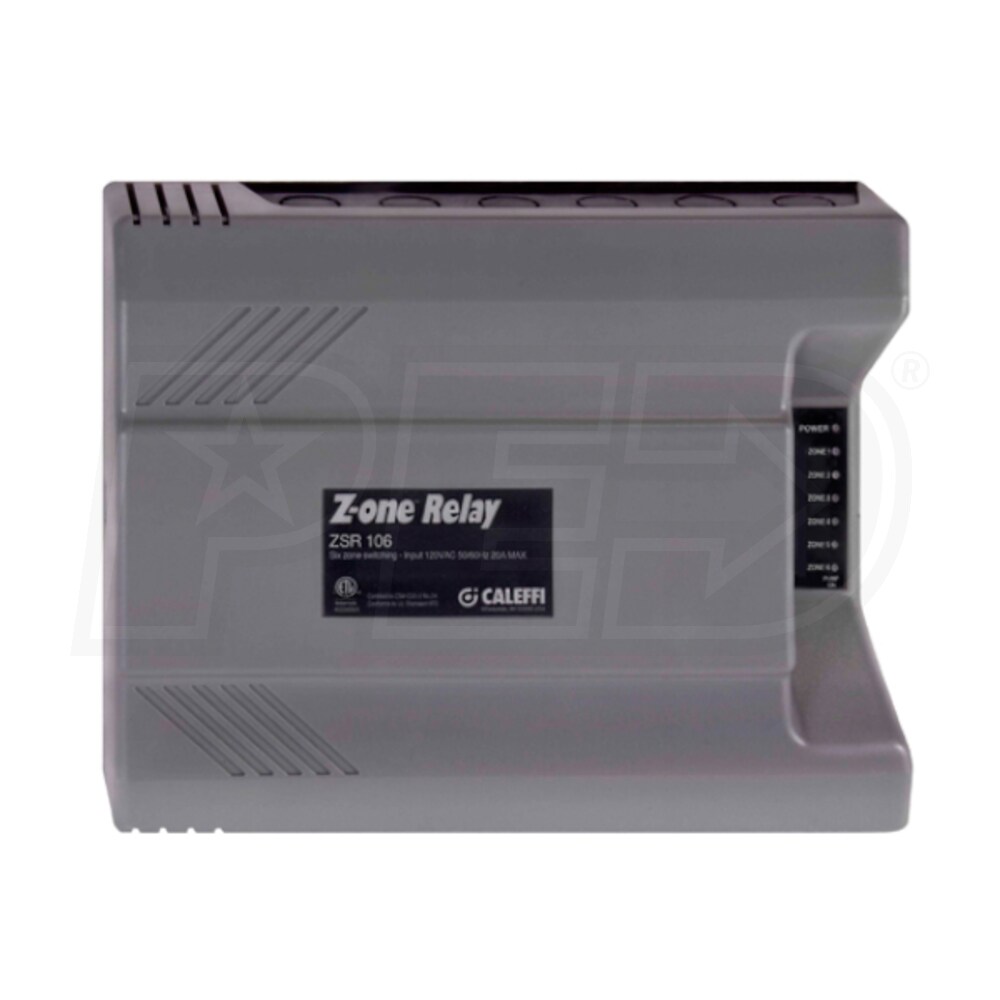

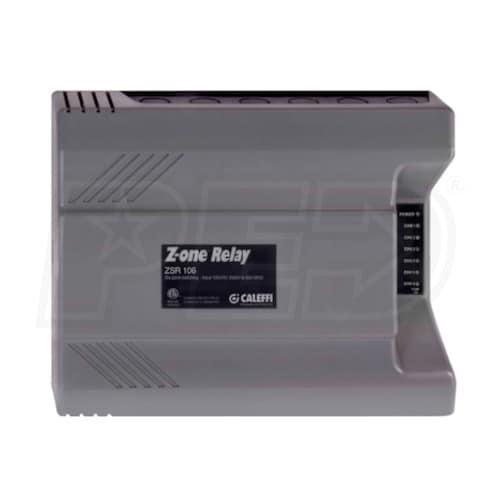

Caleffi Z-One™ - Zone Switching Relay - Six Zones - Expandable

Model:

ZSR106

Write A Review
$292.65
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$49 / Month
Suggested monthly payments with 6 month financing.
Caleffi Z-One™ - Zone Switching Relay - Six Zones - Expandable
Caleffi Z-One™ - Zone Switching Relay - Six Zones - Expandable
Model: ZSR106
$292.65
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The Caleffi ZSR106 is a multi-zone switching relay operated by low voltage thermostats or controllers. Controlling up to six zone pumps and a primary pump, the ZSR106 is a convenient solution for pump control in multi-zone hydronic heating systems. The ZSR106's installer friendly design saves time and money while its durable build ensures proper operation for years to come.
  • Installer Friendly
  • The Caleffi ZSR106 features ample room for terminations, large screw terminals, an automatic resettable fuse and snap-in transformers to make installation a breeze.
  • Versatile
  • With three selectable 120 VAC auxiliary switches, dedicated pump outputs and unlimited zone expansion, the ZSR106 is an incredibly versatile unit in a small package.
  • Universal Compatibility
  • The ZSR106 features configurable pump logic along with the ability to connect to 2, 3 and 4 wire zone valves and thermostats.
  • Additional Features
  • Primary pump output
  • Three dry contacts for enabling boilers and pumps
  • Selectable priority, pump exercise, post purge zone, remote enable and primary pump status with DIP switches
  • Twelve 1/2" electrical knockouts
  • LED function lights
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ZSR106
specs product image PID-102881
Overview
Product Category
Thermostats and Controls
UPC
8016615438130
General Information
Product Line
Z-One
Product Category
Thermostats and Controls
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
6
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Maximum Load
20 Amps
Dimensions
Product Height
9 1/4 Inches
Product Width
11 Inches
Product Depth
3 Inches
Product Weight
2 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
