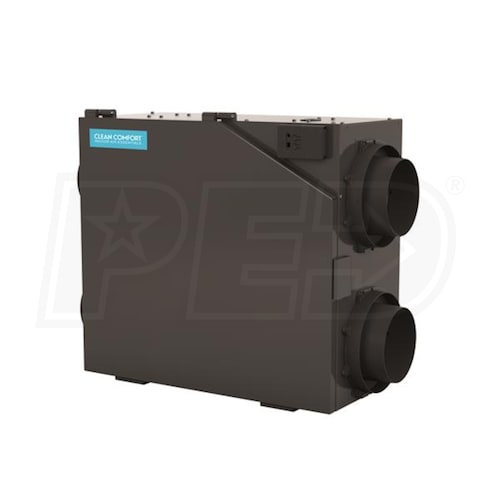

Clean Comfort VH Series - 160 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6"
Model:
VH30160
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Air Quality Protection
- Clean Comfort Recovery Ventilators take care of the air you breathe by going beyond heating and cooling, removing odors and ensuring pollution-free comfort and exceptional indoor air quality.
- Advanced Defrost Operation
- Clean Comfort's VH30160 supplies your home with fresh outdoor air even while preventing freezing by gradually adjusting intake fan speed.
- Control Flexibility
- The VH30160 features a number of optional controls to select from that offer a variety of operating modes too allow you to make system-specific adjustments.
- Dual-Motor Defense
- Clean Comfort's independently controlled dual motors allow for easy balancing with air dampers, providing increased precision and optimal home pressurization.
- Easy Ducting Connections
- Clean Comfort recovery ventilators feature an exclusive ISF (Insert, Slide and Fix) collar system that makes installation and maintenance easier than other manufacturers' devices.
Homes today are being built to be more energy efficient than ever before. While this has meant increasingly lower energy bills, it has also eliminated the cracks and gaps that used to provide natural ventilation for our homes. While opening a window is a great way to bring in fresh air, for many people, it is only an option for a few weeks each year. A heat recovery ventilator (HRV) like the VH30160 will remove stale air from your home and replace it with fresh indoor air. While doing so, it will also capture close to 70% of the excess heat in the exhaust air and use it to preheat the incoming air. The VH30160 will supply fresh air to your home year round, while also minimizing the additional load on your heating and cooling equipment.
Specifications
VH30160
Overview
Product Category
Heat Recovery Ventilators (HRVs)
UPC
663051489325
General Information
Type
HRV
Product Line
VH
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Port Location
Side
Core Material
Polypropylene
Performance
Maximum Air Flow
160 CFM
Apparent Sensible Effectiveness
75 %
Minimum Air Flow
30 CFM
Sensible Recovery Efficiency
66 %
Electrical Data
Voltage
120 Volts
Power Consumption
142 Watts
Phase
1
Frequency
60 Hz
Current Draw
1.5 Amps
Dimensions
Condensate Drain Size
1/2 Inch
Duct Connection
6 Inches
Product Height
22 1/2 Inches
Product Width
29 1/2 Inches
Product Depth
11 3/8 Inches
Product Weight
43 Pounds
Shipping Weight
48 Pounds
Exchanger Area
85 Square Feet
Certifications
CSA Listed
Yes
UL Listed
Yes
HVI Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Motor Warranty
10 Years
