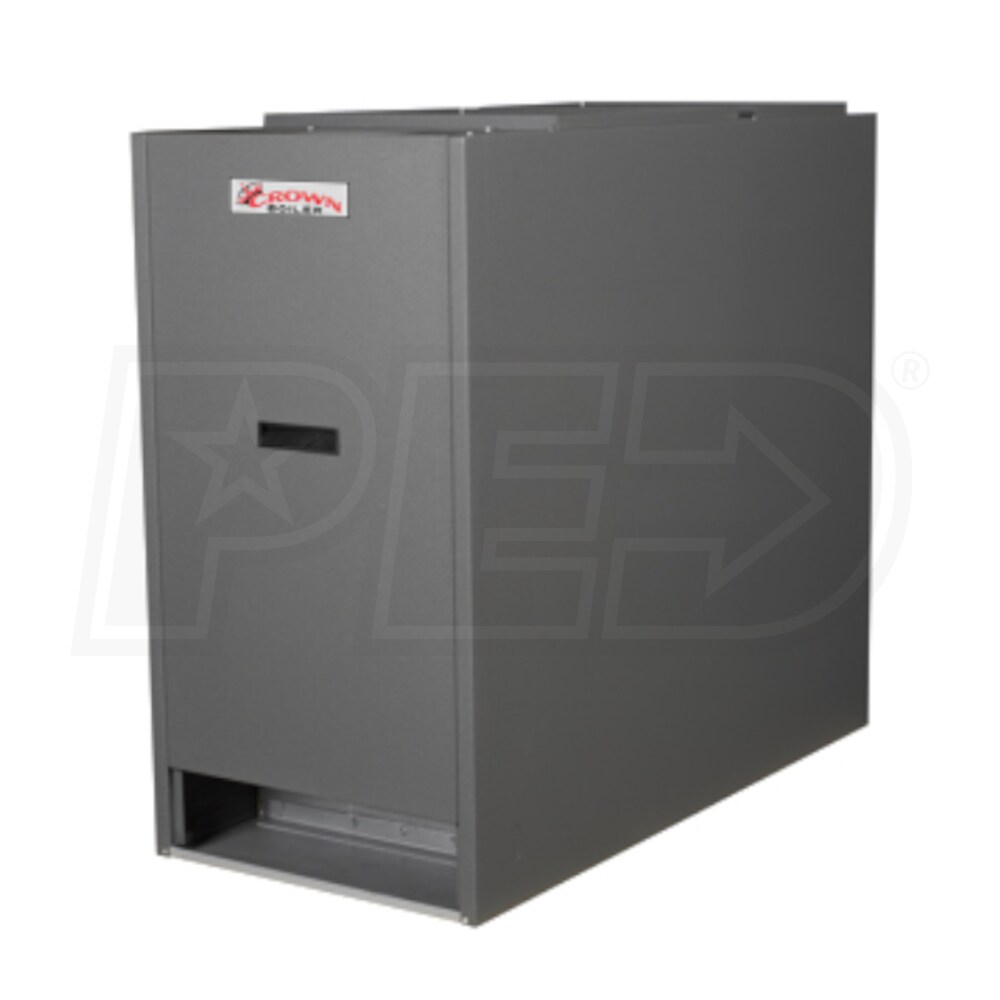

Crown Boiler Low Boy Rear - 114K BTU - Oil Furnace - 85% AFUE

Model:

VCLBR68-112CBP

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Crown Boiler Low Boy Rear - 114K BTU - Oil Furnace - 85% AFUE
Crown Boiler Low Boy Rear - 114K BTU - Oil Furnace - 85% AFUE
Model: VCLBR68-112CBP
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Crown Oil Furnace includes a heavy gauge, drum-style heat exchanger to provide powerful forced air heating. The oil furnace features a ceramic fiber combustion chamber along with a multi-speed blower motor to heat your home quickly and efficiently. With a limited lifetime warranty on the heat exchanger, you can be confident that the Crown Oil Furnace will provide comfort for years to come.
  • Crown VCLBR68-112CBP Features
  • Heavy Gauge, Drum-Style Heat Exchanger
  • Ceramic Fiber Combustion Chamber
  • Heavy Duty 22-Gauge Powder Coated Cabinet
  • Multi-Speed Direct Drive Blower Motor
  • Limited Lifetime Warranty on Heat Exchanger
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

VCLBR68-112CBP
specs product image PID-103192
General Information
Type
Oil Furnace
Product Sub-line
Low Boy Rear
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
PSC Multi-Speed
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
UPC
645504509411
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Heating BTU
114000
High Fire Output
114000 BTU
Low Fire Output
70000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Product Height
41 1/2 Inches
Product Width
47 Inches
Product Depth
22 1/4 Inches
Shipping Weight
300 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10591309
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
