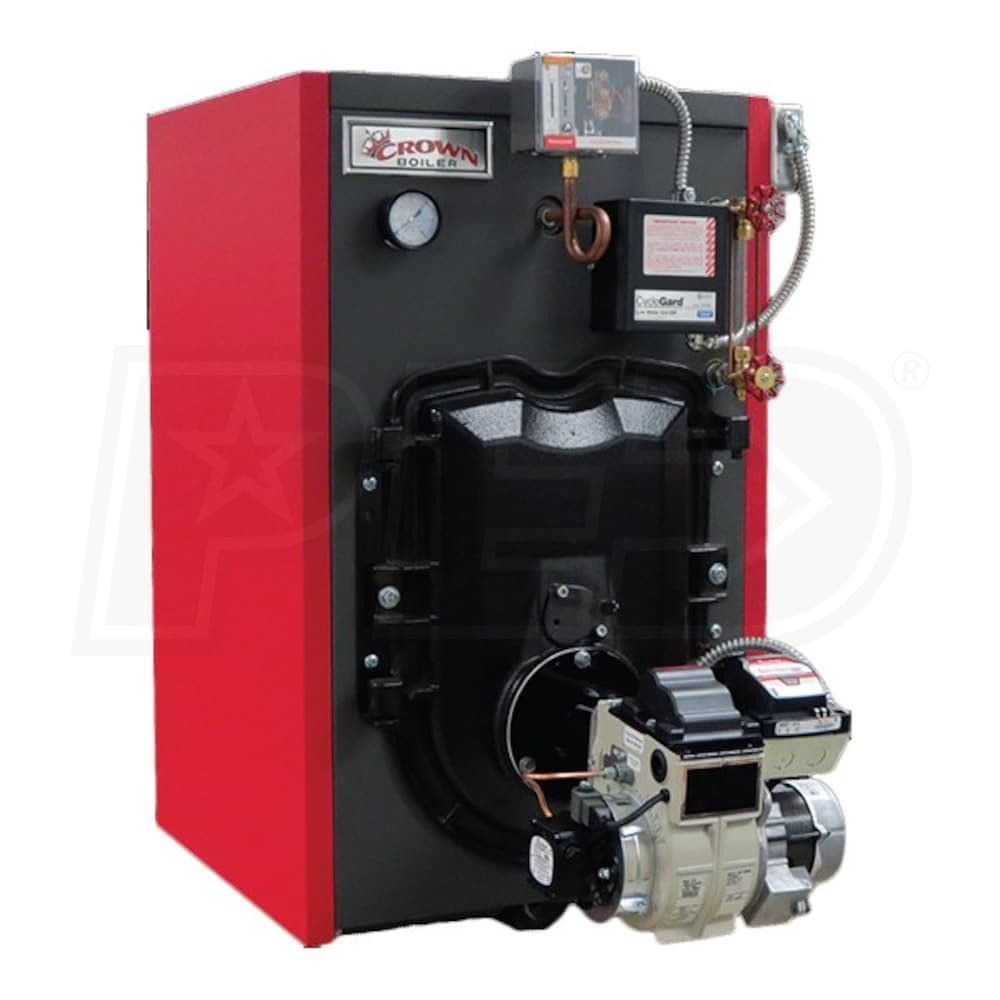

Crown Boiler FSZ100 - 92K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent

Model:

FSZ100BOLZ1SSU

Write A Review
$4,050.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$51 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Crown Boiler FSZ100 - 92K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent
Crown Boiler FSZ100 - 92K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent
Model: FSZ100BOLZ1SSU
$4,050.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Crown Freeport boiler is an oil fired boiler designed from the ground up to maximize efficiency. At its core is a three-pass cast iron heat exchanger - the flue gases are circulated through three separate heat exchange passages to maximize heat transfer to the water. A front side swinging burner door provides easy access to all heating surfaces, making routine maintenance an easy task.
  • Three-Pass Cast Iron Heat Exchanger
  • The Freeport series of oil fired boilers uses a three-pass cast iron heat exchanger. The combusted flue gases pass three times over the heat exchanger, maximizing the amount of heat energy transferred to the heat transfer medium.
  • Easy-Access Front-Opening Door
  • The Freeport burner orifice is located on a front opening burner door. All heating surfaces can be accessed for cleaning using this door, making cleaning and maintenance a breeze.
  • Included Beckett AFG Burner
  • This boiler comes with a Beckett AFG oil burner included. Beckett is a well known industry burner brand whose burners have proven reliable and efficient in thousands of boiler installs.
  • Product Includes
  • Freeport Oil Fired Boiler with Heat Exchanger
  • Taco Circulation Pump
  • Beckett AFG Burner
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

FSZ100BOLZ1SSU
specs product image PID-47489
Overview
Product Category
Boiler
General Information
Product Line
Freeport
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Beckett AFG
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
86 %
Input Rate
1.0 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
122000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
92000 BTU
Maximum Fluid Temperature
190 F
Maximum Operating Pressure
15 PSI
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
14.9 Gallons
Flue Connection Size
6 Inches
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
38 1/2 Inches
Product Width
22 1/4 Inches
Product Depth
22 1/2 Inches
Product Weight
607 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
AHRI Reference Number
5610459
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
12 Years
