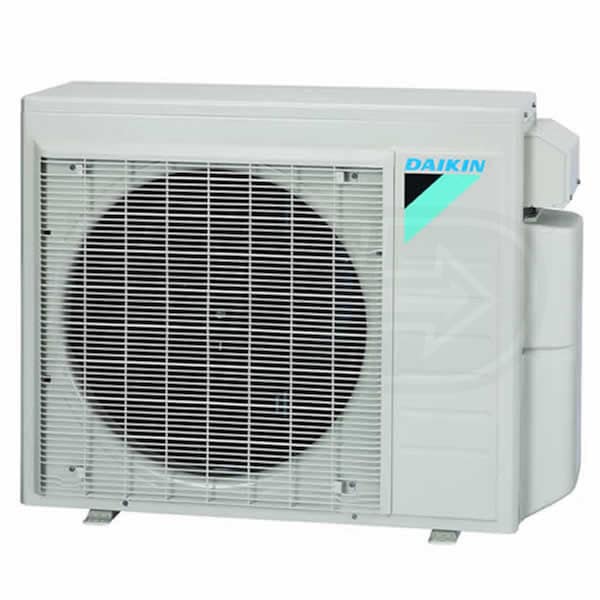

Daikin - 36k BTU - Heat Pump Condenser - Multi Zone

Model:

4MXL36TVJU

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Daikin - 36k BTU - Heat Pump Condenser - Multi Zone
Daikin - 36k BTU - Heat Pump Condenser - Multi Zone
Model: 4MXL36TVJU
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires two or more compatible indoor units for functionality. Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The Aurora series outdoor condenser is for use with up to 4 indoor units. This condenser supports indoor units operating simultaneously, allowing you to build the ideal system type to fit your home's specific needs. A broad range of accessories are availabile to add to your system as well, which when combined with Daikin's extensive experience with building efficient units provides a solution to any home's heating and cooling needs.
  • Reactive Temperature Monitoring
  • Daikin ductless systems do not require any setting changes to keep your home comfortable on a hot or cool day. Once you set a temperature for the system to maintain, the system automatically adjusts output levels according to environmental conditions.
  • Inverter Technology Prevents Temperature Fluctuation
  • The 4MXL36TVJU unit comes with inverter technology. This works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
  • Design Your System from the Ground Up
  • Daikin 4MXL36TVJU outdoor condensers are compatible with wall mounted, concealed duct, floor mounted, and ceiling cassette indoor units, allowing you to mix and match unit types to design a system that perfectly matches your home's needs.
  • Enhanced Capacity Condenser
  • The Aurora line is designed to operate at a higher capacity than its standard alternative. These units are designed to operate in colder climates, down to -13°F with the available drain pan heater and with 100% heating capacity down to 14°F standard.
  • Product Compatability
  • Daikin CDXS Wall Mounted Indoor Units
  • Daikin FTXS Wall Mounted Indoor Units
  • Daikin FDXS Concealed Duct Indoor Units
  • Daikin FVXS Floor Mounted Indoor Units
  • Daikin Emura™ Wall Mounted Indoor Units
  • Daikin Vista™ Ceiling Cassette Indoor Units
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

4MXL36TVJU
specs product image PID-99924
Overview
Product Category
Mini Split System Components
General Information
Type
Outdoor Condenser
Product Line
Aurora
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
32.5 Amps
Recommended Breaker Size
35 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
1/2 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
1/2 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
5/8 Inch
Product Height
34 1/4 Inches
Product Width
43 5/16 Inches
Product Depth
18 1/8 Inches
Product Weight
214 Pounds
Shipping Weight
224 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
12 Years
