Daikin CDXS07LVJU
Daikin CDXS07LVJU
Hover to zoom
1 Of 5

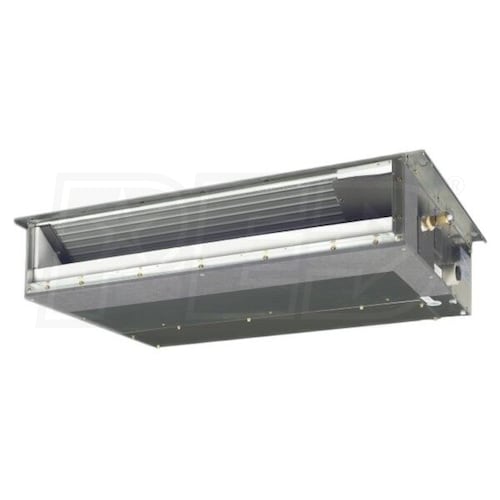

Daikin - 7k BTU - Concealed Duct - Multi Zone

Model:

CDXS07LVJU

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Daikin -  7k BTU - Concealed Duct - Multi Zone
Daikin - 7k BTU - Concealed Duct - Multi Zone
Model: CDXS07LVJU
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is a CDXS07LVJU concealed duct indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and sleek aesthetics allow the unit to blend into almost any home decoration theme. Daikin indoor units posess powerful energy saving features, which when combined with Daikin's extensive experience with building efficient units provides a cost-conscious solution to any home's heating and cooling needs.
  • Whisper Quiet Operation
  • Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the unit's construction works together with quiet motor operation to make the unit as unobtrusive as possible to its surrounding environment.
  • Inverter Technology Prevents Temperature Fluctuation
  • Daikin's inverter technology works together with the expansion valve to adjust coolant flow rate and compressor speed to match indoor conditions. This results in less dramatic indoor temperature swings, which in turn results in a more comfortable home.
  • Included Wireless Control
  • The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.
  • Built-In Advanced Filtration System
  • Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
  • Product Compatible With
  • Daikin 2MXS18NMVJU / 2MXL18QMVJU Outdoor Condenser Unit
  • Daikin 3MXS24NMVJU / 3MXL24QMVJU Outdoor Condenser Unit
  • Daikin 4MXS36NMVJU Outdoor Condenser Unit
  • Daikin RMXS48LVJU Outdoor Condenser Unit
  • Product Note
    This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

CDXS07LVJU
specs product image PID-100232
Overview
Product Category
Mini Split System Components
General Information
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Cooling Power Input
72 Watts
Maximum Air Flow
305 CFM
Minimum Air Flow
260 CFM
Heating Power Input
72 Watts
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
35 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
19/24 Inch
Product Height
7 7/8 Inches
Product Width
27 9/16 Inches
Product Depth
24 7/16 Inches
Product Weight
47 Pounds
Shipping Weight
47 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
