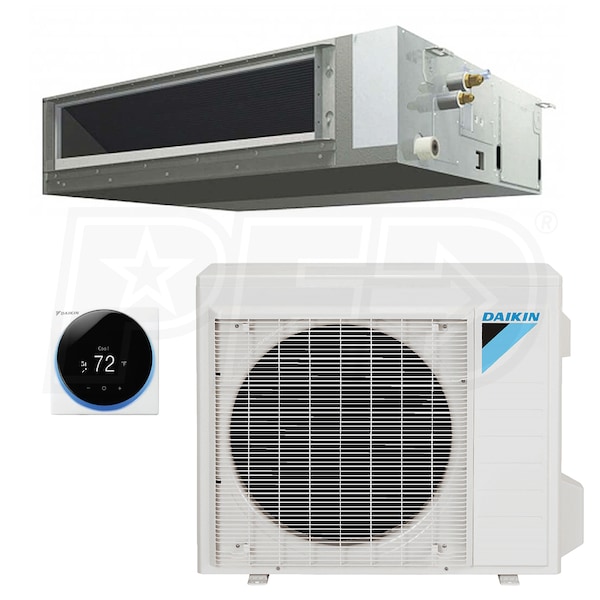

Daikin - 24k BTU Cooling + Heating - Aurora Series Concealed Duct Air Conditioning System - 18.6 SEER
Model:
DL24MVJU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Whisper Quiet Operation
- Daikin ductless units are engineered from the ground up for impressively quiet operation. The solid construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
- Inverter Technology
- Daikin's inverter technology works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
- Built-In Advanced Filtration System
- Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
- Included Wired Control
- The included wired control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner using the Madoka quick set app on any your smart phone.
- Low Ambient Cooling Capable
- Daikin condensers continue to provide cooling and heating in low temperature climates. This unit can cool down to an outside temperature of 50°F and provide heating down to -13°F. With the optional wind baffle, the condenser can cool down to 0°F.
- (1) Daikin Aurora - 24k BTU Outdoor Condenser - Single Zone Only (RXL24UMVJU)
- (1) Daikin Aurora - 24k BTU Concealed Duct Unit - Single Zone Only (FDMQ24RVJU)
- (1) Daikin Madoka Wired Remote Control (BRC1H71W)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The Aurora Series pairs Daikin's latest in condensing technology with quiet, easy to install, concealed duct indoor units. The Aurora Series outdoor condenser is engineered to provide efficient heating and cooling for your home even in extreme weather conditions while guaranteeing long, reliable, service life. Inside your home, Daikin's concealed duct units offer a simple design meant to blend into any setting. Combined with their standard quiet operation, these units are designed to keep your home comfortable without drawing attention. Advanced filtration technology cleans your home's air at the same time it is conditioned, allowing you and your family to breathe easy without fear of lingering pollutants.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Daikin Aurora - 24k BTU Outdoor Condenser - Single Zone Only (RXL24UMVJU)
- (1) Daikin Aurora - 24k BTU Concealed Duct Unit - Single Zone Only (FDMQ24RVJU)
- (1) Daikin Madoka Wired Remote Control (BRC1H71W)
DL24MVJU
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Concealed Duct
Product Line
Aurora
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
21200 BTU
Heating Capacity
24000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.6
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Product Weight
212 Pounds
Shipping Weight
217 Pounds
Certifications
AHRI Reference Number
204718024
RXL24UMVJU
General Information
Type
Outdoor Condenser
Product Line
Aurora
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Minimum Sound Level
55 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
98.5 Feet
Product Height
28 15/16 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
130 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Compressor Warranty
7 Years
FDMQ24RVJU
General Information
Type
Concealed Duct
Product Line
Aurora
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
798 CFM
Minimum Air Flow
558 CFM
Minimum Sound Level
40 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
40 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 Inch
Product Height
9 5/8 Inches
Product Width
39 3/8 Inches
Product Depth
31 1/2 Inches
Product Weight
82 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
BRC1H71W
General Information
Product Category
Mini Split Accessories
Overview
Product Category
Mini Split Accessories
Reviews
Daikin DL24MVJU Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
How-To Articles
What You Should Know About Mini-Split Wiring
Although they are easier to install than central air conditioning systems, mini...
How to Pick the Perfect Mitsubishi Mini-Split Condenser
If you're struggling to keep your home or office comfortable, you are not alone...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

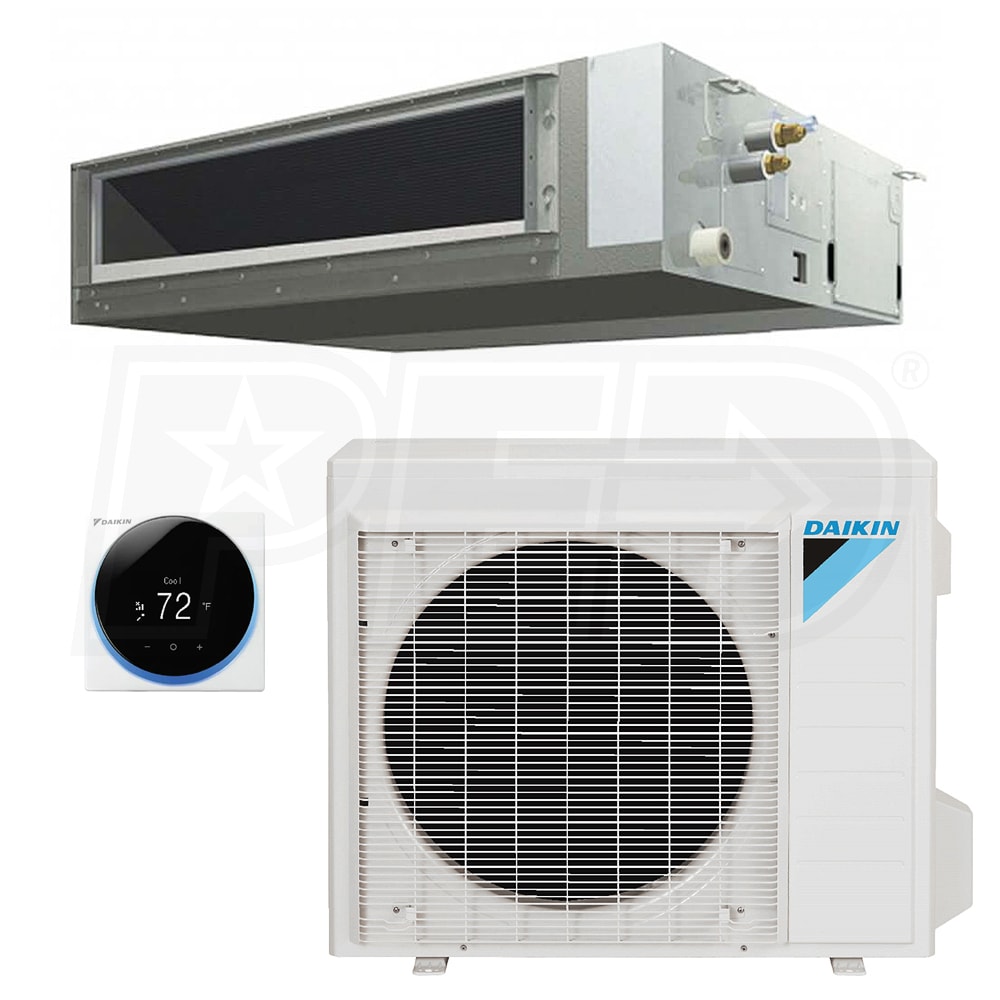

Daikin - 24k BTU Cooling + Heating - Aurora Series Concealed Duct Air Conditioning System - 18.6 SEER
