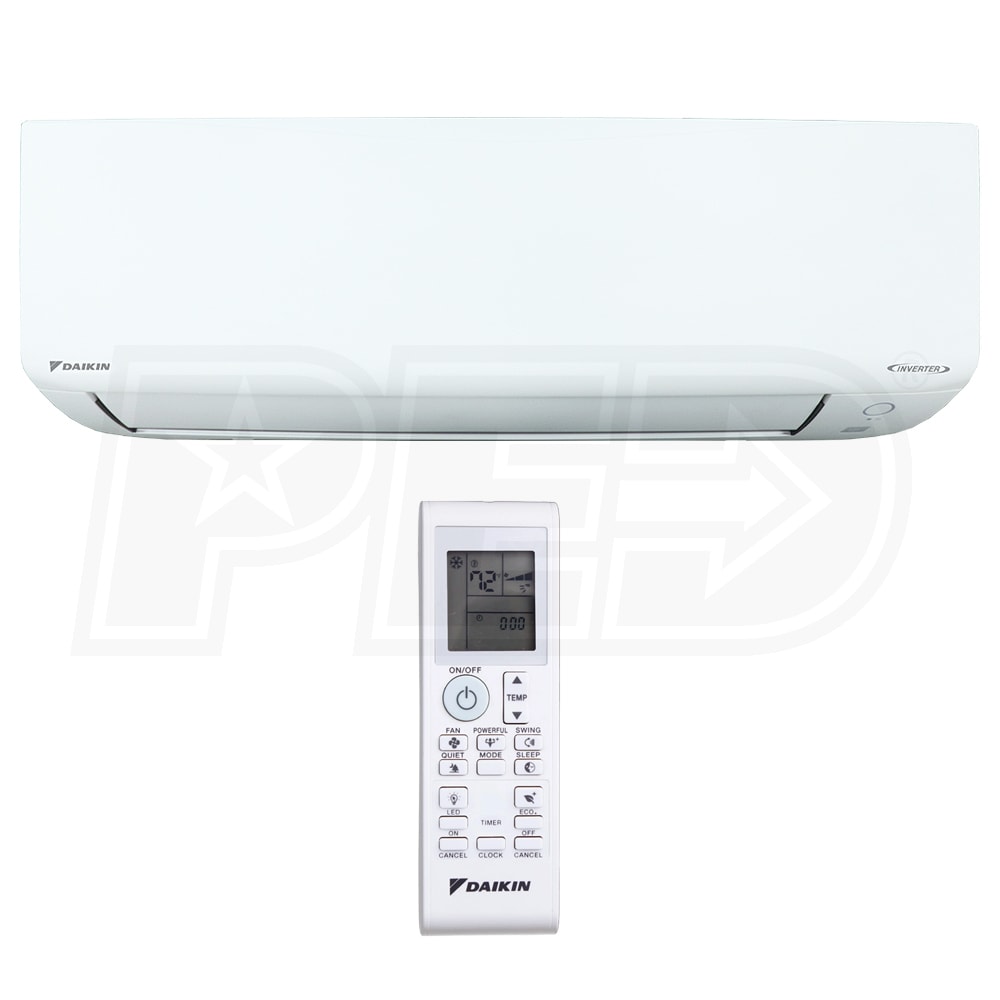

Daikin Oterra Series - 12k BTU - Wall Mounted Unit - Single Zone Only - R-32
Model:
FTXF12AXVJU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Wireless Remote Controller
- Conveniently control the temperature and settings from anywhere in the room with the wireless remote controller.
- DKN Cloud App
- Control your system via Wi-Fi wirelessly from anywhere, at any time, with the DKN Cloud App.
- Blue Fin Protection
- Blue Fin Protection is a hydrophilic coating that allows condensate water to flow easily to the drain pan, promoting cleanliness and prolonging coil lifespan.
- Easy Maintenance
- The indoor unit's design makes it simple to remove and clean key components, such as the drain pan, blower wheel, and fan motor.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. Daikin indoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Product Note
This product requires a compatible outdoor condenser and the following accessories for indoor unit installation:
Daikin products include a 5-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at daikincomfort.com.
Daikin products include a 5-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at daikincomfort.com.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
FTXF12AXVJU
General Information
Type
Wall Mounted
Product Line
Oterra
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-32
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
13500 BTU
Moisture Removal
1.28 Pints/Hour
Maximum Air Flow
473 CFM
Minimum Air Flow
132 CFM
Minimum Sound Level
19 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
46 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
5/8 Inch
Product Height
11 1/3 Inches
Product Width
30 5/16 Inches
Product Depth
9 3/16 Inches
Product Weight
20.9 Pounds
Shipping Weight
25.8 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
