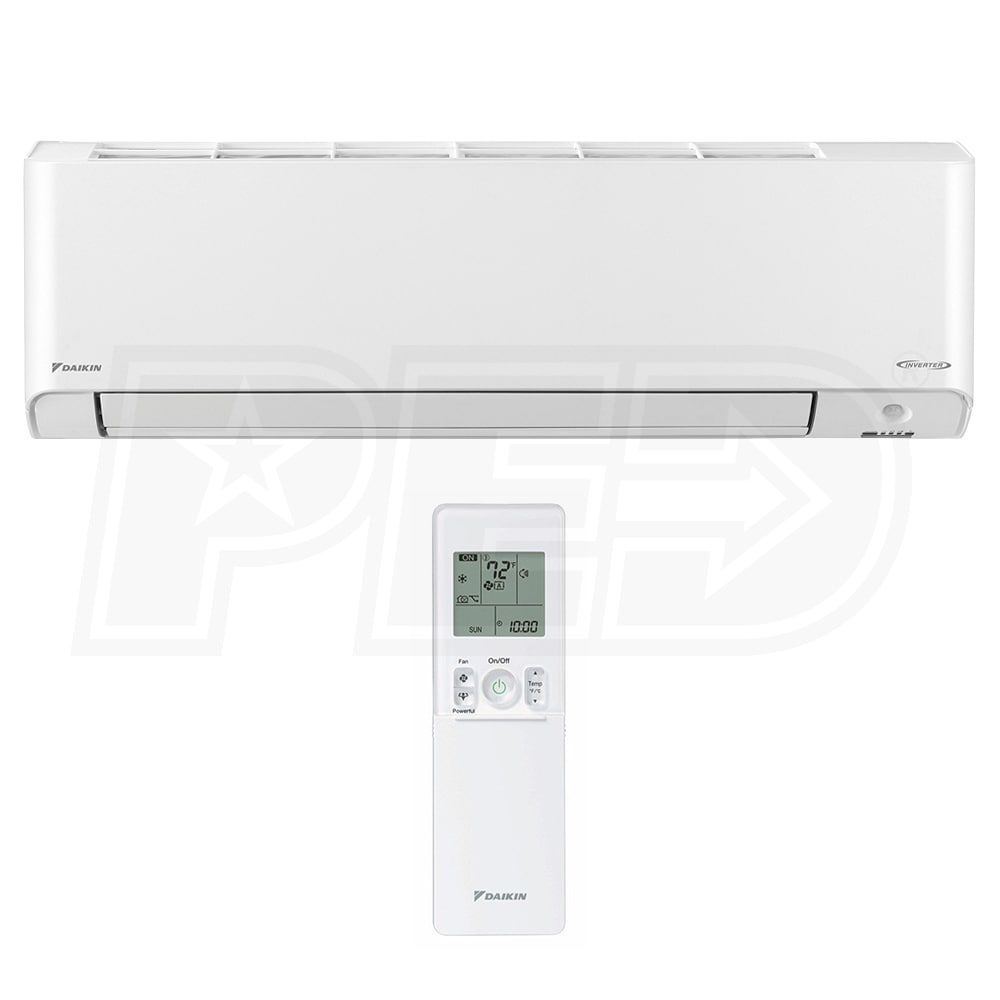

Daikin Atmosphera Series - 18k BTU - Wall Mounted Unit - Single Zone Only - R-32
Model:
FTXM18WVJU9
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features

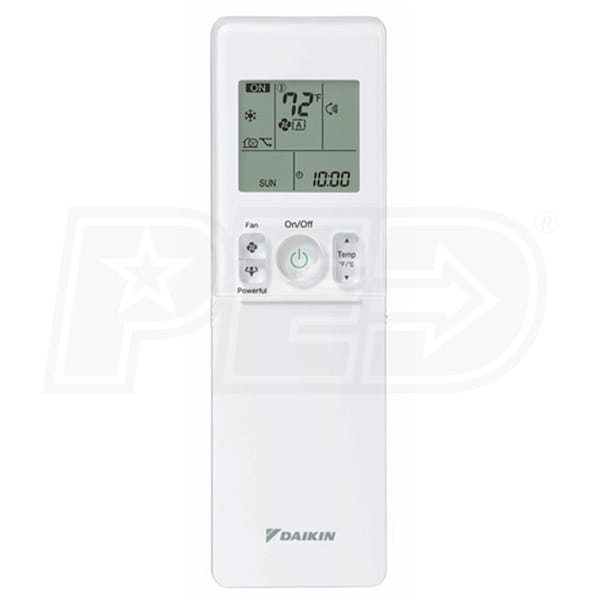

- Wireless Remote Controller
- Conveniently control the temperature and settings from anywhere in the room with the wireless remote controller.
- Econo Mode
- Reduce start-up energy consumption by 30% by limiting maximum current and power minimizing the load on electrical circuits when multiple devices are used at once.
- 3-D Airflow
- Circulate your airflow vertically and horizontally to reach all corners of large spaces.
- Easy Maintenance
- The indoor unit's design makes it simple to remove and clean key components, such as the drain pan, blower wheel, and fan motor.
- Boost Mode
- Press the Powerful button on the remote to temporarily increase cooling or heating power for 20 minutes, even at high capacity.
- Comfort Mode
- This unit features an adjustable flap, for cooling the flap can tilt horizontally to direct cool airflow away from the body. For heating, it flips downwards to distribute warm air to the floor.
- Daikin Comfort Control App
- Stay in control from anywhere. Access your Daikin Atmosphera system via Wi-Fi using your tablet or smartphone, no adapter needed.
- Intelligent Eye
- This unit features an advanced infrared sensor that detects movement in the room. If no one's around for 20 minutes, it adjusts the thermostat to conserve energy.
- Efficient Dehumidification
- The hybrid cooling system efficiently dehumidifies even in low cooling loads, continuing to maintain a dry environment after the target temperature is reached.
- Clean Operation
- The clean function dries the indoor unit's interior to reduce condensation, which may occur during cool or dry operation, it's recommended to use this feature to keep the air conditioner dry.
- Hot Start
- The unit's Hot Start feature ensures no cold draft is present when it switches from cooling to heating or begins heating operation.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. Daikin indoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Product Note
This product requires a compatible outdoor condenser and the following accessories for indoor unit installation:
Daikin products include a 5-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at daikincomfort.com.
Daikin products include a 5-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at daikincomfort.com.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
FTXM18WVJU9
General Information
Type
Wall Mounted
Product Line
Atmosphera
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-32
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Heating Capacity
21600 BTU
Maximum Air Flow
777 CFM
Minimum Air Flow
413 CFM
Minimum Sound Level
32 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
5/8 Inch
Product Height
11 3/4 Inches
Product Width
43 5/16 Inches
Product Depth
10 13/16 Inches
Product Weight
33 Pounds
Shipping Weight
46 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
