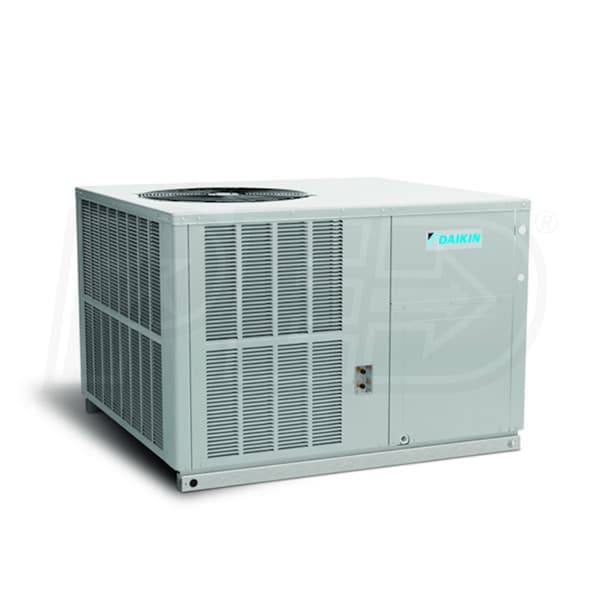

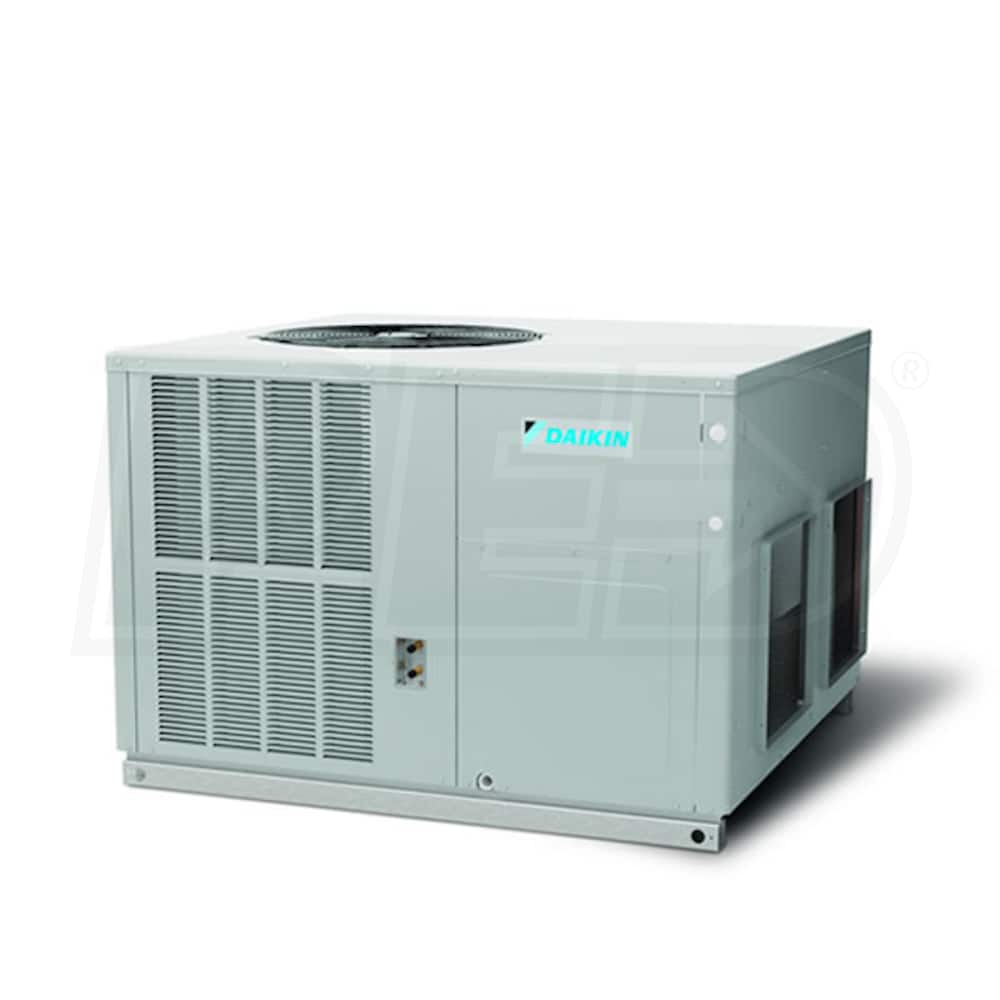

Daikin DP14CM - 3 Ton - Packaged Air Conditioner - 14 SEER - Downflow/Horizontal - 208-230/3/60

Model:

DP14CM3643

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Daikin DP14CM - 3 Ton - Packaged Air Conditioner - 14 SEER - Downflow/Horizontal - 208-230/3/60
Daikin DP14CM - 3 Ton - Packaged Air Conditioner - 14 SEER - Downflow/Horizontal - 208-230/3/60
Model: DP14CM3643
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Daikin's packaged HVAC systems offer the perfect all-in-one comfort solution for nearly any residential or light commercial application. The DP14CM series combines a compressor, evaporator coil, and blower all into one unit. Daikin's high-performance compressors operate in tandem with their all-aluminum evaporator coil design, providing powerful cooling without wasting energy. The DP14CM's heavy-gauge, galvanized steel cabinet will protect its inner components from all the elements for years to come. Compatible with ground-level or rooftop installations in horizontal or downflow applications, this versatile unit can be adapted for almost any installation requirement.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • High-Efficiency Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Secure Cabinet
  • The cabinet of the DP14CM unit is made from heavy-gauge, galvanized-steel to protect itself from the elements and ensure longevity.
  • EEM Motor
  • The DP14CM has a multi-speed EEM motor that is cost and energy efficient and can reduce operating costs.
  • Product Note
    NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

DP14CM3643
specs product image PID-93893
Overview
Product Category
Packaged HVAC Unit
General Information
Type
Air Conditioner Packaged Unit
Product Line
DP14CM
Product Category
Packaged HVAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Blower Motor Type
Multi-Speed
Motor Type
EEM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Air Flow
1200 CFM
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
80.1 dB
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
18.2 Amps
Recommended Breaker Size
25 Amps
Dimensions
Product Height
34 3/4 Inches
Product Width
47 Inches
Product Depth
51 Inches
Product Weight
365 Pounds
Shipping Weight
365 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
9956463
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
