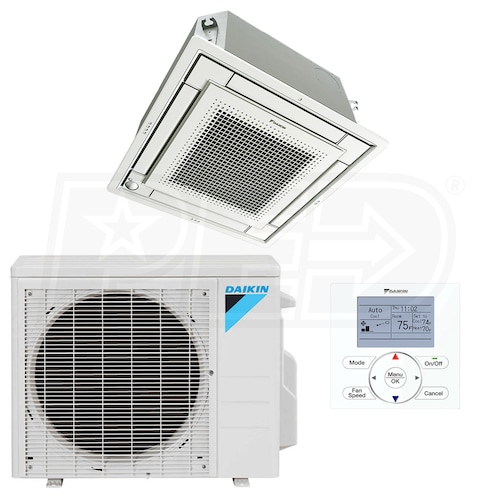

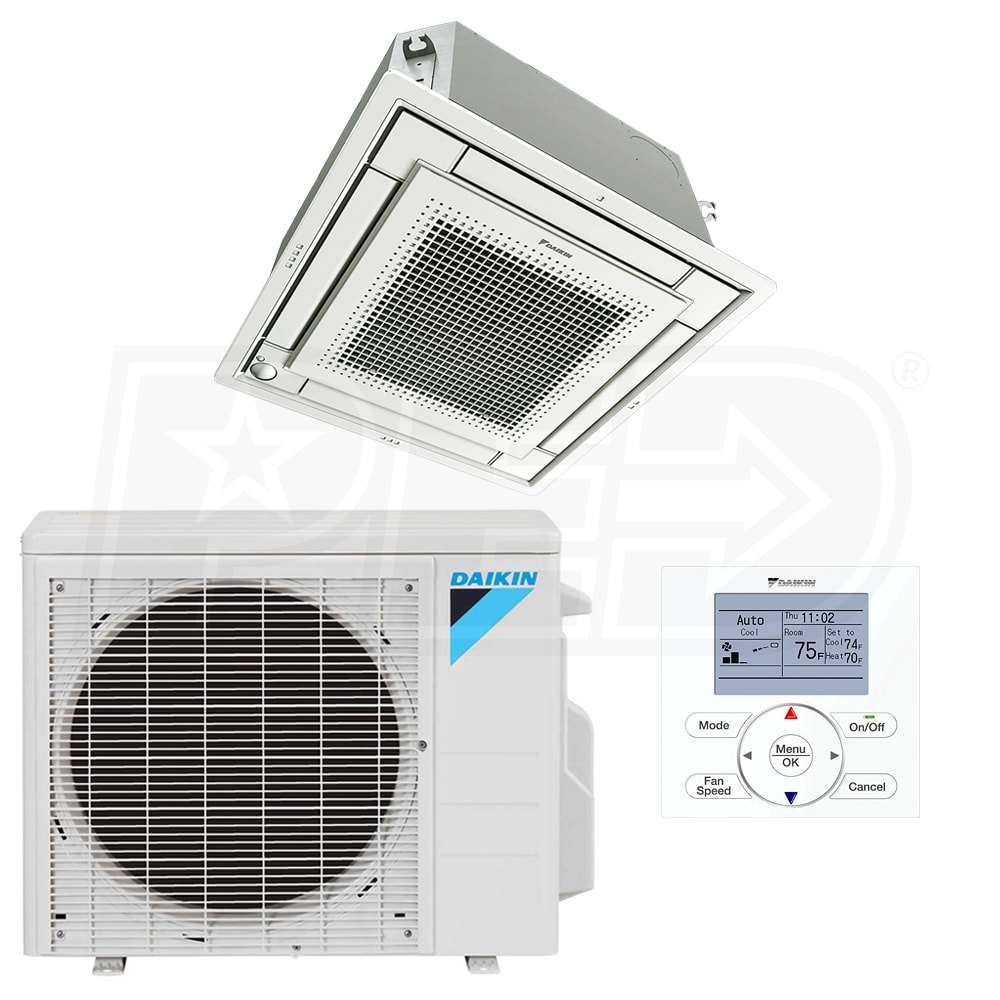

Daikin - 18k BTU Cooling + Heating - Vista Series Ceiling Cassette Air Conditioning System - 18.2 SEER2
Model:
RX18WMVJU9 FFQ18W2VJU9
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Seamless Integration
- This unit seamlessly fits into standard architectural ceiling tiles, with a slim profile leaving only 5/16" inches
- Energy Efficiency
- With a specially designed heat exchanger and DC fan motor, this unit achieves high efficiencies of up to 18.2 SEER2 for cooling and up to 8.40 HSPF2 for heating.
- Smart Sensor Integration
- The unit can be connected to intelligent sensors for enhanced energy savings and comfort control, with the ability to automatically adjust operations based on presence and floor temperature.
- Convenient Controls
- Unit integrates into building management system effortlessly, offering fresh air, wired control, quick warm-up, and auto defrosting for convenience.
- (1) Daikin Emura Series - 18k BTU Outdoor Condenser - Single Zone Only (RX18WMVJU9)
- (1) Daikin - 18k BTU - Ceiling Cassette - Multi-Zone - Grille Sold Separately (FFQ18W2VJU9-NG)
- (1) Daikin Wired Remote Controller for Ceiling Cassette and Concealed Duct Units (BRC1E73)
- (1) Daikin Vista Ceiling Cassette Grille White (BYFQ60C2W1W)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The RX18WMVJU9 FFQ18W2VJU9 ceiling cassette system is perfect for all your single zone heating and cooling needs. This system pairs a Daikin ceiling cassette indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Daikin Emura Series - 18k BTU Outdoor Condenser - Single Zone Only (RX18WMVJU9)
- (1) Daikin - 18k BTU - Ceiling Cassette - Multi-Zone - Grille Sold Separately (FFQ18W2VJU9-NG)
- (1) Daikin Wired Remote Controller for Ceiling Cassette and Concealed Duct Units (BRC1E73)
- (1) Daikin Vista Ceiling Cassette Grille White (BYFQ60C2W1W)
RX18WMVJU9 FFQ18W2VJU9
General Information
Type
Ceiling Cassette
Product Line
Vista
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Outdoor Unit Size
18000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
18000
Cooling Capacity
17400 BTU
Heating Capacity
21600 BTU
Cooling Power Input
1513 Watts
Heating Power Input
2110 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
50 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
18.2
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.50
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
8.40
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
139 Pounds
Shipping Weight
154 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
212506074
RX18WMVJU9
General Information
Type
Outdoor Condenser
Product Line
Emura
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Heating Capacity
20000 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
50 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
15.3
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
9.40
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
8.20
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
98.5 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
28 15/16 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
100 Pounds
Shipping Weight
105 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
FFQ18W2VJU9-NG
General Information
Type
Ceiling Cassette
Product Line
Vista
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Not Included
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Grille
Not Included
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
448 CFM
Minimum Air Flow
275 CFM
Minimum Sound Level
32 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
44 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/4 Inch
Liquid Connection Size
1/2 Inch
Condensate Drain Size
1 1/48 Inches
Product Height
10 1/4 Inches
Product Width
22 5/8 Inches
Product Depth
22 5/8 Inches
Product Weight
39 Pounds
Shipping Weight
49 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
BRC1E73
General Information
Type
Mini Split Controller
Product Category
Mini Split Accessories
Voltage Type
Low Voltage
Programmable
Yes
Power Source
Hardwired
Interface
Buttons
Minimum Setpoint Range
60 F
Maximum Setpoint Range
90 F
Dimensions
Product Height
4 3/4 Inches
Product Width
4 3/4 Inches
Product Depth
3/4 Inch
Shipping Weight
5 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split Accessories
BYFQ60C2W1W
General Information
Type
Grille
Product Category
Mini Split Accessories
Dimensions
Product Height
1 13/16 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Mini Split Accessories
