Daikin - 9k BTU Cooling + Heating - Atmosphera Series Wall Mount Air Conditioning System - 27.4 SEER2 - R-32
Model:
RXM09VVJU FTXM09VVJU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Wireless Remote Controller
- Conveniently control the temperature and settings from anywhere in the room with the wireless remote controller.
- Econo Mode
- Reduce start-up energy consumption by 30% by limiting maximum current and power minimizing the load on electrical circuits when multiple devices are used at once.
- 3-D Airflow
- Circulate your airflow vertically and horizontally to reach all corners of large spaces.
- Easy Maintenance
- The indoor unit's design makes it simple to remove and clean key components, such as the drain pan, blower wheel, and fan motor.
- Boost Mode
- Press the Powerful button on the remote to temporarily increase cooling or heating power for 20 minutes, even at high capacity.
- Comfort Mode
- This unit features an adjustable flap, for cooling the flap can tilt horizontally to direct cool airflow away from the body. For heating, it flips downwards to distribute warm air to the floor.
- Daikin Comfort Control App
- Stay in control from anywhere. Access your Daikin Atmosphera system via Wi-Fi using your tablet or smartphone, no adapter needed.
- Intelligent Eye
- This unit features an advanced infrared sensor that detects movement in the room. If no one's around for 20 minutes, it adjusts the thermostat to conserve energy.
- Efficient Dehumidification
- The hybrid cooling system efficiently dehumidifies even in low cooling loads, continuing to maintain a dry environment after the target temperature is reached.
- Clean Operation
- The clean function dries the indoor unit's interior to reduce condensation, which may occur during cool or dry operation, it's recommended to use this feature to keep the air conditioner dry.
- Hot Start
- The unit's Hot Start feature ensures no cold draft is present when it switches from cooling to heating or begins heating operation.
- Inverter Compressor
- Efficiently adjusts the compressor speed to maintain a consistent temperature, reducing energy consumption and ensuring quiet operation.
- Anti-Corrosion Treatment on Heat Exchanger
- The heat exchanger is coated with a special anti-corrosion treatment, resisting salt damage and atmospheric corrosion for a longer lifespan.
- Increased Factory Charge
- Daikin Atmosphera units come pre-charged to accommodate piping lengths up to 49 ft (15m), a 50% increase in coverage compared to previous models.

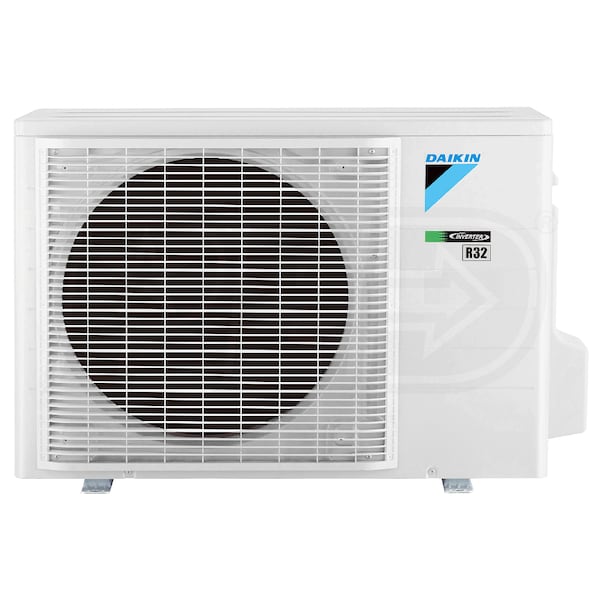

- (1) Daikin Atmosphera Series - 9k BTU - Outdoor Condenser - Single Zone Only - R-32 (RXM09VVJU)
- (1) Daikin Atmosphera Series - 9k BTU - Wall Mounted Unit - Single Zone Only - R-32 (FTXM09VVJU)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The RXM12VVJU FTXM12VVJU is a wall mounted system perfect for all your single zone heating and cooling needs. This system pairs a Daikin wall mounted indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Daikin Atmosphera Series - 9k BTU - Outdoor Condenser - Single Zone Only - R-32 (RXM09VVJU)
- (1) Daikin Atmosphera Series - 9k BTU - Wall Mounted Unit - Single Zone Only - R-32 (FTXM09VVJU)
RXM09VVJU FTXM09VVJU
General Information
Type
Wall Mounted
Product Line
Atmosphera
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-32
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
11000 BTU
Cooling Power Input
552 Watts
Heating Power Input
701 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
50 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
27.4
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
16.3
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
13.8
COP
COP
Coefficient of performance or COP is a rating that indicates a system's heating efficiency. The higher the COP, the more efficiently the system heats.
1.8
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
125 Pounds
Shipping Weight
141 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
207158009
RXM09VVJU
General Information
Type
Outdoor Condenser
Product Line
Atmosphera
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-32
Installation Location
Outdoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
11000 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
50 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
27.4
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
16.3
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
13.8
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
82.02 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
23 7/16 Inches
Product Width
33 1/4 Inches
Product Depth
11 13/16 Inches
Product Weight
96 Pounds
Shipping Weight
103 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
FTXM09VVJU
General Information
Type
Wall Mounted
Product Line
Atmosphera
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-32
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
11000 BTU
Maximum Air Flow
515 CFM
Minimum Air Flow
219 CFM
Minimum Sound Level
43 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
22 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
5/8 Inch
Product Height
11 3/4 Inches
Product Width
36 1/4 Inches
Product Depth
10 13/16 Inches
Product Weight
29 Pounds
Shipping Weight
38 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
