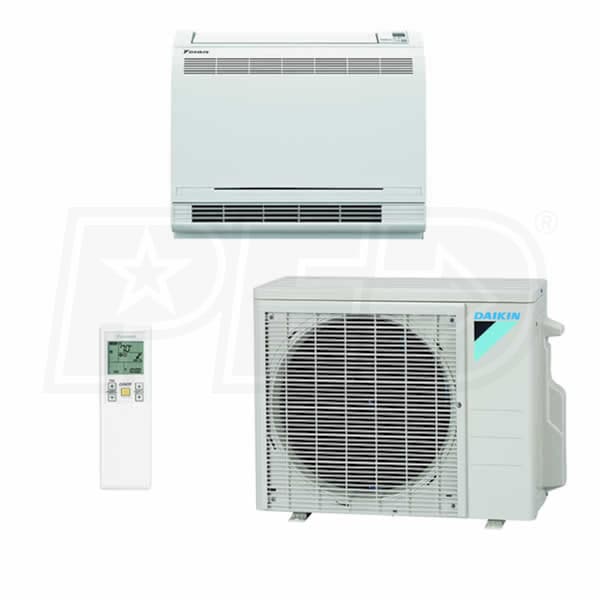

Daikin 20 Series - 9k BTU Cooling + Heating - Floor Mounted Air Conditioning System - 19.5 SEER2
Model:
VXL09QMVJU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Whisper Quiet Operation
- Daikin ductless units are engineered from the ground up for impressively quiet operation. The solid construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
- Inverter Technology Prevents Temperature Fluctuation
- Daikin units come with inverter technology. This works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
- Built-In Advanced Filtration System
- Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
- Enhanced Capacity Condenser
- The RXL line of heat pumps is designed to operate in colder climates than their standard alternatives. With the available drain pan heater, they will provide 100% of their rated capacity down to 5F and continue to heat down to -13F.
- Included Wireless Control
- The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner. These unit are also compatible with the optional Daikin ENVi Wi-Fi capable Smart Control.
- (1) Daikin 9k BTU - Floor Mounted Indoor Unit - Multi Zone (FVXS09NVJU)

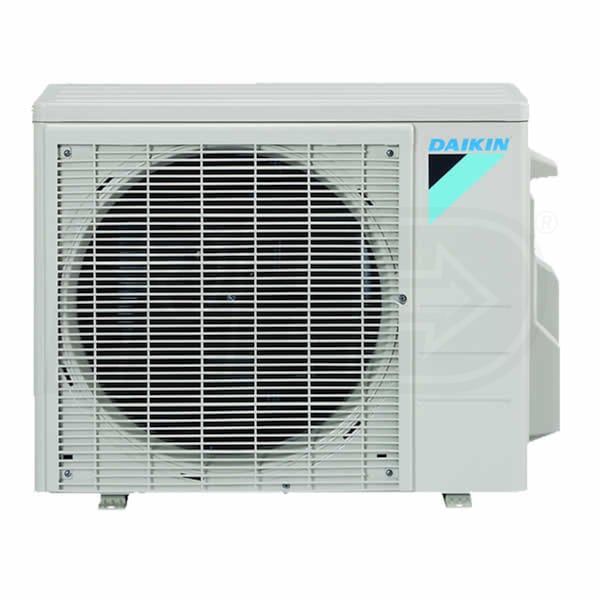

- (1) Daikin RXL Series - 9k BTU Outdoor Condenser - Single Zone Only (RXL09QMVJU)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The VXL09QMVJU is a floor mounted system perfect for all your single zone heating and cooling needs. This system pairs a Daikin floor mounted indoor unit with an enhanced-capacity outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort in even the coldest climates.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Daikin 9k BTU - Floor Mounted Indoor Unit - Multi Zone (FVXS09NVJU)
- (1) Daikin RXL Series - 9k BTU Outdoor Condenser - Single Zone Only (RXL09QMVJU)
VXL09QMVJU
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Floor Mounted
Product Line
20-Series
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
10100 BTU
Cooling Power Input
700 Watts
Heating Power Input
700 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
-4 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
19.5
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.5
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.7
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
97 Pounds
Shipping Weight
101 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
207776280
FVXS09NVJU
General Information
Type
Floor Mounted
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
311 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
23 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
13/16 Inch
Product Height
23 5/8 Inches
Product Width
27 1/2 Inches
Product Depth
8 1/4 Inches
Product Weight
37 Pounds
Shipping Weight
47 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
RXL09QMVJU
General Information
Type
Outdoor Condenser
Product Line
RXL
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
-4 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65.6 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
26 9/16 Inches
Product Depth
11 3/16 Inches
Product Weight
60 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
