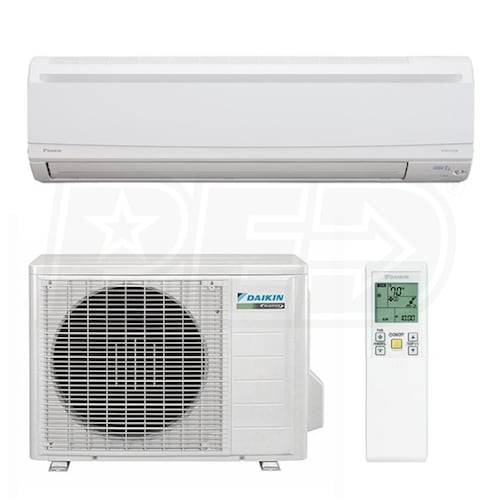

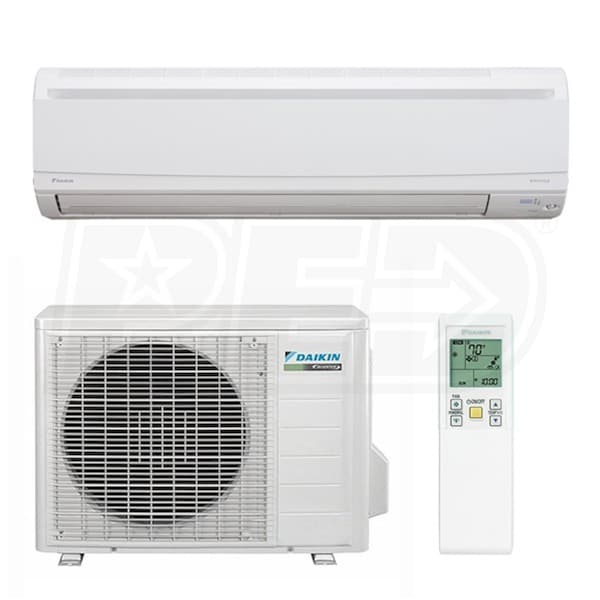

Daikin - 12k BTU Cooling + Heating - LV-Series Wall Mounted Air Conditioning System - 22.5 SEER2
Model:
XS12LVJU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
3
These accessories are required to properly setup/install this product.
Model: MSPLTKIT-143815
Length (ft)
$303.61
In-Stock
Model: UC1636-3
$44.00
In-Stock
$105.62
In-Stock
Optional Accessories
8
Model: MLS143812-15
Length (ft)
$150.00
In-Stock
Model: MSCABLE144-25
$45.00
In-Stock
Model: ASP-MW-UNI
$296.32
In-Stock
Model: 84099
$5.30
In-Stock
Model: LHKIT-75
$86.49
In-Stock
Features
- Intelligent Eye Energy Saving Mode
- Daikin indoor units have built-in motion sensing technology that transitions the system into an energy-saving mode when no movement has been detected indoors for 20 minutes. Once someone enters the room, the system switches back to full operation.
- Inverter Technology
- Daikin's inverter technology works together with the expansion valve to adjust coolant flow rate and compressor speed to match indoor conditions. This results in less dramatic indoor temperature swings, which in turn results in a more comfortable home.
- Built-In Advanced Filtration System
- The LV series of mini splits from Daikin comes with a built-in photocatalytic air filtration system. This system first traps bacteria, viruses, and other microscopic particles, then decomposes them, rendering them harmless to your family.
- Whisper Quiet Operation
- Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the unit's construction works together with quiet motor operation to make the unit as unobtrusive as possible to its surrounding environment.
- Included Wireless Control
- The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.
- (1) Daikin LV Series - 12k BTU Outdoor Condenser - Single Zone Only (RXS12LVJU)
- (1) Daikin 12k BTU - Air Handler Wall Mounted - Multi or Single Zone (FTXS12LVJU)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The LV series of split systems packs a wide variety of premium features into a convenient, effective ductless system package. A SEER rating of 23 on the XS12LVJU system means more cooling for your home for each dollar spent on air conditioning energy, and an advanced filtration system ensures air quality within your home during all stages of operation. Unique circuitry design eliminates standby energy usage by up to 90 percent when compared to other mini split brands, and the included "Intelligent Eye" motion sensor allows the system to adjust operation based on your presence in a room.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Daikin LV Series - 12k BTU Outdoor Condenser - Single Zone Only (RXS12LVJU)
- (1) Daikin 12k BTU - Air Handler Wall Mounted - Multi or Single Zone (FTXS12LVJU)
XS12LVJU
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
LV-Series
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
14400 BTU
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
22.5
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.8
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
10.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
97 Pounds
Shipping Weight
97 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5265755
RXS12LVJU
General Information
Type
Outdoor Condenser
Product Line
LV-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
30 1/8 Inches
Product Depth
11 1/4 Inches
Shipping Weight
75 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
FTXS12LVJU
General Information
Type
Wall Mounted
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
4 Pints/Hour
Maximum Air Flow
438 CFM
Minimum Air Flow
155 CFM
Minimum Sound Level
23 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
5/8 Inch
Product Height
11 3/8 Inches
Product Width
31 1/2 Inches
Product Depth
8 7/16 Inches
Product Weight
22 Pounds
Shipping Weight
31 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
Reviews
(6)
Daikin XS12LVJU Reviews & Ratings
could not be more happy
By Butch G.
Schererville, Indiana
Purchased 09/11/2019 |
Review Posted 10/02/2019
replaced old sanyo - unit installed easy- works great
Butch G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Price, Exceeded Expectations, I'd Buy It Again
Cons:
no cons
Works very well, good customer service from eComfort
By Chaiyong J.
Renton, Washington
Purchased 05/23/2016 |
Review Posted 07/05/2016
I installed the indoor and outdoor units myself including all the electrical work. Initially I installed GFCI circuit breaker per Daikin's installation manual, but it tripped every time the compressor cycled on. I replaced it with regular 20A, 220V, single-phase circuit breaker and it's worked fine ever since. I had a certified HVAC tech install the line sets and test for leaks.
Chaiyong J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Fast service - Easy DIY Install - Great product
By Cole L.
Gardnerville, Nevada
Purchased 04/01/2016 |
Review Posted 04/27/2016
The suggested options kit made for an easy DIY install.
We are using it to cool a computer room and it is working wonderfully.
We are using it to cool a computer room and it is working wonderfully.
Cole L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Work Great - Easy DIY Install
By Cole L.
Gardnerville, Nevada
Purchased 04/01/2016 |
Review Posted 04/25/2016
Easy to setup and the optional install kit had everything needed for the job.
Unit came missing a panel cover and still am waiting to see if this gets resolved.
Unit came missing a panel cover and still am waiting to see if this gets resolved.
Cole L. Recommends This
Was this review helpful?
Expert Response
If you have further trouble getting the issue resolved with the manufacturer, please give us a call and we'll help you out.
Ken D.
eComfort Product Expert
Rating Breakdown
5/5
3/5
5/5
4/5
leaky evaporion Cu tube
By Shinzo
Florida
Purchased 05/02/2016 |
Review Posted 04/23/2016
The unit tends to leak through pinholes which are due to impurity of copper tube material from cheap production country. The oil, a part of Freon makes most plastics parts brittle and replace indoor unit.
This situation is a subject of recall, however, the company avoids ruining the company name offering free replacement parts for long period.
I have repair three pin holes in one indoor unit. The products are something good but fundamentally very bad. I would like to avoid like these product all together. This is not only cost but an environmental/health problem. darkblue
This situation is a subject of recall, however, the company avoids ruining the company name offering free replacement parts for long period.
I have repair three pin holes in one indoor unit. The products are something good but fundamentally very bad. I would like to avoid like these product all together. This is not only cost but an environmental/health problem. darkblue
Shinzo Does Not Recommend This
Was this review helpful?
Rating Breakdown
4/5
2/5
3/5
2/5
Great, reliable and efficient unit!
By Stephanie W.
Marysville, Washington
Purchased 03/04/2016 |
Review Posted 04/22/2016
After researching many brands of ductless mini splits I decided on Daikin. They are a front runner in industry and edge out the Mitsubishi in performance. I installed the system myself and was pleased with the detailed instructions.
You still need a certified HVAC installer to test the system for leaks and release the refrigerant. I was very happy to do business with eComfort as they were very knowledgeable and helpful when ordering the unit and line kit.
You still need a certified HVAC installer to test the system for leaks and release the refrigerant. I was very happy to do business with eComfort as they were very knowledgeable and helpful when ordering the unit and line kit.
Stephanie W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
