DuraVent PolyPro - 4" Diameter - Venting Starter Kit - Vertical Single Pipe - 217-3/4" to 222-1/4" Straight Run
Model:
PPKIT-4VS-222
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features

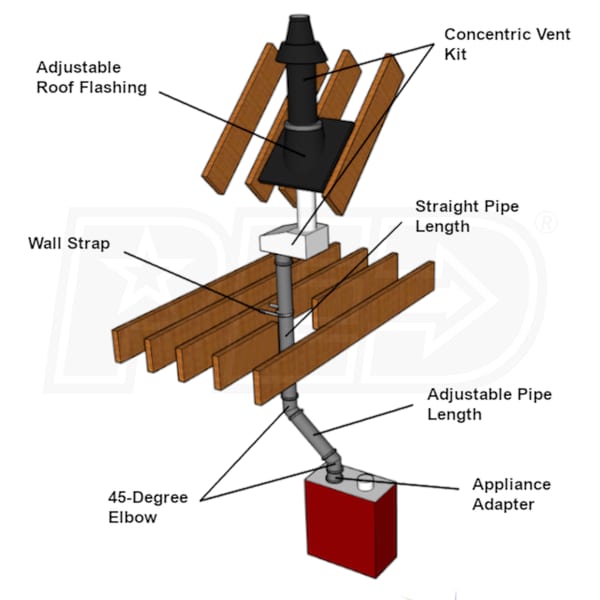

- (1) DuraVent PolyPro - 4" Diameter - Vertical Concentric Vent Kit (4PPS-VKC)
- (1) DuraVent PolyPro - 4" Diameter - Adjustable Roof Flashing - 5/12-12/12 Pitch (4PPS-F12)
- (3) DuraVent PolyPro - 4" Diameter - Straight Pipe Length - 72" Long (4PPS-72C)
- (1) DuraVent PolyPro - 4" Diameter - Adjustable Pipe (4PPS-08ALC)
- (1) DuraVent PolyPro - 4" Diameter - Appliance Adapter PVC to PolyPro (4PPS-ADL)
- (2) DuraVent PolyPro - 4" Diameter - Elbow 45° (4PPS-E45C)
- (3) DuraVent PolyPro - 4" Diameter - Locking Band Clamp (4PPS-LBC)

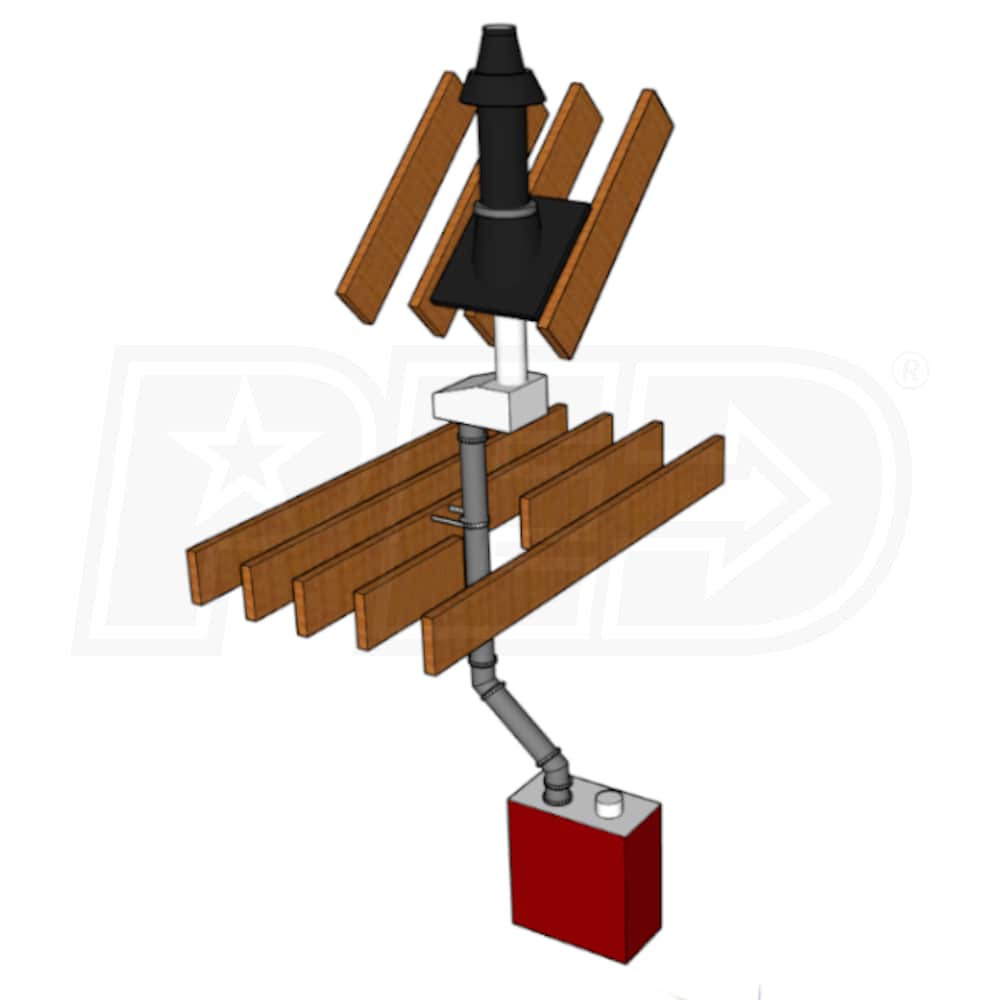

DuraVent PolyPro Venting Starter Kits include everything you need to get started venting your high efficiency tankless water heater, condensing boiler or furnace. Easier and faster to install than PVC, PolyPro is engineered to save time and money. Perfect for units that can draw combustion air from within the room, this kit includes core components for a single exhaust pipe installation with a termination through the roof.
Product Includes
Product Note
A PPS-LC locking clamp is included with each piping component and is used to join two uncut pieces of PolyPro together. If you need to cut the straight pipe length for your application, the included PPS-LBC locking band clamp can be used to join them together. A 3" appliance adapter (3PPS-ADL) and 3" to 4" increaser (3PPS-X4L) may be required to connect this PolyPro venting system if your unit uses a 3" exhaust outlet.
Specifications
Product Includes
- (1) DuraVent PolyPro - 4" Diameter - Vertical Concentric Vent Kit (4PPS-VKC)
- (1) DuraVent PolyPro - 4" Diameter - Adjustable Roof Flashing - 5/12-12/12 Pitch (4PPS-F12)
- (3) DuraVent PolyPro - 4" Diameter - Straight Pipe Length - 72" Long (4PPS-72C)
- (1) DuraVent PolyPro - 4" Diameter - Adjustable Pipe (4PPS-08ALC)
- (1) DuraVent PolyPro - 4" Diameter - Appliance Adapter PVC to PolyPro (4PPS-ADL)
- (2) DuraVent PolyPro - 4" Diameter - Elbow 45° (4PPS-E45C)
- (3) DuraVent PolyPro - 4" Diameter - Locking Band Clamp (4PPS-LBC)
PPKIT-4VS-222
Overview
Product Category
Water Heater Accessories
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Material
Polypropylene
Piping Configuration
Vertical Single Pipe
Termination Type
Concentric
Dimensions
Primary Vent Pipe Diameter
4 Inches
Straight Run Length
217-3/4 to 222-1/4 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
4PPS-VKC
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Installation Location
Indoor
Material
Polypropylene
Color
Black
Dimensions
Primary Vent Pipe Diameter
4 Inches
Product Height
68 1/4 Inches
Product Width
5 1/2 Inches
Product Length
5 1/2 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Water Heater Accessories
4PPS-F12
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Installation Location
Outdoor
Material
Polypropylene
Color
Black
Dimensions
Primary Vent Pipe Diameter
4 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Water Heater Accessories
4PPS-72C
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Installation Location
Indoor
Material
Polypropylene
Dimensions
Primary Vent Pipe Diameter
4 Inches
Product Height
4 Inches
Product Width
4 Inches
Product Length
72 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Water Heater Accessories
4PPS-08ALC
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Installation Location
Indoor
Material
Polypropylene
Dimensions
Primary Vent Pipe Diameter
4 Inches
Product Height
8 1/4 Inches
Product Width
4 Inches
Product Length
4 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Water Heater Accessories
4PPS-ADL
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Installation Location
Indoor
Material
Polypropylene
Dimensions
Primary Vent Pipe Diameter
4 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Water Heater Accessories
4PPS-E45C
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Installation Location
Indoor
Material
Polypropylene
Dimensions
Primary Vent Pipe Diameter
4 Inches
Product Height
5 Inches
Product Width
4 Inches
Product Length
5 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Water Heater Accessories
4PPS-LBC
General Information
Product Line
PolyPro
Product Category
Water Heater Accessories
Installation Location
Indoor
Material
Polypropylene
Dimensions
Primary Vent Pipe Diameter
4 Inches
Product Width
4 Inches
Product Length
2 1/2 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Water Heater Accessories
