Durastar DRA5H48M1A
Durastar DRA5H48M1A
Hover to zoom
1 Of 5

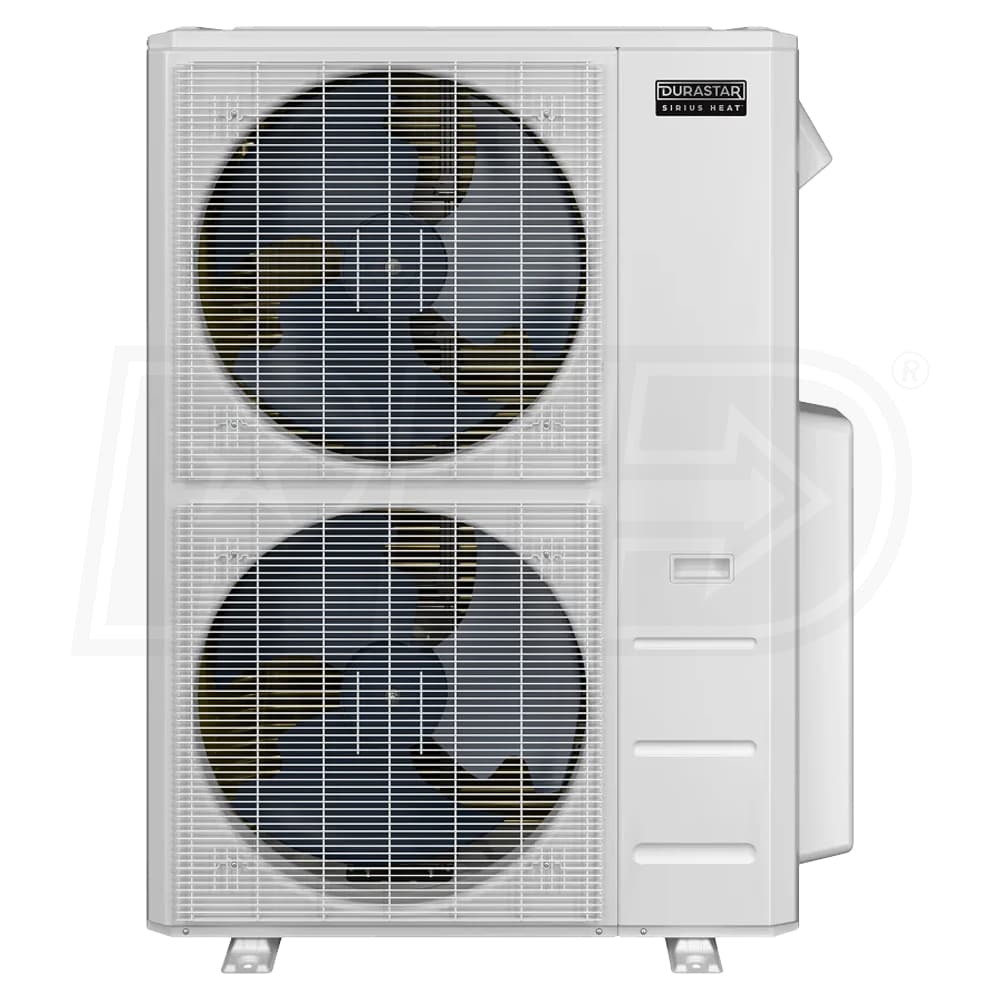

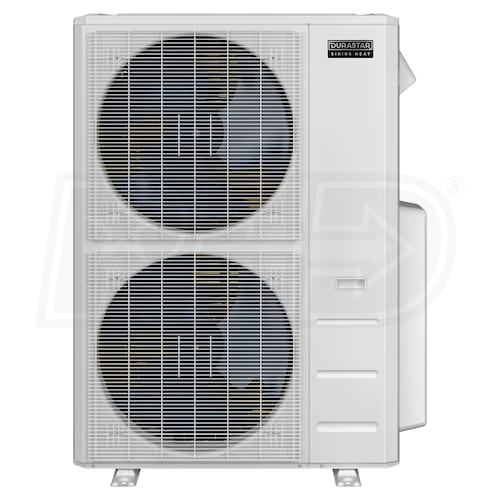

Durastar Sirius Heat™ - 48k BTU - Outdoor Condenser - For 2-5 Zones

Model:

DRA5H48M1A

Write A Review
$6,382.43
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Tuesday, Nov 26th
Shipping to60601
synchrony card logo
$80 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Durastar Sirius Heat™ - 48k BTU - Outdoor Condenser - For 2-5 Zones
Durastar Sirius Heat™ - 48k BTU - Outdoor Condenser - For 2-5 Zones
Model: DRA5H48M1A
$6,382.43
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs. This outdoor unit is a Sirius Heat™ outdoor condenser for multi-zone mini split applications, it supports cooling operations down to 5 degrees Fahrenheit and heating operations down to -22 degrees Fahrenheit in freezing climates.
  • Sirius Heat™ Low Ambient Operations
  • This outdoor unit supports cooling operations down to 5 degrees Fahrenheit, heating operations down to -22 degrees Fahrenheit and provides up to 100% heating capacity at 0 degrees.
  • Variable Speed Inverter Compressor
  • Durastar's energy efficient inverter technology uses an electronic expansion valve and a variable speed compressor to regulate the refrigerant flow, reducing energy consumption and allowing consistent, accurate temperatures.
  • Low Ambient Operations
  • This outdoor unit supports cooling operations down to 5 degrees Fahrenheit and heating operations down to -13 degrees Fahrenheit.
  • Included Base Pan Heater
  • The outdoor unit features a defrost feature, which removes frost from the condenser coil in frigid conditions and perform reliably at lower temperatures.
  • Anti-Corrosive Fin Coating
  • Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion this improves its durability.
  • Quiet Operation
  • Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
  • Auto Changeover
  • Set it and forget it. With Durastar's Auto Changeover feature, you can set the temperature and it will automatically switch between heating and cooling to maintain your temperature.
  • 10 Year Warranty
  • Durastar stands behind their product with a hassle-free 10 year limited parts warranty.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DRA5H48M1A
specs product image PID-143163
General Information
Type
Outdoor Condenser
Product Line
Sirius Heat
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Installation Location
Outdoor
UPC
781889905654
Performance
Cooling BTU
48000
Heating BTU
49000
Maximum Air Flow
4500 CFM
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
65 dB
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-22 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
60 Amps
Dimensions
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
1/2 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
1/2 Inch
Product Height
52 1/2 Inches
Product Width
37 1/2 Inches
Product Depth
16 5/16 Inches
Product Weight
238 Pounds
Certifications
ETL Listed
No
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
