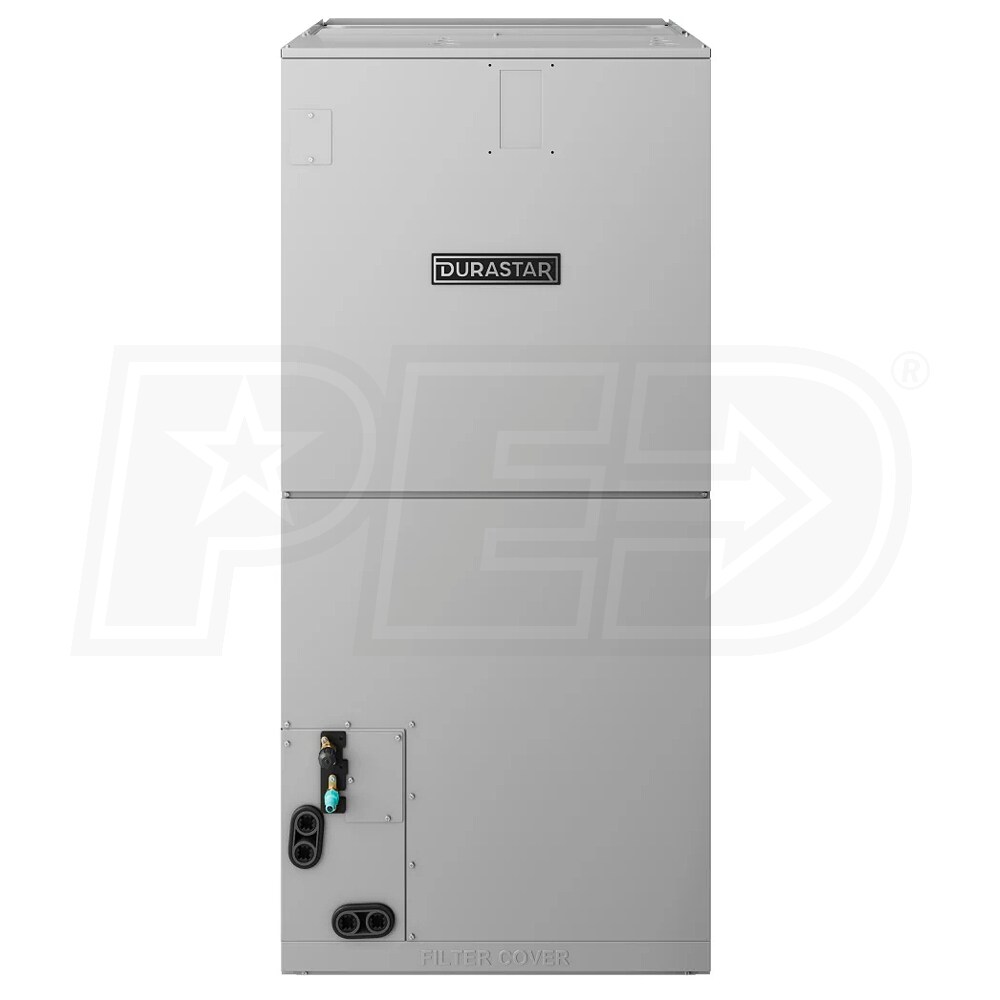

Durastar - 60k BTU - Multi-Position Air Handler - Single Zone Only

Model:

DRAM60S1A

Write A Review
$2,587.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
synchrony card logo
$46 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Durastar - 60k BTU - Multi-Position Air Handler - Single Zone Only
Durastar - 60k BTU - Multi-Position Air Handler - Single Zone Only
Model: DRAM60S1A
$2,587.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar air handlers are ideal for renovations, remodels and ducted heating and cooling needs. The DRAM air handlers from Durastar utilize variable-speed technology to optimize energy efficiency. By operating at the lowest possible power output, they not only conserve energy but also provide superior moisture management. The DRAM series is a multi-position air handler and is adaptable for various installation configurations. This multi-position air handler is for use in single zone systems.
  • Flexible Installation
  • The Durastar air handler can be installed horizontally (right or left) or vertically (up or down).
  • Energy Efficient Operation
  • These air handlers feature a high-efficiency, constant volume, variable speed motor that delivers added energy efficiency.
  • Durable Construction
  • Durastar air handlers are made with an all aluminum coils for long-lasting performance.
  • Corrosion Protection
  • Durastar air handlers feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion to improve its durability.
  • Enhanced Air Quality
  • Durastar air handlers have a built-in dehumidifier, humidifier and IAQ ports for improved indoor air quality.
  • Intelligent Airflow Technology
  • Durastar features advanced auto airflow tech, automatically adjusting operation to cool, fan, heat, or dry modes to maintain set temperature when using auto mode.
  • Compatible with 24 Volt Thermostats
  • Durastar air handlers can be controlled using third-party, Wi-Fi thermostats. They are designed to work with a range of 24 volt Wi-Fi thermostat brands including Nest, Ecobee, Honeywell and Proselect, enabling wireless control of the unit.
  • Additional Heating Option
  • Durastar multi-position air handlers offer an optional electric heater for added comfort. (Sold separately)
  • Product Includes
  • (1) DRSTAT100 Programmable Wired Thermostat
  • (1) Wireless Remote Control
  • (2) Batteries
  • (2) Cable Ties
  • (4) Foam
  • (2) Flare Nuts
  • (3) Manuals
  • Product Note
    This product requires a compatible Durastar mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Durastar products include a 10-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at durastar.com.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DRAM60S1A
specs product image PID-153828
General Information
Type
Ducted Vertical Air Handler
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
60
Installation Location
Indoor
Remote Included
Yes
UPC
781889964286
Performance
Cooling BTU
60000
Cooling Capacity
60200 BTU
Heating BTU
60000
Heating Capacity
63100 BTU
Moisture Removal
264 Pints/Hour
Maximum Air Flow
1806 CFM
Minimum Air Flow
1135 CFM
Minimum Sound Level
43.0 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52.0 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
53 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
163 Pounds
Shipping Weight
193 Pounds
Certifications
UL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
