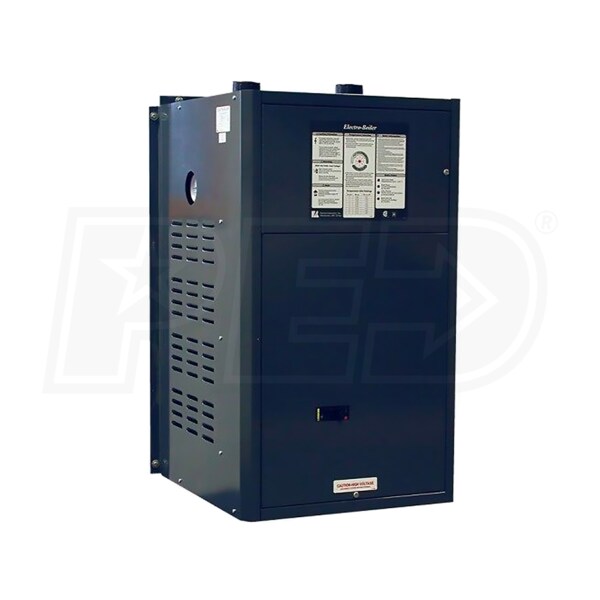

Electro Industries 92K BTU Electric Hot Water Boiler 27 kW 240V 3 Ph
Model:
EB-CX-27-24
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Electro Industries EB-CX-27-24 Features
- Controls and control wiring terminals.
- LED indicator lights.
- DC Power Relays.
- Circulator switching relay - 10-amp maximum.
- Thermostat or end switch connection (R and W).
- Load management control provisions.
- Heavy duty sheet metal enclosure.
- Supply pressure/temperature gauge.
- Safety relief valve (30 PSI).
- Supply water sensing.
- Temperature range 90 F to 185 F.
- ASME/CSA listed.
- Made in the USA.
- Factory tested.
Designed for larger hydronic heating applications, the "CX" series boilers offer many new features. Available in many voltages and capacities, the temperature sensing, relay staging and vessel configuration offer quiet operation, minimal relay cycling, consistent temperature output and most of all product reliability. More experienced installers use this boiler to avoid the extra cost of the above. As part of the EB-CX Commercial Electric Boiler Series, the hot water electric boiler offers complete application flexibility. Features - 185 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money.
Specifications
EB-CX-27-24
Overview
Product Category
Boiler
General Information
Product Line
EB-CX
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Wall
Assembly Type
Packaged
Includes Pump
No
Performance
Heating Capacity
92151 BTU
Heating Capacity (kW)
27 kW
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
240 Volts
Phase
3
Frequency
60 Hz
Current Draw
65 Amps
Dimensions
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
38 1/8 Inches
Product Width
22 Inches
Product Depth
20 9/16 Inches
Product Weight
227 Pounds
Shipping Weight
230 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heating Element Warranty
1 Year
Vessel Warranty
5 Years
