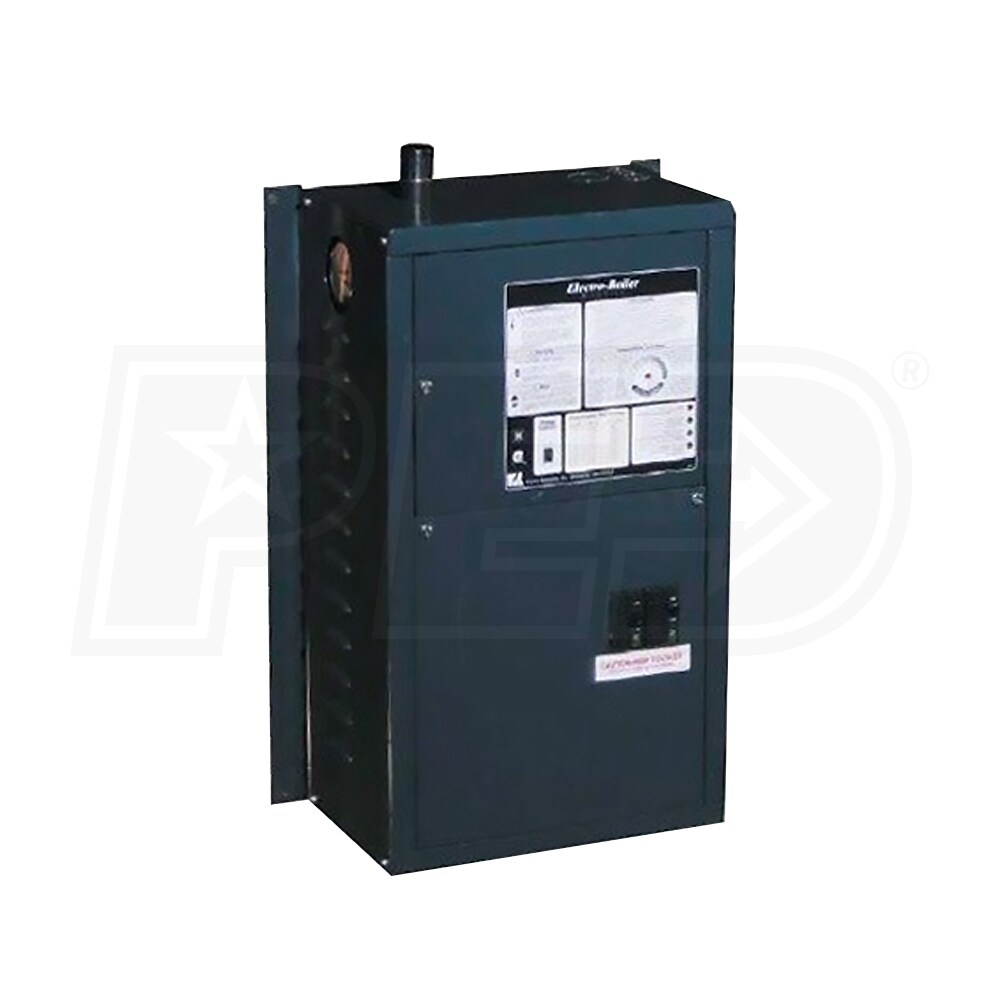

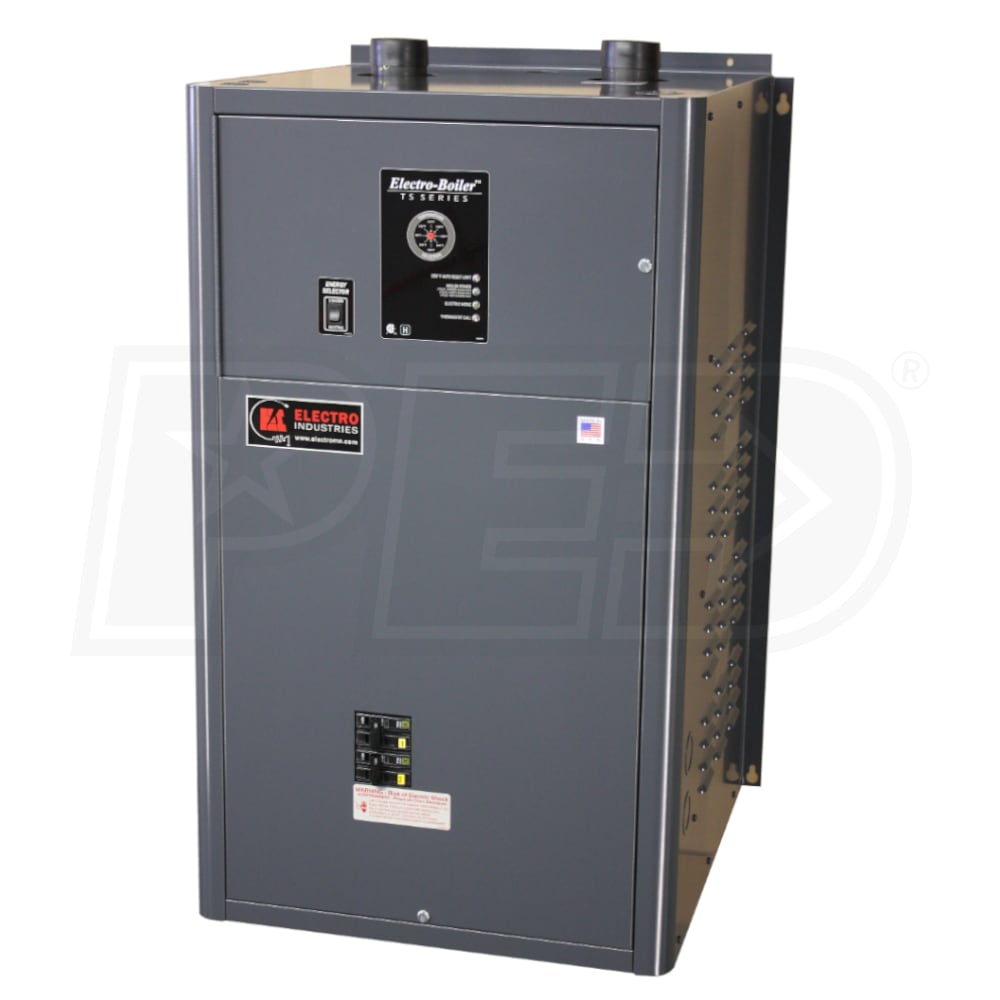

Electro Industries 68K BTU Electric Hot Water Boiler 20 kW 240V 1 Ph
Model:
EDB-T1-20-240-1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Electro Industries EDB-T1 Features
- Controls and control wiring terminals.
- LED indicator lights.
- DC Power Relays
- Circulator switching relay - 10-amp maximum
- Thermostat or end switch connection (R and W)
- Load management control provisions
- Heavy duty sheet metal enclosure
- Supply pressure/temperature gauge
- Safety relief valve (30 PSI)
- Heating elements (20-year warranty)
- 2-year parts warranty
- Supply water sensing
- Temperature range 90 F to 185 F
- ASME/CSA listings
- Made in the USA
- Factory tested.
Our new EDB-T1 Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries. As part of our EDB-T1 Electric Boiler Series, the Midsize electric boiler offers complete application flexibility. Features - 205 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money.
Specifications
EDB-T1-20-240-1
Overview
Product Category
Boiler
Additional Model Numbers
EB-MS-20, EDB-T1-20-240-1
General Information
Product Line
EDB-T1
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Assembly Type
Packaged
Includes Pump
No
Performance
Heating Capacity
68000 BTU
Heating Capacity (kW)
20 kW
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
83.33 Amps
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
28 Inches
Product Width
17 Inches
Product Depth
10 Inches
Product Weight
75 Pounds
Shipping Weight
75 Pounds
Warranty Information
Vessel Warranty
20 Years
Reviews
(7)
Electro Industries EDB-T1-20-240-1 Reviews & Ratings
Very Satisfied!
By Rhen E
Afton, Wyoming
Purchased 12/15/2019 |
Review Posted 03/15/2021
I finally got it installed, and powered up last week! It is heating my new 1 level, 3000 square foot home, with 13’ vaulted ceilings, very efficiently, and is virtually silent in my closed loop hydronic heating system. I’m very satisfied with this product and would recommend it to everyone who is considering that type of application!
Rhen E Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Features, Quiet
Cons:
Bad Instructions
Good Product
By Karen S
Nordland, Washington
Purchased 10/15/2020 |
Review Posted 11/08/2020
Received the boiler on time and unmanaged. eComfort was great to work with and made the process of determining parts needed to complete our radiant floor heat project much easier. No fault of theirs, we need to return the electric unit for a gas unit. Great company to work with.
Karen S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Price, High Quality
Easy to setup
By Robert C.
Troy, New York
Purchased 01/31/2020 |
Review Posted 04/06/2020
I use this in place of my outside wood furnace. It feeds a manifold that feeds hot water to two heat exchangers that are located in the duct work of my home and inlaw apartment furnaces for heating the places, it also heats our hot water using a heat exchanger. Works fine cost for the month of March in Brunswick NY was about 349 to run. But it is a good backup when I'm unable to fill the wood. I haven't figured out how to control unit using two thermostats.
Robert C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use
it should work
By Rhen E.
Afton, Wyoming
Purchased 12/15/2019 |
Review Posted 01/06/2020
I'm hoping it'll work for my needs. I haven't installed it yet.
Rhen E. Recommends This
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
3/5
Pros:
Easy To Use, Price, Easy To Store, Id Buy It Again
Just what was needed
By Nancy W
Rouses Point, New York
Purchased 01/25/2019 |
Review Posted 02/26/2019
With low electrical costs per kilowatt we chose to use an electric boiler for our radiant system. This boiler had an optional package which helped with the install speed. The factory tech folks were great helping us with sizing issues. So far it is fantastic.
Nancy W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
This product is better than what I expected
By Richard R.
Deer Park, Maryland
Purchased 12/08/2017 |
Review Posted 01/11/2018
I love this boiler I used it for my radiant heat in my slab it works excellent I love the warmth when I walk around in my stocking feet very efficient very easy to install
Richard R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Showed up with a few dents in it. Good boiler though
By Joel Faust
Angora, Minnesota
Purchased 10/23/2017 |
Review Posted 12/28/2017
Showed up and looked like it had a rough delivery
Joel Faust Recommends This
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
2/5
Pros:
Durable, Easy To Use, Quiet, Reliable
Cons:
Heavy, Packaging
Product Q&A
