Electro Industries EB-MX-17 - 17.5kW - 60K BTU - Hot Water Electric Boiler - 208/240V - 1 Phase
Model:
EB-MX-17
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- High Mass/Low Mass Element Modulation
- Electro EB-MX boilers feature modulating technology to accurately heat to desired temperatures while also ensuring that you aren't spending more on energy costs than you need to.
- Convenient Front Panel Temperature Knob
- A front panel temperature knob allows you to simply dial-in your desired output temperature and the TS will automatically adjust to meet your heating needs.
- LED Indicator Lights
- LED indicator lights are featured on the front panel for easy-to-read boiler status.
- ASME Certified
- TS Midsize Electro-Boilers are built in accordance to ASME Section IV standards.
The Electro Industries MX series boilers are designed for efficient and reliable radiant heating in multiple temperature and zoning applications. The MX series offers complete application flexibility with an easy access control board, built-in temperature control and high mass/low mass element modulation. All of these features add up to an electric boiler that is easier to use and install, which in turn saves you money.
Specifications
EB-MX-17
Overview
Product Category
Boiler
Additional Model Numbers
EB-MX-17, EB-MX-17
General Information
Product Line
EB-MS
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Assembly Type
Packaged
Includes Pump
No
Performance
Heating Capacity
59712 BTU
Heating Capacity (kW)
17.5 kW
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Current Draw
72.9 Amps
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
28 Inches
Product Width
17 Inches
Product Depth
10 Inches
Product Weight
75 Pounds
Shipping Weight
78 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
Reviews
Electro Industries EB-MX-17 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How to Pick the Perfect Boiler
At the heart of every boiler heating system is the boiler itself. It's responsi...
Five Ways to Improve Boiler Efficiency
When purchasing a new boiler for your home, efficiency is the name of the game....
Hydronic System Accessory Guide
How warm does a coat keep you without gloves and a hat? Accessories are sometim...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

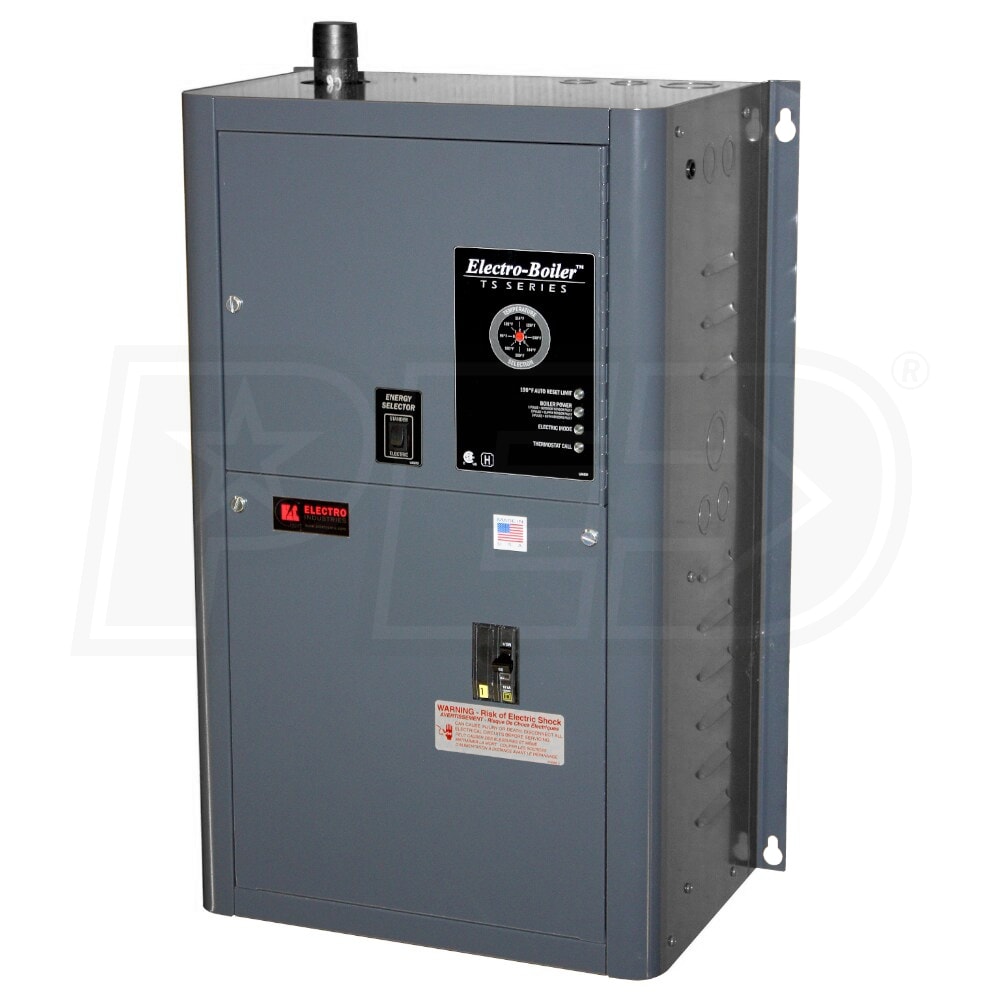

Electro Industries EB-MX-17 - 17.5kW - 60K BTU - Hot Water Electric Boiler - 208/240V - 1 Phase
