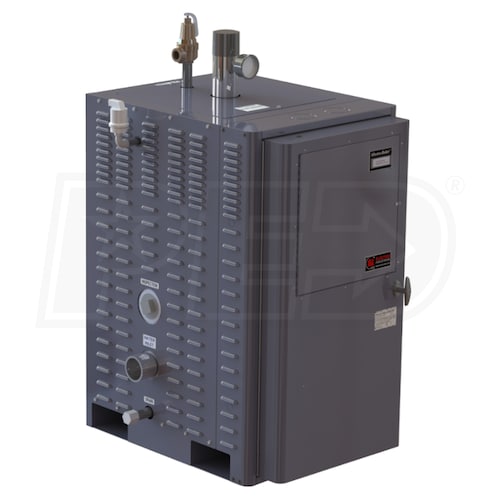

Electro Industries 1024K BTU Electric Hot Water Boiler 300 kW 480V 3Ph
Model:
EB-NB-300-480
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Electro Industries EB-NB-300-480 Features
- Outstanding 100% Efficiency.
- ASME and CSA/UL listed.
- Vessel boasts a large 40-gallon capacity.
- Outdoor reset.
- Lasting Performance.
- Disconnect circuit breakers for each heating element.
- Pressure vessel built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code.
- Compact, can easily fit through service doors.
- Reliable Safety.
- No minimum return water temperature required.
- 0-10VDC terminal enabling control of boiler via building automation system, etc.
- Software and interface cable for setup, monitoring, and troubleshooting.
- Product Includes
- Circuit breakers, each stage.
- Manual reset hi-limit - 220 F.
- Auto reset limit control - 210 F.
- Low water cut-off with manual reset.
- ASME pressure relief valve, 30 psi.
- Pressure/temperature gauge.
- Drain pipe.
- 3 Inch NPT inlet and outlet, with inspection opening.
- Incoloy sheathed heating elements.
- Built-in load management controls, vessel top screw-in.
- Staging indicator lights, at contactor.
- Main supply circuit lugs.
- Safety door interlock and lockable door latch.
Designed for larger hydronic heating applications, our Industrial Electric Boilers series boilers offer many new features. Available in many voltages(208V, 240V, 480V, 600V) and capacities(204,000 BTU/h to 1,023,900 BTU/h), the temperature sensing, relay staging and vessel configuration offer quiet operation, minimal relay cycling, consistent temperature output and most of all product reliability. Safety is one major benefit of these boilers. Several state electrical jurisdictions are requiring the Bender Insulation Monitor device (ground fault) for increased operating safety, personal protection and reliability of the boiler. Secondly, there are individual circuit breakers for each heating element, further increasing the safety and reliability of our boilers. Each boiler also includes built-in digital supply, return, and outdoor temperature sensors, enabling you to internally set and maintain the correct system design temperature, simplifying the installation process.
Specifications
EB-NB-300-480
Overview
Product Category
Boiler
General Information
Product Line
EB-NB
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Includes Pump
No
Assembly Type
Packaged
Performance
Heating Capacity
1023900 BTU
Heating Capacity (kW)
300 kW
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
362 Amps
Dimensions
Supply Connection
3 Inches
Return Connection
3 Inches
Product Height
56 Inches
Product Width
38 Inches
Product Depth
29 1/8 Inches
Product Weight
710 Pounds
Shipping Weight
750 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
5 Years
